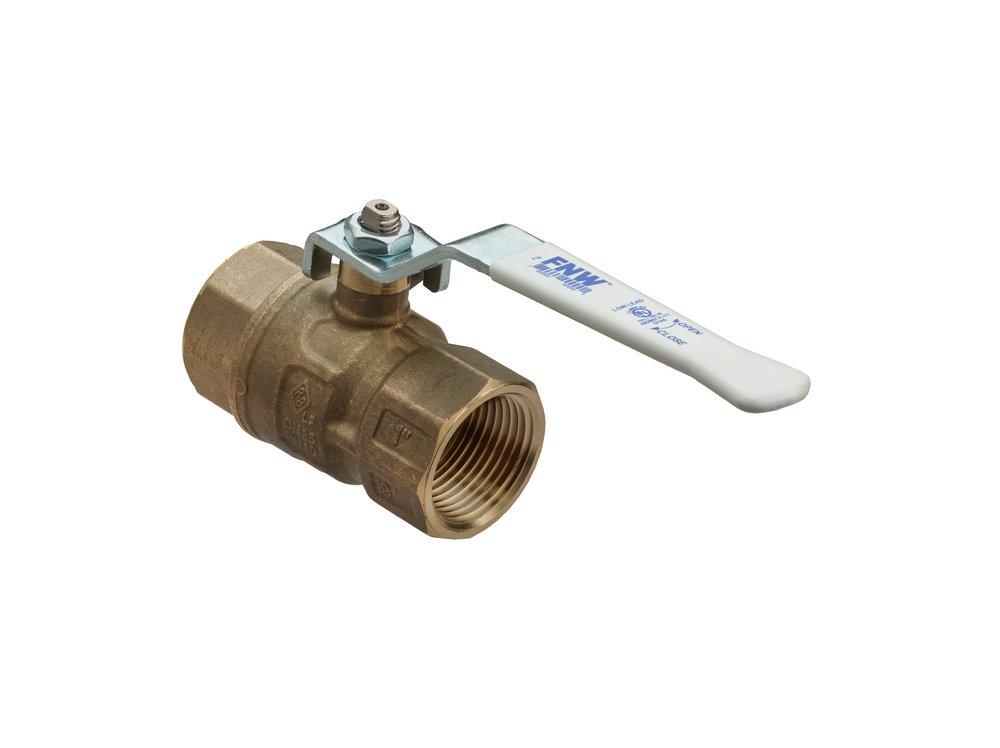

1/2 in. Forged Bronze Full Port FPT 600# Ball Valve
FNW®
Figure X450 1/2 in. Forged Bronze Full Port FPT 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 50 Case: 100 Pallet: 3500Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
Figure X450
1/2 in. Forged Bronze Full Port FPT 600# Ball Valve
FNWX450D
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- 1/2 in. bronze ball valve
- End Connections: Threaded
- Valve Length: 2.22 in.
- Valve Pressure Class: 600#
- Recommended Application: Water, oil, gas
- NSF 372, NSF 61
- ANSI B1.20.1
- 100% Electronically Tested in Open & Closed Position at 80 PSI
- 400 PSI maximum for FM approved applications
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-11/50 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
1/2 in
Weight
0.42 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure X450
Handle Material
Steel
Material
Forged Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
149
Minimum Temperature
-40
Pressure - High
600
Warranty & Product Information
ANSI
ANSI B1.20.1
ASME
ASME B16.33, ASME B16.44
CSA Certified
CSA 9.1
FM Approved
Yes
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
MSS
MSS SP-110
NSF
NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Potable Water, Oil, Gas
UL Listed
UL 125
UPC
781889388730
