3/4 in. Forged Bronze Full Port FPT 600# Ball Valve

FNW®

Figure X450 3/4 in. Forged Bronze Full Port FPT 600# Ball Valve

  • Fast #
  • Part #FNWX450F
  • Item #8127623
  • Manufacturer Part #FNWX450F
5 out of 5 Customer Rating
Brand image

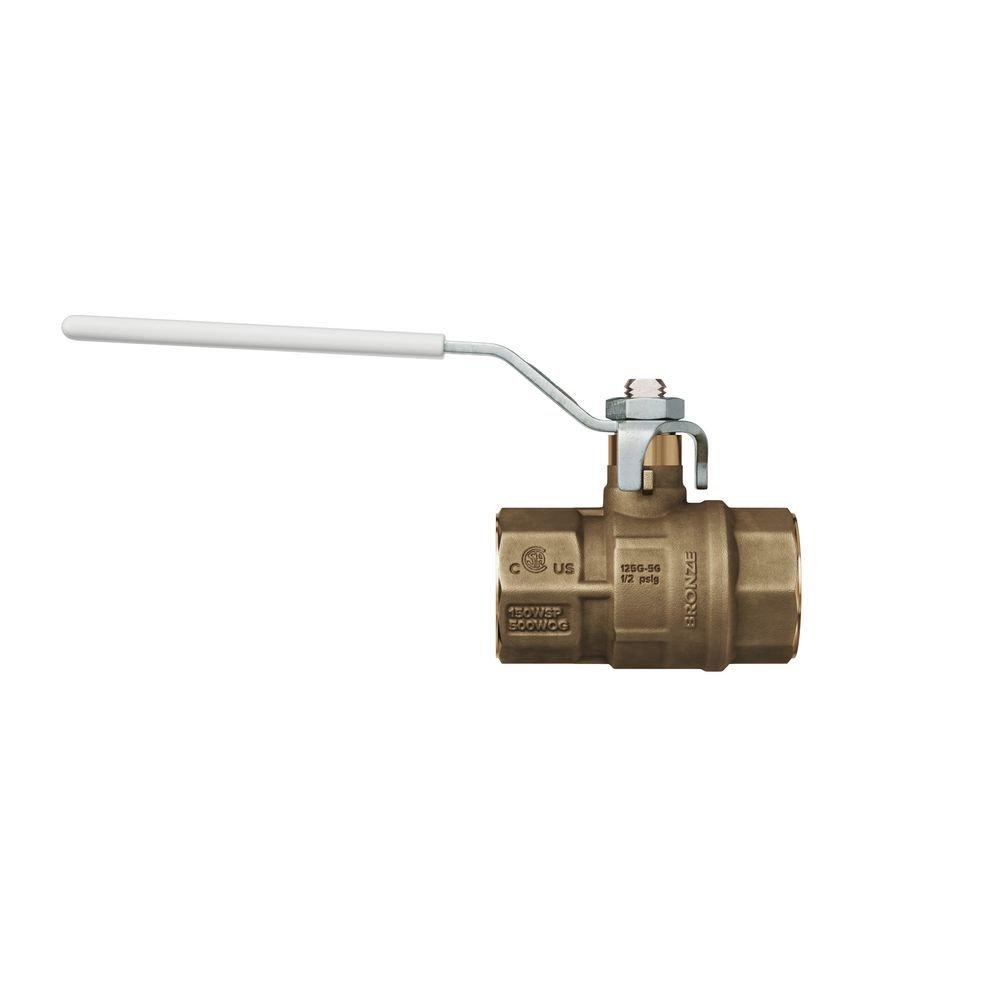

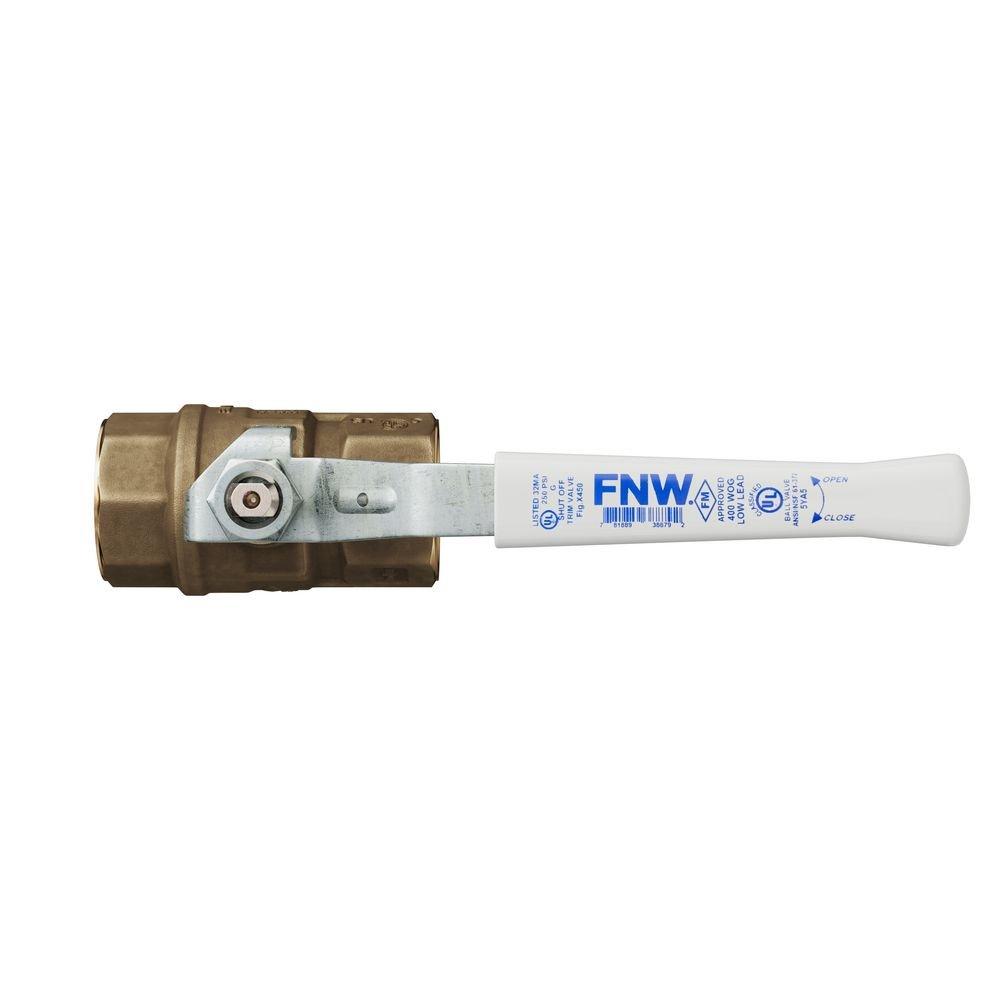

FNW® Forged Bronze Full Port Threaded 600# Ball Valve
FNW® Forged Bronze Full Port Threaded 600# Ball Valve
FNW® Forged Bronze Full Port Threaded 600# Ball Valve
FNW® Forged Bronze Full Port Threaded 600# Ball Valve
FNW® Forged Bronze Full Port Threaded 600# Ball Valve
FNW® Forged Bronze Full Port Threaded 600# Ball Valve
FNW®

Figure X450 3/4 in. Forged Bronze Full Port FPT 600# Ball Valve

  • Fast #
  • Part #FNWX450F
  • Item #8127623
  • Manufacturer Part #FNWX450F
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 25 Case: 50 Pallet: 1750
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • 3/4 in. bronze ball valve
  • End Connections: Threaded
  • Valve Length: 2.46 in.
  • Valve Pressure Class: 600#
  • Recommended Application: Water, oil, gas
  • NSF 372, NSF 61
  • ANSI B1.20.1
  • 100% Electronically Tested in Open & Closed Position at 80 PSI
  • 400 PSI maximum for FM approved applications
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-23/50 in
Pressure Class
600#
Pressure - Maximum
600 psi
Valve Size
3/4 in
Weight
0.69 lb
Characteristics & Features
Clean Bagged
No
Collection
Figure X450
Handle Material
Steel
Material
Forged Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
149
Minimum Temperature
-40
Pressure - High
600
Warranty & Product Information
ANSI
ANSI 61, ANSI B1.20.1, ANSI Z21.15
ASME
ASME B16.33, ASME B16.38, ASME B16.44
CSA Certified
CSA Class 3371 1988, CSA Class 3371 1990, CSA Class 3371 1992, CSA Class 3371 2008, CSA Class 3371 2010, CSA Class 3371 2012
FM Approved
Yes
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Potable Water, Oil, Gas
UL Listed
UL 125
UPC
781889388815
