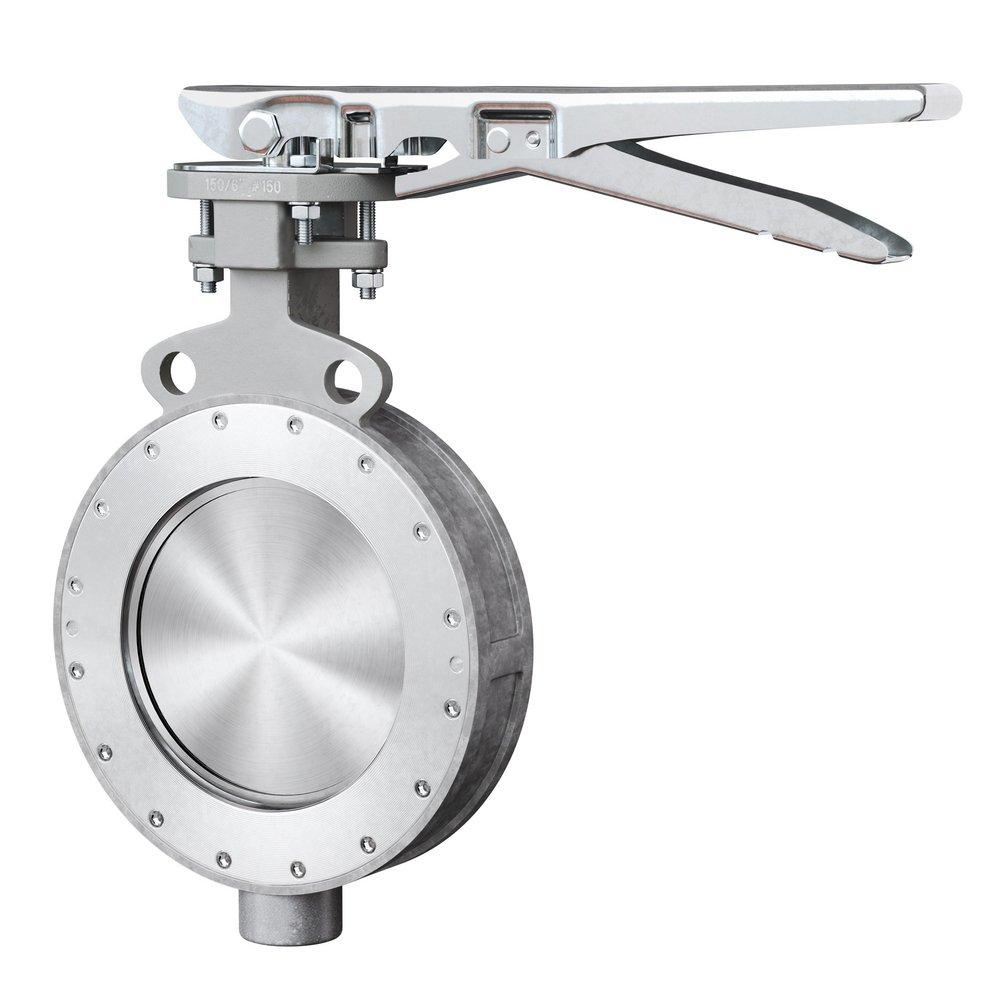

3 in. Stainless Steel High Performance Lever Operated Lug Butterfly Valve
FNW®
HPA Series 3 in. Stainless Steel High Performance Lever Operated Lug Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 88Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
FNW®
HPA Series
3 in. Stainless Steel High Performance Lever Operated Lug Butterfly Valve
FNWHPA1LSTLM
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- High performance butterfly valve
- Bi-directional bubble-tight shutoff
- Double off-set configuration with conical angled disc
- Dead-end service rated to full 285 psi
- Low maintenance
- Suitable for saturated steam service to 150 psi
- Manufactured in ISO 9001 facility
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Length
1-22/25 in
Pressure Class
150#
Pressure - Maximum
435 psi
Valve Size
3 in
Width
5-59/100 in
Characteristics & Features
Clean Bagged
No
Collection
HPA Series
Valve Body Material
Stainless Steel
Valve Body Style
Lug
Valve Disc Material
Stainless Steel
Valve Operator
Lever Handle
Valve Seat Material
RPTFE
Valve Stem
Blowout-proof
Valve Type
Butterfly Valve
Electrical & Operational Information
Maximum Temperature
500
Minimum Temperature
-20
Warranty & Product Information
ANSI
ANSI B16.34
API
API 598, API 609
ASME
ASME B16.34, ASME B16.5
ASTM
ASTM A351
FM Approved
No
IAPMO Listed
No
ISO
ISO 5211, ISO 9001
MSS
MSS SP-67
NSF Certified
No
Recommended Valve Application
Water
UL Listed
No
UPC
781889318799
