12 in. Mechanical Joint 305# Ductile Iron Joint Restraint
You last purchased this on
Ford Meter Box

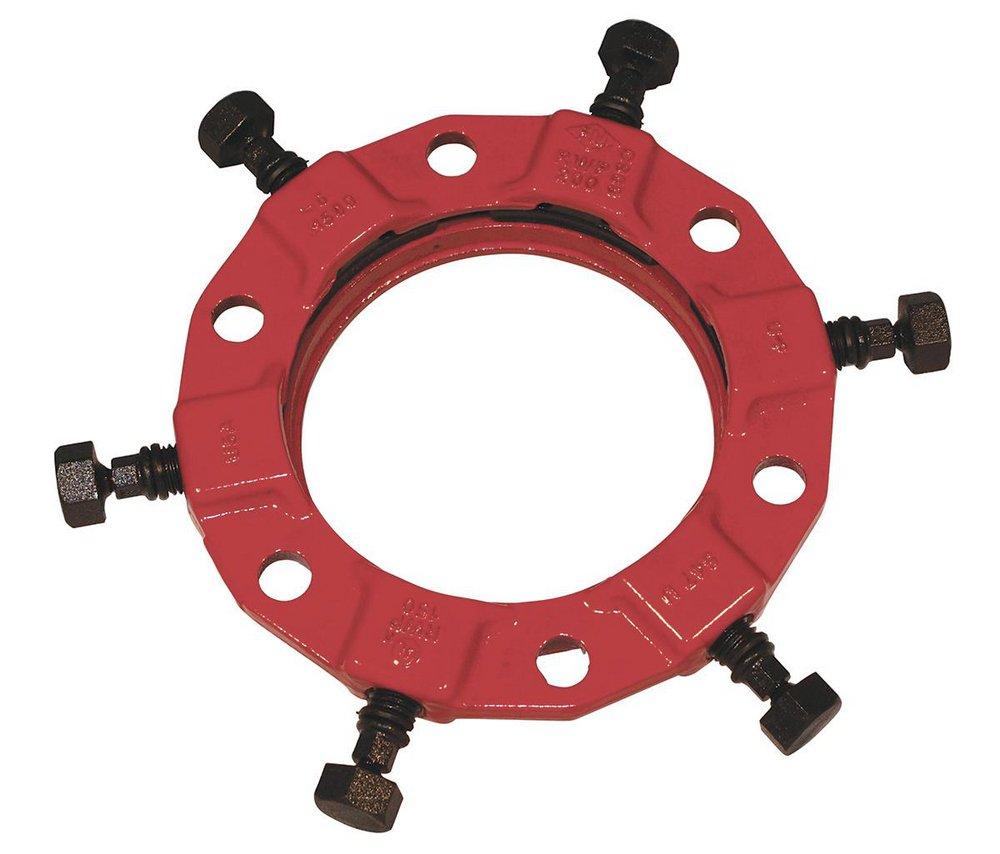

Uni-Flange® 12 in. Mechanical Joint 305# Ductile Iron Joint Restraint
Purchase history
Ford Meter Box
Uni-Flange®
12 in. Mechanical Joint 305# Ductile Iron Joint Restraint
UFR1500-12-I
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Full circle contact and support of the pipe wall. The Series 1500 can be used on C900, C909, ASTM D2241 IPS PVC and HDPE without any point loading
- Auto-Turk actuating screws with heads specially designed to twist off at the correct installation torque, leaving hex head for future system maintenance or removal
- Series 1500 eliminates the need to pour expensive and time consuming concrete thrust blocks
- Restraining segments are mechanically retained in pockets
- Gland, screws and segments are protected with black Armor guard e-coat
- Gland colored red for identification purposes
Specifications
- ANSI:
- ANSI A21.11, ANSI C111
- ASTM:
- ASTM A-536 Grade 65-45-12
- AWWA:
- AWWA A-21.11, AWWA C-111
- Application:
- HDPE Pipe, IPS Pipe, Mechanical Joint, PVC Pipe
- Coating:
- Armorguard E-Coat
- Collection:
- Uni-Flange®
- End Connection 1:
- Wedge
- End Connections:
- Wedge
- FM Approved:
- No
- Fits Pipe Size:
- 12 in
- Height:
- 21-1/2 in
- Material:
- Ductile Iron
- NSF Certified:
- No
- Origin:
- Global
- Product Type:
- Joint Restraint
- Proposition 65:
- WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
- Range (in):
- 12.50 in - 13.20 in
- UL Listed:
- No
- Weight:
- 29 lb
