1/4 in. Forged Steel Flanged Swing Check Valve

Forum Energy Technologies

DSI® 1/4 in. Forged Steel Flanged Swing Check Valve

  • Fast #
  • Part #D2431A818B
  • Item #7548910
  • Manufacturer Part #DSI2431A818BI
4.1 out of 5 Customer Rating
Brand image

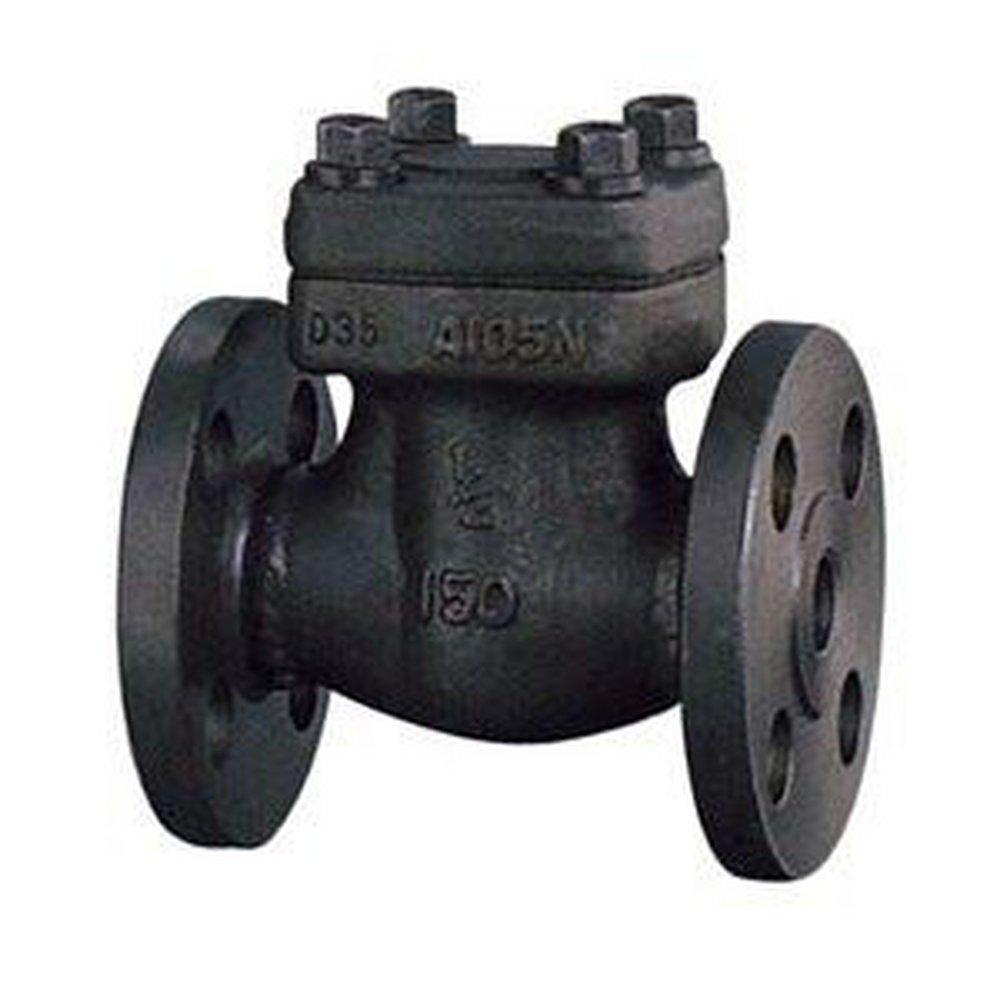

Forum Energy Technologies Forged Steel Flanged Swing Check Valve
Forum Energy Technologies Forged Steel Flanged Swing Check Valve
Forum Energy Technologies

DSI® 1/4 in. Forged Steel Flanged Swing Check Valve

  • Fast #
  • Part #D2431A818B
  • Item #7548910
  • Manufacturer Part #DSI2431A818BI
4.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1
Unavailable
Looking for compatible parts?

Product Details

Product Description
  • All DSI® forged carbon steel valves maintain a .22% maximum carbon content and are normalized to further refine the grain and homogenize the microstructure.
  • All valves meet NACE conformance.
  • DSI® forged steel valves come standard with a Stellite® #6 seating surface. The Stellite® #6 is applied by an automatic GTAW process, maintaining a minimum thickness of 0.05 inches.
  • Valves are furnished with non-asbestos Grafoil® packing. The top and bottom wiper rings are braided graphite, while the center rings are die-formed Grafoil® containing an inorganic passivating inhibitor for corrosion and oxidation resistance.
  • The DSI® bolted bonnet and bolted cap valves not utilizing a ring joint connection are fitted with a 316 stainless steel spiral wound Grafoil® filled gasket.
  • All flanged DSI® forged steel valves through class 2500 are integrally forged to avoid the potential leak path that exist when welding flanges onto valve bodies.
  • Welded bonnet valves are initially joined by threading the body-bonnet joint together, then welding by automatic GMAW. All welds are inspected after welding assuring quality control.
  • DSI® forged steel valves contain no copper bearing alloys.
  • Every DSI® forged steel valve is manufactured with a two-piece self-aligning gland flange assembly which ensures even compression of the stuffing box during assembly and repacking.
  • Requires Certification

Documents

SPECIFICATION
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Pressure Class
300#
Valve Size
1/4 in
Characteristics & Features
Collection
DSI®
Material
Forged Steel
Valve Body Material
Forged Steel
Valve Body Style
Swing
Valve Bonnet Type
Bolted
Valve Disc Material
Carbon Steel
Valve Port Opening
Dual Port
Valve Type
Swing Check Valve
Warranty & Product Information
ANSI
ANSI B16.11, ANSI B16.34, ANSI B16.5
API
API 602
ASME
ASME B16.11, ASME B16.34, ASME B16.5
FM Approved
No
IAPMO Listed
No
MSS
MSS SP-25, MSS SP-6
NSF Certified
No
UL Listed
No
