4 in. Cast Brass Grooved Spring Check Valve
FPPI®

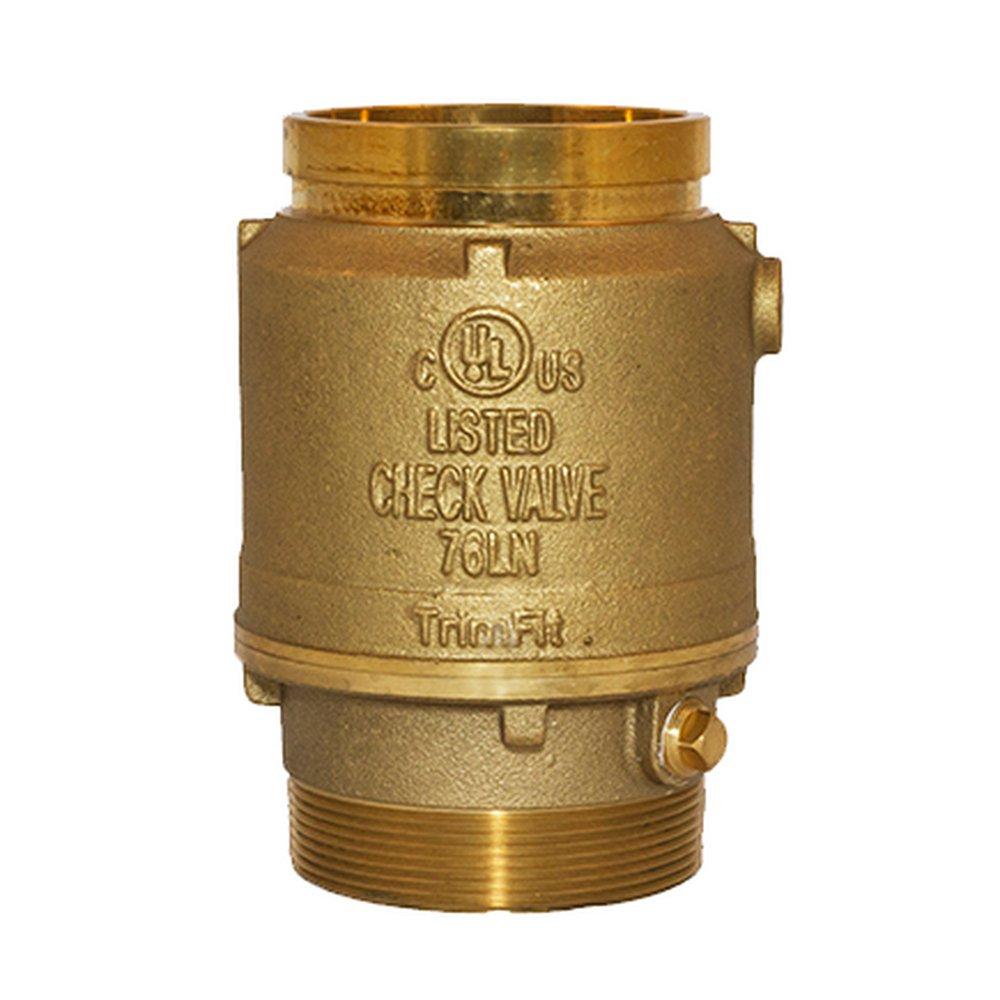

Fig 09-572 4 in. Cast Brass Grooved Spring Check Valve
Points
Package Quantity Info:
Each: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
FPPI®
Fig 09-572
4 in. Cast Brass Grooved Spring Check Valve
4380003420
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Brass Body (C38000) for superior corrosion resistance
- Listed valves available in the following sizes: 1 ½”**, 2”, 2 ½”, 3” and 4”
- Available grooved, threaded, or thread by groove reducing the need for additional fittings and minimizing installation time
- Pressure rated to up to 300 psi
- Tapped and plugged for easy use of accessories such as ball drips or gauges
Documents
Specifications
- ASTM:
- ASTM C-37700, ASTM C-86300
- Brand Model Compatibility:
- 09-572
- CSA Certified:
- No
- Collection:
- Fig 09-572
- End Connection 1:
- Grooved
- End Connection 2:
- Grooved
- End Connections:
- Grooved
- FM Approved:
- Yes
- IAPMO Listed:
- No
- Installation Type:
- Horizontal Mount, Vertical Mount
- Length:
- 8
- Material:
- Cast Brass
- Material Type:
- C38000
- NSF Certified:
- No
- Origin:
- Global
- Pressure - High:
- 300
- Pressure - Maximum:
- 300 psi
- Pressure Class:
- 300#
- Recommended Valve Application:
- Fire Protection
- UL Listed:
- Yes
- UPC:
- 879898005325
- Valve Body Material:
- Cast Brass
- Valve Body Style:
- Spring
- Valve Seat Material:
- EPDM
- Valve Size:
- 4 in
- Valve Type:
- Spring Check Valve
- Weight:
- 11.54
- Width:
- 5-5/8
