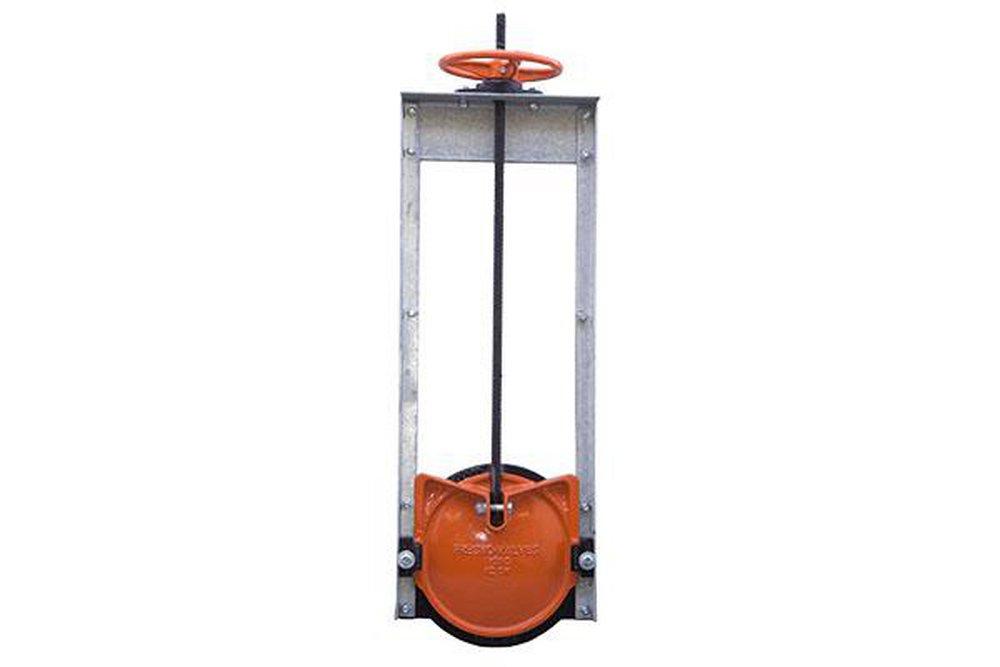

12 in. Cast Iron Spigot Slide Gate Valve
Fresno Valves & Castings
Series 6600 12 in. Cast Iron Spigot Slide Gate Valve
Package Quantity Info:
Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Fresno Valves & Castings
Series 6600
12 in. Cast Iron Spigot Slide Gate Valve
F066-12G072
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- One-piece adjustable wedges ensure uniform wedging action
- Roll threaded rising stem provides ease of operation and extended stem life
- Rugged cast iron seat and cover
- Available for mounting to headwalls or corrugated pipe
- Precision machined seating surfaces
Specifications
- ASTM:
- ASTM A126 Class B, ASTM A307, ASTM A164, ASTM A108 Grade 1045, ASTM A36
- Collection:
- Series 6600
- End Connection 1:
- Spigot
- End Connection 2:
- Spigot
- End Connections:
- Spigot
- FM Approved:
- No
- Handle Material:
- Cast Iron
- Height:
- 24 in
- Length:
- 15-3/10 in
- Material:
- Cast Iron
- NSF Certified:
- No
- Recommended Valve Application:
- Corrugated Pipe, Oil, Food & Beverage, Water
- UL Listed:
- No
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- 1 piece
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Seat Material:
- Cast Iron
- Valve Size:
- 12 in
- Valve Stem:
- Rising
- Valve Type:
- Slide Gate Valve
