4 Ton 14.3 SEER2 7.5 HSPF2 Heat Pump 208/230V Single Phase R-410A

Friedrich Air Conditioning

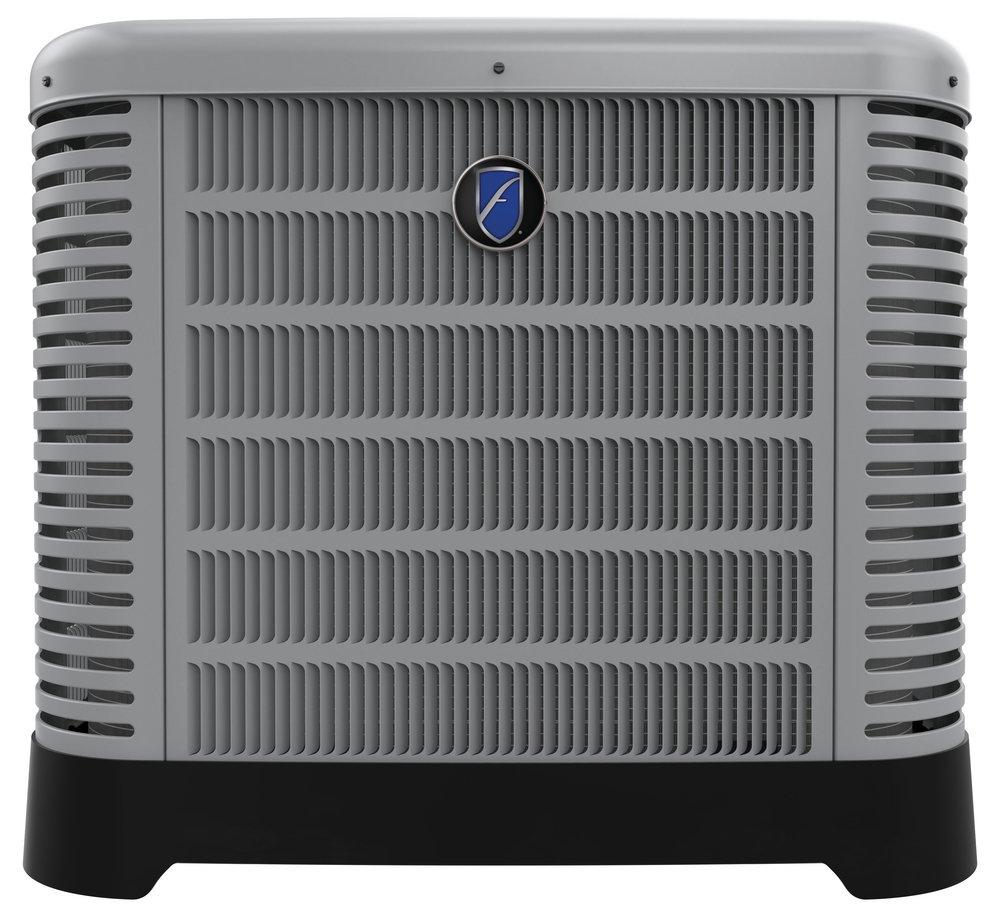

Endeavor™ 4 Ton 14.3 SEER2 7.5 HSPF2 Heat Pump 208/230V Single Phase R-410A

  • Fast #
  • Part #FRP14AZ48AJ2NA
  • Item #10209289
  • Manufacturer Part #FRP14AZ48AJ2NA
4.6 out of 5 Customer Rating
Brand image
Friedrich Air Conditioning 14.3 SEER2 7.5 HSPF2 Heat Pump 208/230V Single Phase R-410A
Friedrich Air Conditioning 14.3 SEER2 7.5 HSPF2 Heat Pump 208/230V Single Phase R-410A
Friedrich Air Conditioning

Endeavor™ 4 Ton 14.3 SEER2 7.5 HSPF2 Heat Pump 208/230V Single Phase R-410A

  • Fast #
  • Part #FRP14AZ48AJ2NA
  • Item #10209289
  • Manufacturer Part #FRP14AZ48AJ2NA
4.6 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
Looking for compatible parts?

Product Details

Product Description
  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Swept wing fan technology: Features quieter operation and improved unit acoustics
  • Two-stage scroll compressor: Features two speeds (high and low) of cooling and heating, providing more precise temperature control, lower humidity and greater efficiency when compared to single stage compressors
  • Inverted reversing valve: Allows for faster heat transfer with gravity assist shifting and reduced joint stress for increased reliability
  • PlusOne® expanded valve space: 3 in. - 4 in. - 5 in. service valve space-provides a minimum working area of 27-square inches for easier access
  • PlusOne® triple service access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels-makes repairs easier and faster
  • Requires Certification
Dimensions & Measurements
CFM
1450 ft3/min
Depth
33-3/4 in
Height
35 in
Liquid Line (OD)
3/8 in
Max CFM
4096 cfm
Suction Line (OD)
7/8 in
Tonnage
4 Ton
Weight
238 lb
Width
33-3/4 in
Characteristics & Features
A2L Compatible
No
Auto Switching Heat
Yes
Coil Type
Condenser
Collection
Endeavor™
Communicating
Non-Communicating
Compressor Type
Scroll
EER2
9
EER2 Range
0 - 10.5
Factory Std. Refrigerant Charge
148 oz
HSPF2 Range
7.5 - 25.0
Proposition 65
WARNING:This product contains a chemical known to the State of California to cause cancer
Refrigerant
R-410A
Refrigeration Control Type
TXV
SEER2
14.3
SEER2 Range
14.3 - 15.1
Sound Blanket
No
Electrical & Operational Information
AMP
1, 2.56, 22, 29
BTU
48000
BTU Cooling Rating
45500 Btu/h
BTU Heat Rating
45500 Btu/h
Compressor Stages
Two Stage
Decibel Rating (dB)
74 dB
Horsepower
1/5 hp
Max Fuse Size
35
MBH
48
Phase
Single Phase
Power Source
Electric
Volts
208/230V
Watts
236 W
Warranty & Product Information
Application
Residential
CEC Compliant
For Sale in CA
Energy Star Compliant
No
HSPF2
7.5
UL Listed
Yes
UPC
662021657528
