12.5 Ton - 2-Stage - Commercial Packaged Gas/Electric Unit - 225K BTU Heat - 208/230V - 3 Phase - R-410A

Friedrich Air Conditioning

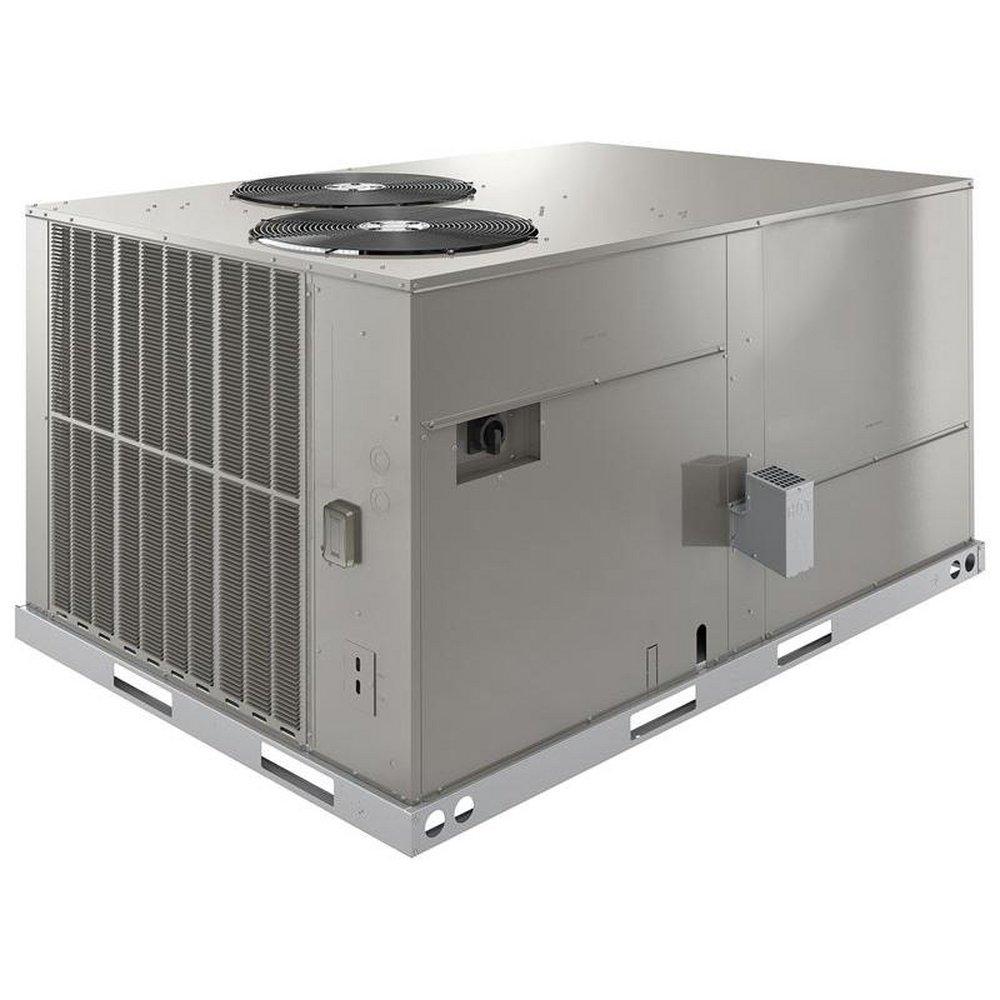

Prestige RGEDZT Series 12.5 Ton - 2-Stage - Commercial Packaged Gas/Electric Unit - 225K BTU Heat - 208/230V - 3 Phase - R-410A

  • Fast #
  • Part #FRGEDZT150ACG22BAA
  • Item #10398889
  • Manufacturer Part #RGEDZT150ACG22BAA
4.1 out of 5 Customer Rating
Brand image
CCY 12.5T G/E PKG 3PH 230V VFD 225K
CCY 12.5T G/E PKG 3PH 230V VFD 225K
Friedrich Air Conditioning

Prestige RGEDZT Series 12.5 Ton - 2-Stage - Commercial Packaged Gas/Electric Unit - 225K BTU Heat - 208/230V - 3 Phase - R-410A

  • Fast #
  • Part #FRGEDZT150ACG22BAA
  • Item #10398889
  • Manufacturer Part #RGEDZT150ACG22BAA
4.1 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Factory charged with R-410A HFC refrigerant
  • Scroll compressor with internal line break overload and high-pressure protection
  • Models RGEDZT have two stage compressor
  • Convertible airflow - vertical down flow or horizontal side flow
  • Forkable base rails for easy handling and lifting
  • Cooling operation up to 125 Deg F ambient
  • Two stage gas heat input with direct spark ignition system, solid state furnace controls and optimized induced draft
  • Requires Certification

Specifications

A2L Compatible:
No
Application:
Commercial
BTU:
225000
BTU Cooling Rating:
148000 Btu/h
BTU Heat Rating:
225000 Btu/h
Blower Type:
Direct Drive
CEC Compliant:
For Sale in CA
CFM:
5000
Coil Type:
Micro-channel
Collection:
Prestige RGEDZT Series
Compressor Stages:
Two Stage
Compressor Type:
Scroll
Decibel Rating (dB):
88 dB
Depth:
59-1/2
EER:
10.8
Factory Std. Refrigerant Charge:
186
Fuel Type:
Natural Gas
Gas Connection Size:
3/4
Gas Valve Stages:
Variable (Modulating)
Height:
60
Horsepower:
0.75 hp
IEER:
14
IEER Range:
14.0 - 99.9
Ignition System:
Direct Spark Ignition
Input (MBH):
225 MBH
Length:
59-1/2
MBH:
225
Max CFM:
5000
Number of Compressors:
2
Number of Condenser Fan Motors:
2
Phase:
Three Phase
RPM:
1725
Refrigerant:
R-410A
Refrigeration Control Type:
TXV
Stages:
Two
Tonnage:
12.5 Ton
Type:
FRGEDZT150ACG22BAA
Volts:
208/230V
Watts:
13.69
Weight:
1094
Width:
90-1/8
