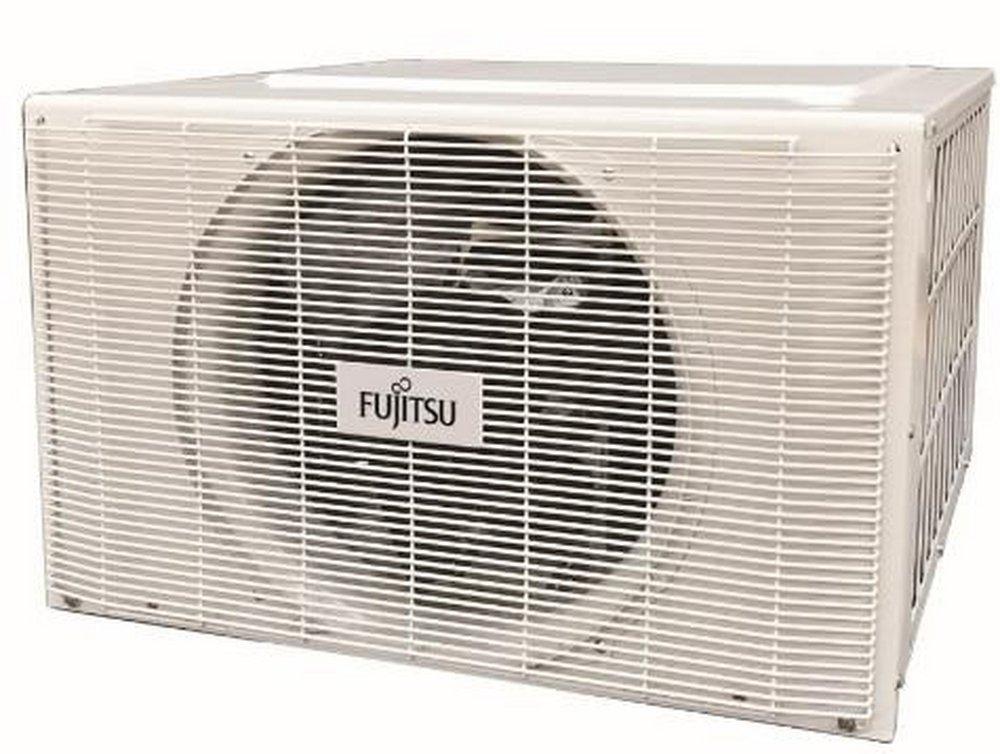

9000 BTU Single Zone Mini-Split 208/230V
Fujitsu
9000 BTU Single Zone Mini-Split 208/230V
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Fujitsu
9000 BTU Single Zone Mini-Split 208/230V
AOUH09LEAS1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area
- Ideal replacement for PTAC systems
- Significant energy savings
- Lower sound levels - up to 87% quieter than a PTAC
- 7 louver settings with auto-swing
- Wireless LAN compatible with optional wireless LAN interface UTY-TFSXF1
- Capable of being controlled through a field supplied key card switch or other sensors
- Compatible with building automation system with optional modbus or BACnet converter
- Indoor unit includes handheld remote control
- Many control options available
-
Green
Specifications
- A2L Compatible:
- No
- AMP:
- 15, 3.4, 3.7, 8.4, 9.4
- Application:
- Residential
- BTU:
- 9000
- BTU Cooling Rating:
- 9900 Btu/h
- BTU Heat Rating:
- 13000 Btu/h
- CFM:
- 453 ft3/min
- Decibel Rating (dB):
- 43 dB
- Depth:
- 19-5/16 in
- EER:
- 12.5
- EER2:
- 12.5
- Energy Star Compliant:
- Yes
- HSPF:
- 11.1
- HSPF2:
- 10.0
- Height:
- 14-5/16 in
- Indoor Outdoor:
- Outdoor
- Liquid Line (OD):
- 1/4 in
- MBH:
- 9
- Max Fuse Size:
- 15
- Phase:
- Single Phase
- Refrigerant:
- R-410A
- SEER:
- 21.3
- SEER2:
- 21.3
- Suction Line (OD):
- 3/8 in
- Tonnage:
- 1 Ton
- Volts:
- 208/230V
- Weight:
- 62 lb
- Width:
- 19-11/16 in
- Zones:
- 1
