12 Ton - Heat Pump - 460V - Three Phase - R-410A

Fujitsu

Airstage™ V-II 12 Ton - Heat Pump - 460V - Three Phase - R-410A

  • Fast #
  • Part #FAOUA144RLCVG
  • Item #5162047
  • Manufacturer Part #AOUA144RLCVG
4.2 out of 5 Customer Rating
Brand image

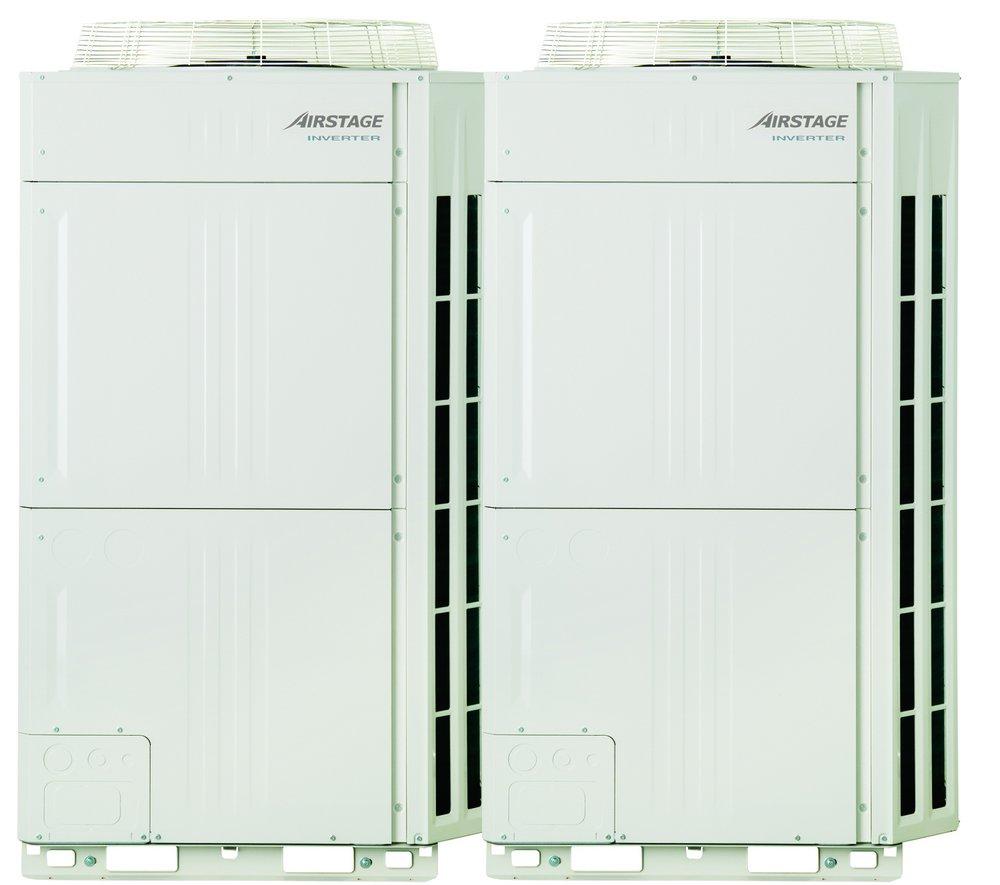

Fujitsu Beige R-410A VRF Outdoor Heat Pump
Fujitsu Beige R-410A VRF Outdoor Heat Pump
Fujitsu

Airstage™ V-II 12 Ton - Heat Pump - 460V - Three Phase - R-410A

  • Fast #
  • Part #FAOUA144RLCVG
  • Item #5162047
  • Manufacturer Part #AOUA144RLCVG
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Efficiency is substantially improved from using the high efficient motor with sophisticated driver control
  • Efficiency is substantially improved by high efficient motor with sophisticated driver control
  • High heat exchange efficiency is achieved by using an internal projection shape double pipe construction
  • High-efficiency is realized by adoption of reduced switching loss IPM
  • Large capacity high efficient DC twin rotary compressor with excellent intermediate capability
  • Heat exchange efficiency is significantly improved by the introduction of a new four-face heat exchanger that increases effective surface area
  • When multiple outdoor units are installed, the uniquely shaped front intake improves the airflow into the heat exchanger
  • Requires Certification

Specifications

AMP:
42
Auto Switching Heat:
No
BTU:
144000
BTU Cooling Rating:
144000 Btu/h
BTU Heat Rating:
162000 Btu/h
CFM:
6533 ft3/min
Collection:
Airstage™ V-II
Compressor Type:
Inverter
Decibel Rating (dB):
61 dB
Depth:
30-1/8 in
EER:
11.4
Energy Star Compliant:
No
Height:
66-9/16 in
Horsepower:
16 hp
Liquid Line (OD):
1/2 in
MBH:
144
Max CFM:
6533 cfm
Max Fuse Size:
25
Phase:
Three Phase
Power Source:
Electric
Proposition 65:
WARNING: Cancer and Reproducive harm - www.P65Warnings.ca.gov
Refrigerant:
R-410A
Sound Blanket:
No
Suction Line (OD):
1-1/8 in
Tonnage:
12 Ton
UL Listed:
No
Volts:
460V
Width:
36-5/8 in
