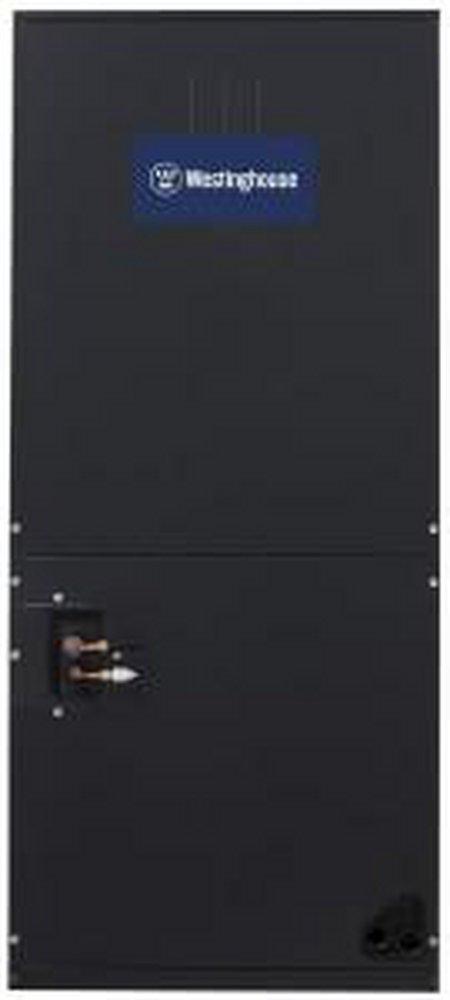

Multi-Position - Air Handler
Fujitsu
Westinghouse Multi-Position - Air Handler
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Fujitsu
Westinghouse
Multi-Position - Air Handler
WHM60DMA21S
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Up to 0.8 in-WG (200 Pa)
- Heating down to -13 Deg F(-25 Deg C)
- 3-position AHU - up, right, left
- Maximum line set length is 164 ft
- Built-in base pan heater
- Dual point power connection
Documents
Specifications
- A2L Compatible:
- No
- AMP:
- 21, 26.8
- BTU:
- 56000
- BTU Cooling Rating:
- 56000 Btu/h
- BTU Heat Rating:
- 56000 Btu/h
- CFM:
- 1706 ft3/min
- Coil Type:
- Aluminum Fin
- Collection:
- Westinghouse
- Configuration:
- Multi-Position
- Depth:
- 24 in
- EER:
- 2.5
- EER2:
- 8.3
- ETL Listed:
- Yes
- Height:
- 53-7/8 in
- Liquid Line (OD):
- 3/8 in
- MBH:
- 56
- Max CFM:
- 1706 cfm
- Phase:
- Single Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- SEER:
- 17.5
- Suction Line (OD):
- 7/8 in
- Volts:
- 208/230V
- Watts:
- 6.56 kW
- Weight:
- 187.2 lb
- Width:
- 22 in
