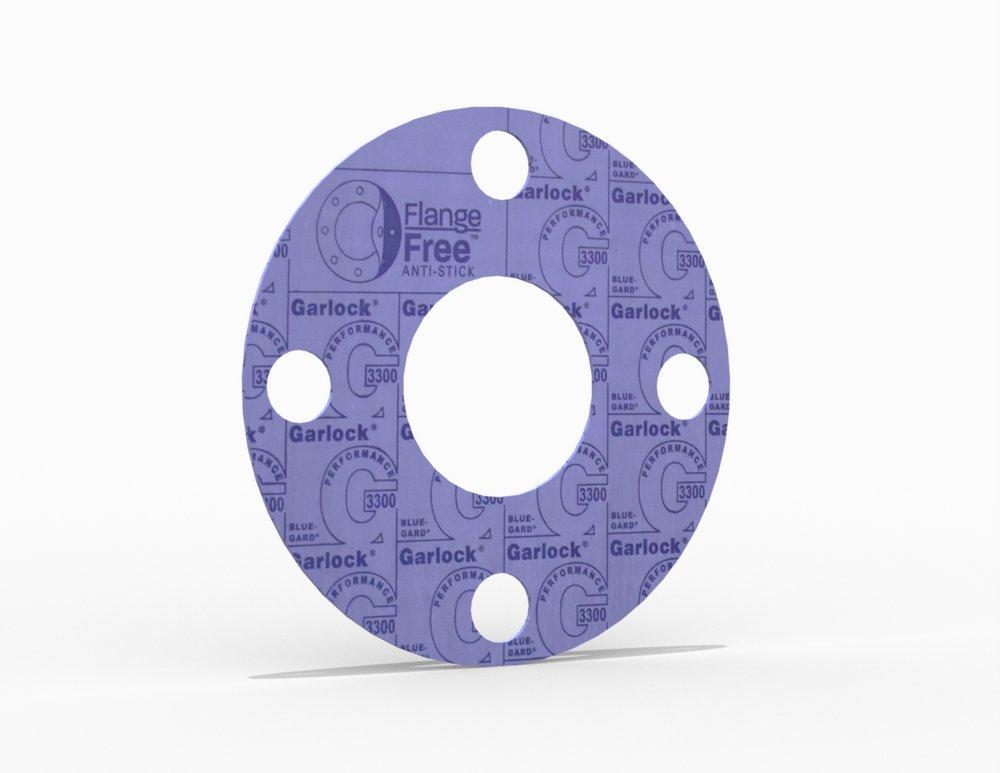

Full Face Gasket, Aramid Fiber with Neoprene Binder(CR) Neoprene(CR), 2 1/2 in. ASME B16.5 Class 150, 0.063 in. Thick, 4 Bolt Holes
Garlock
BLUE-GARD® Style 3300 Full Face Gasket, Aramid Fiber with Neoprene Binder(CR) Neoprene(CR), 2 1/2 in. ASME B16.5 Class 150, 0.063 in. Thick, 4 Bolt Holes
Package Quantity Info:
Each: 1 Inner Pack: 1Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
Garlock
BLUE-GARD® Style 3300
Full Face Gasket, Aramid Fiber with Neoprene Binder(CR) Neoprene(CR), 2 1/2 in. ASME B16.5 Class 150, 0.063 in. Thick, 4 Bolt Holes
37703-4194
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Excellent Sealability
- Improved torque retention
- Drastically lowered emissions levels
Documents
Dimensions & Measurements
Fits Pipe Size
2-1/2 in
Pressure Class
ASME B16.5 Class 150
Pressure - Maximum
1200 psi
Thickness
1/16 in
Characteristics & Features
Collection
BLUE-GARD® Style 3300
Color Finish Category
Blacks
Color Finish Name
Black
Fitting Type
Full Face Gasket
Material Type
Aramid Fiber with Neoprene Binder(CR)
Electrical & Operational Information
Maximum Temperature
700
Minimum Temperature
-100
Warranty & Product Information
Origin
Global
