8 in. 300 psi 304 Stainless Steel Long Radius Spiral Gasket with Graphite

Garlock

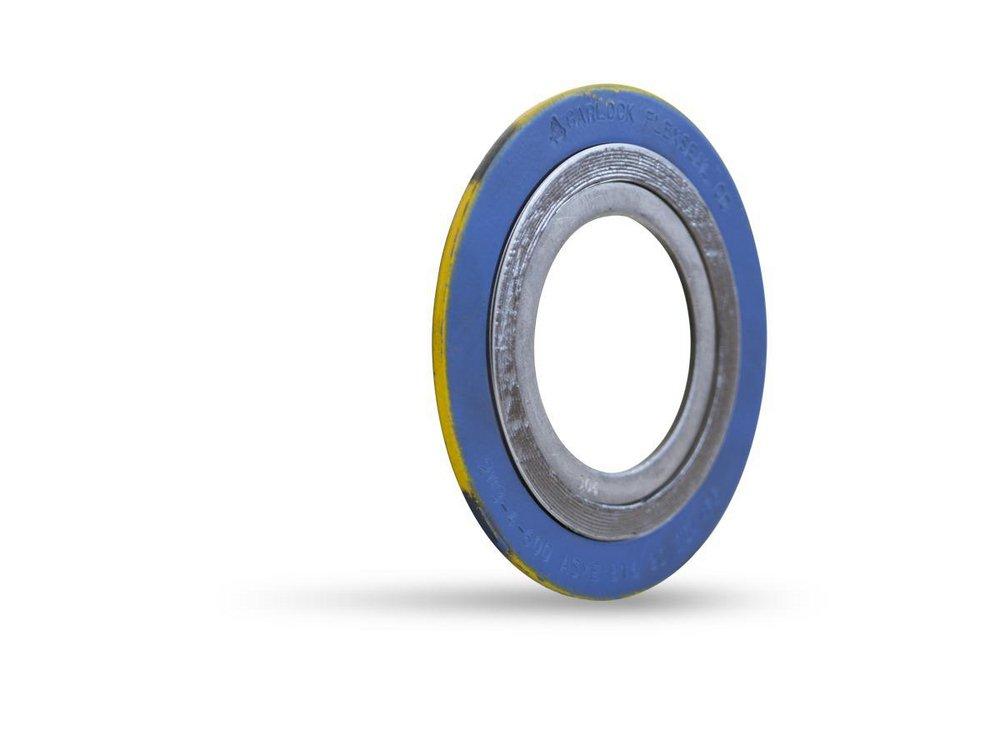

FLEXSEAL® 8 in. 300 psi 304 Stainless Steel Long Radius Spiral Gasket with Graphite

Brand image
Garlock

FLEXSEAL® 8 in. 300 psi 304 Stainless Steel Long Radius Spiral Gasket with Graphite

  • Part #SWG3004GSSIRX
  • Item #2306614
4.9 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1

Product Details

  • Durable, easy installation and removal
  • Seals pressures to flange ratings, in accordance to ASME B16.5 and 16.47
  • The FLEXSEAL® RWI features an inner ring, spiral winding, filler material, and a centering ring for use in higher pressure applications
  • Inner ring can help shield sealing elements from erosion caused by abrasive media
  • Suitable for raised face flanges up to class 2500# flanges
  • Inner rings are provided standard for ASME B16.20 unless otherwise specified by the customer
  • Guide ring simplifies centering of sealing element on the flange face
  • Suited to temperatures from cryogenic to 2000°F / 1093°C depending on metal and filler material

Documents


Specifications

ASME:
ASME B16.20, ASME B16.5
CARB OTC LEED Compliant:
No
Clean Bagged:
No
Collection:
FLEXSEAL®
Color Finish Category:
Yellows
Color Finish Name:
Yellow, Grey
Diameter - Inside 1:
8 in
Diameter - Outside:
12-13/100 in
End Connection 1:
Gasket
End Connections:
Gasket
FM Approved:
No
Fitting Size 1:
8 in
Fitting Sizes:
8 in
Fitting Type:
Spiral Wound Gasket
GSA Approved:
No
IAPMO Listed -:
No
Material:
Stainless Steel, Graphite, Carbon Steel
Material Type:
304
Maximum Temperature:
1400
Minimum Temperature:
-320
NSF Certified:
No
Origin:
Global
Pressure - Maximum:
300 psi
Pressure Class:
300#
Thickness:
0.125 in
Type:
SWG3004GSSIRX
UL Listed:
No
