Ring Gasket, PTFE with Barium Sulfate PTFE, 8 in. ASME B16.5 Class 300, 0.094 in. Thick
Garlock

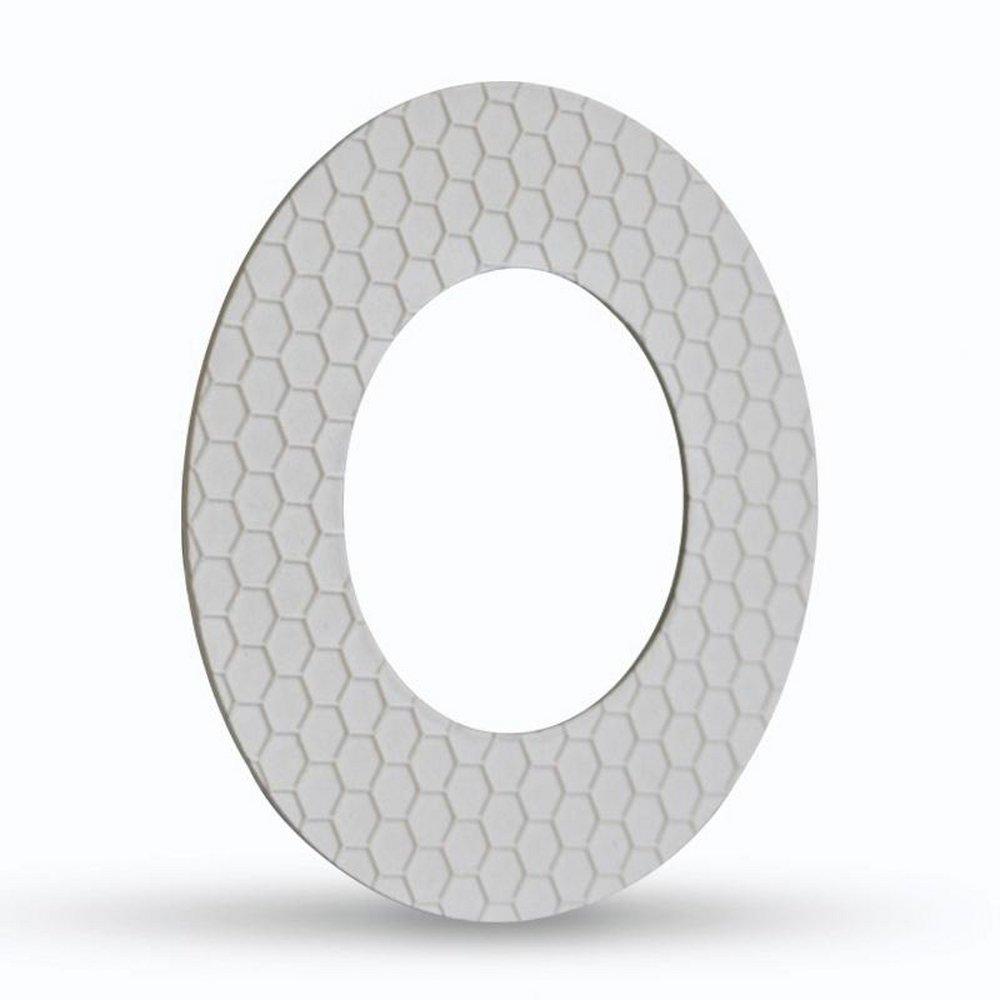

GYLON EPIX® Style 3510 EPX Ring Gasket, PTFE with Barium Sulfate PTFE, 8 in. ASME B16.5 Class 300, 0.094 in. Thick
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Garlock
GYLON EPIX® Style 3510 EPX
Ring Gasket, PTFE with Barium Sulfate PTFE, 8 in. ASME B16.5 Class 300, 0.094 in. Thick
37709EPX-R208
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- One thickness does the job of two
- Seal performance and load retention equal of 1/16 in (1.6 mm)
- Compressibility and forgiveness/conformability of 1/8 in (3.2 mm)
- Patented hex profile creates superb sealing and ability to conform to imperfect flange surfaces
- Same material as traditional GYLON®
Documents
Specifications
- ASME:
- ASME B16.5
- ASTM:
- ASTM F-36L, ASTM D-1708, ASTM F-3149, ASTM ROTT, ASTM HOBT2, ASTM F-37B
- Application:
- Chemical Processing, Food and Beverage, Mining, Pharmaceutical, Primary Metals, Water, Wastewater, Pulp and Paper, Power Generation, Nuclear
- Collection:
- GYLON EPIX® Style 3510 EPX
- Color Finish Category:
- Whites
- Color Finish Name:
- Off White
- Diameter - Inside 1:
- 8-5/8 in
- Diameter - Outside:
- 12-1/8 in
- Fits Pipe Size:
- 8 in
- Fitting Type:
- Ring Gasket
- Material:
- Plastic
- Material Type:
- PTFE with Barium Sulfate
- Maximum Temperature:
- 500
- Minimum Temperature:
- -450
- Origin:
- Global
- Pressure - Maximum:
- 1200 psi
- Pressure Class:
- ASME B16.5 Class 300
- Schedule Class:
- 300#
- Temperature Range:
- -450 to 500 Deg F
- Thickness:
- 3/32 in
