Wall Hung Toilet with Concealed Dual Flush Toilet Carrier System in White
Sigma Wall Hung Toilet with Concealed Dual Flush Toilet Carrier System in White
Frequently Purchased Together
Product Details
Product Details
- Requires compatible wall-hung toilet bowl to complete installation. See our Clean Design brochure for a list of compatible bowls.
- Design freedom – choose a toilet bowl from any leading ceramic manufacturer; pair with stylish Sigma series flush actuators or compatible flush buttons
- Easy cleaning – clean the entire floor with a damp mop, no bending or kneeling
- Improved accessibility – requires less space than a standard toilet, enhancing safety and comfort; adjustable bowl height meets personal preference or ADA guidelines
- Water savings – built-in dual-flush, 1.6 / 0.8 GPF or 1.28 / 0.8 GPF saves thousands of gallons every year
- Superior function – engineered Geberit fill and flush valves eliminate problematic chains and flappers that corrode and fail

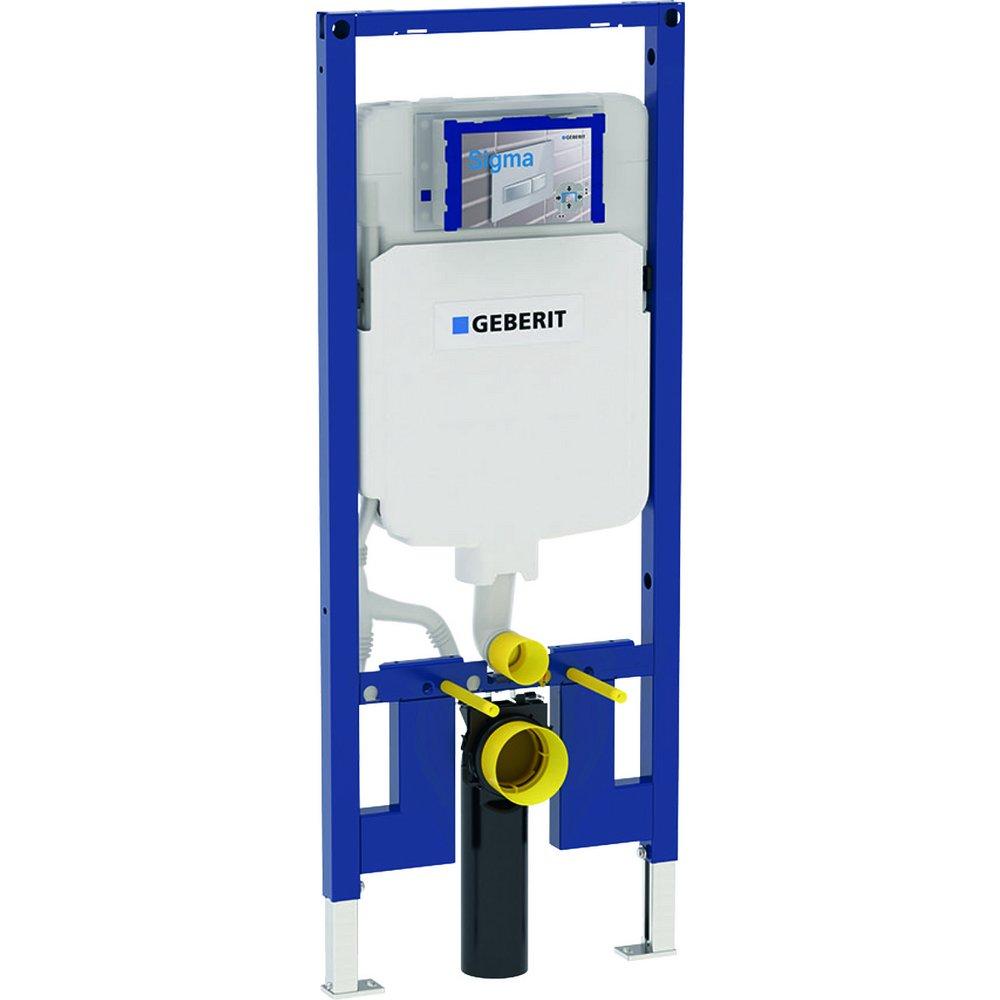

- Includes Geberit Duofix carrier frame with Sigma concealed tank, water supply stop, drainage elbow, fill and flush valves pre-installed; mounting hardware
- Pair with stylish Sigma series flush actuators or compatible flush buttons (order separately)
- See our Clean Design brochure or use the EPA WaterSense Product Search to find water saving EPA WaterSense combinations with Geberit
- For installation in wood or steel stud walls, minimum 5-1/2 in depth
-
ADA Compliant
Specifications
- ADA Compliant:
- Yes
- ANSI:
- ANSI A117.1
- ASME:
- ASME A112.19.2, ASME A112.19.5, ASME A112.19.14, ASME A112.6.2
- Adjustable:
- Yes
- Application:
- Residential, Commercial
- Brand Model Compatibility:
- Geberit Sigma flush plates
- CSA Certified:
- CSA B45.5, CSA B125.3, CSA B45.15
- Collection:
- Sigma
- Depth:
- 3-1/2 in
- Flow Rate:
- 1.6 gpf
- Installation Type:
- Wall Mount
- Length:
- 47-1/4 in
- Material:
- Stainless Steel, Plastic
- Material Type:
- 316 SS, HDPE
- Maximum Temperature:
- 65
- Number of Handles:
- No Handle
- Product Type:
- Carrier Frame
- UL Listed:
- No
- WaterSense Labeled:
- Yes
- Width:
- 19-3/4 in
