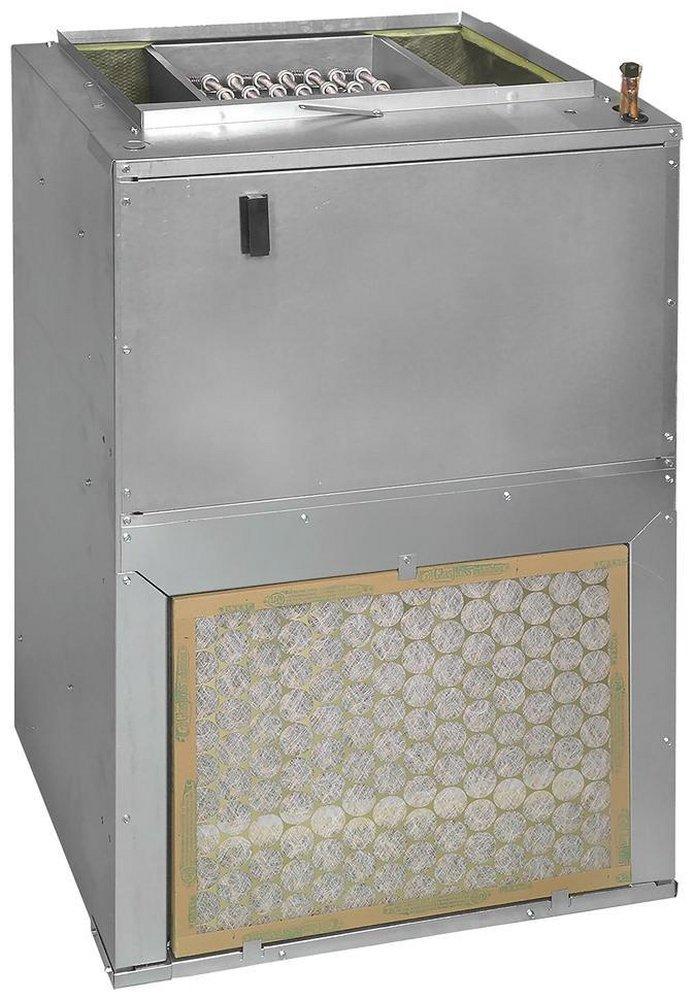

2.5 Ton - Wall Mount - Multi-Speed Air Handler - 8kW Electric Heat - R-32 - 36.05" W
Goodman®
AWST Series 2.5 Ton - Wall Mount - Multi-Speed Air Handler - 8kW Electric Heat - R-32 - 36.05" W
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Goodman®
AWST Series
2.5 Ton - Wall Mount - Multi-Speed Air Handler - 8kW Electric Heat - R-32 - 36.05" W
AWST30LU1308
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- A2L compatible
- AWST models - equipped with a fully adjustable TXV
- Direct drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence controlled, rust-resistant nickel chromium heating elements of 3, 5, 8 and 10 kW
- Aluminum tubing coils on all models
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
Product Information
-
A2L Compatible
Dimensions & Measurements
CFM
1180 ft3/min
Depth
21 in
Height
36 in
Liquid Line (OD)
3/8 in
Max CFM
1180 cfm
Suction Line (OD)
3/4 in
Tonnage
2.5 Ton
Weight
94 lb
Width
24 in
Characteristics & Features
A2L Compatible
Yes
Blower Type
ECM
Collection
AWST Series
Refrigerant
R-32
Refrigeration Control Type
TXV
Electrical & Operational Information
AMP
37.7
BTU Cooling Rating
30000 Btu/h
BTU Heat Rating
27000 Btu/h
Horsepower
1/2 hp
MBH
30
Phase
Single Phase
Volts
208/230V
Warranty & Product Information
UL Listed
Yes
