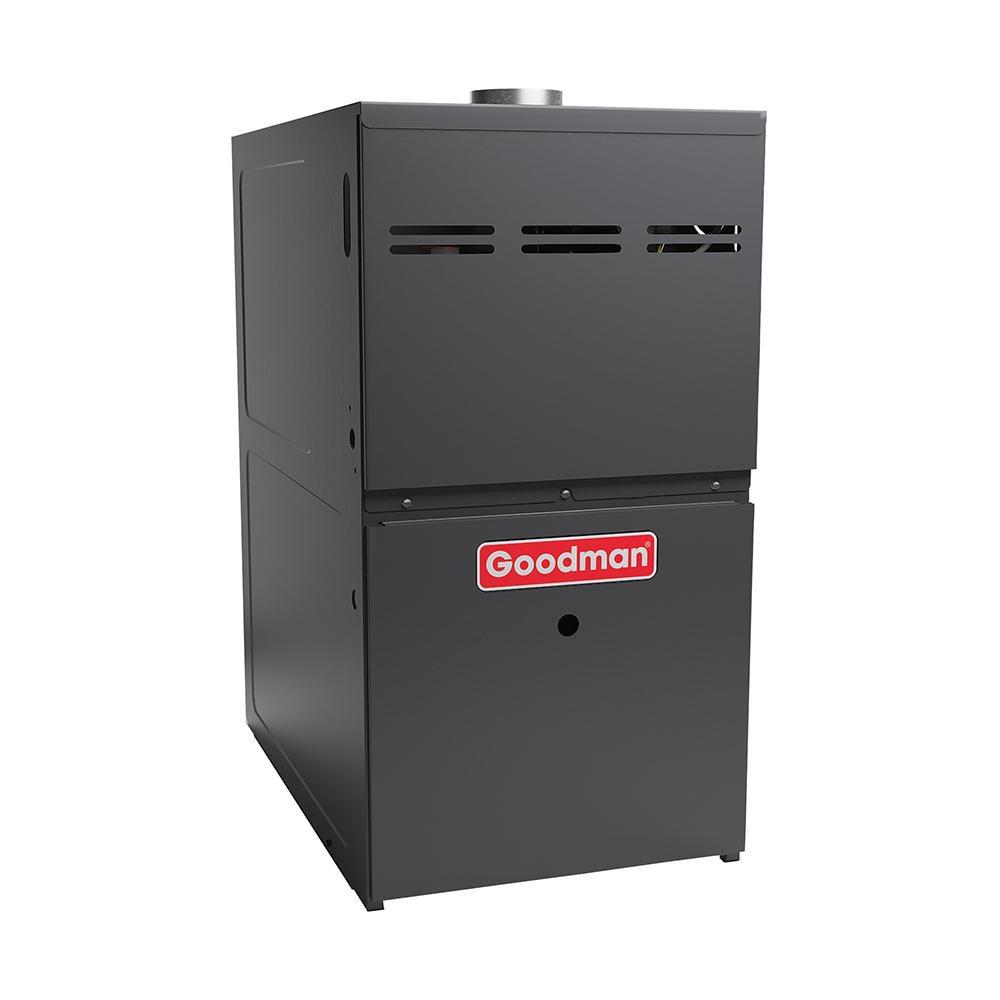

14 in. 60000 BTU 80% AFUE 5 Ton Single-Stage Upflow and Horizontal 1/3 hp Natural Gas Furnace
Goodman®
GMS8 Series 14 in. 60000 BTU 80% AFUE 5 Ton Single-Stage Upflow and Horizontal 1/3 hp Natural Gas Furnace
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 5
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Goodman®
GMS8 Series
14 in. 60000 BTU 80% AFUE 5 Ton Single-Stage Upflow and Horizontal 1/3 hp Natural Gas Furnace
GMS80603AN
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Heavy-duty aluminized-steel tubular heat exchanger
- Silicon Nitride igniter
- Single-Stage gas Valve
- Single-speed inducer draft blower
- Color-coded low voltage terminals
- GHS8: High static airflow capability
- AHRI Certified
- AHRI Reference Number: 5012547
- Frequency: 60 Hz
Specifications
- AFUE:
- 80.00 %
- AMP:
- 15, 4.8, 8.1
- ANSI:
- ANSI Z223.1
- BTU:
- 60000
- BTU Heat Rating:
- 60000 Btu/h
- Blower Type:
- Multispeed
- CSA Certified:
- CSA B142.2, CSA B149.1
- Coil Type:
- Aluminum Fin
- Collection:
- GMS8 Series
- Condensing:
- No
- Configuration:
- Horizontal, Upflow
- Depth:
- 28-3/4 in
- ETL Listed:
- Yes
- Energy Star Compliant:
- No
- Fan Speeds:
- 4
- Flue Size:
- 4
- Fuel Type:
- Natural Gas
- Height:
- 33-3/8 in
- Horsepower:
- 1/3 hp
- Ignition System:
- Hot Surface Igniter
- MBH:
- 60
- Max Fuse Size:
- 15
- Phase:
- Single Phase
- Power Source:
- Gas
- Proposition 65:
- WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Refrigerant:
- R-410A
- SEER:
- 13.0
- Temperature Range:
- 20 to 50 Deg F
- Tonnage:
- 5 Ton
- UL Listed:
- No
- UPC:
- 663051457928
- Vent Type:
- Chimney Vent
- Volts:
- 115V
- Width:
- 14 in
