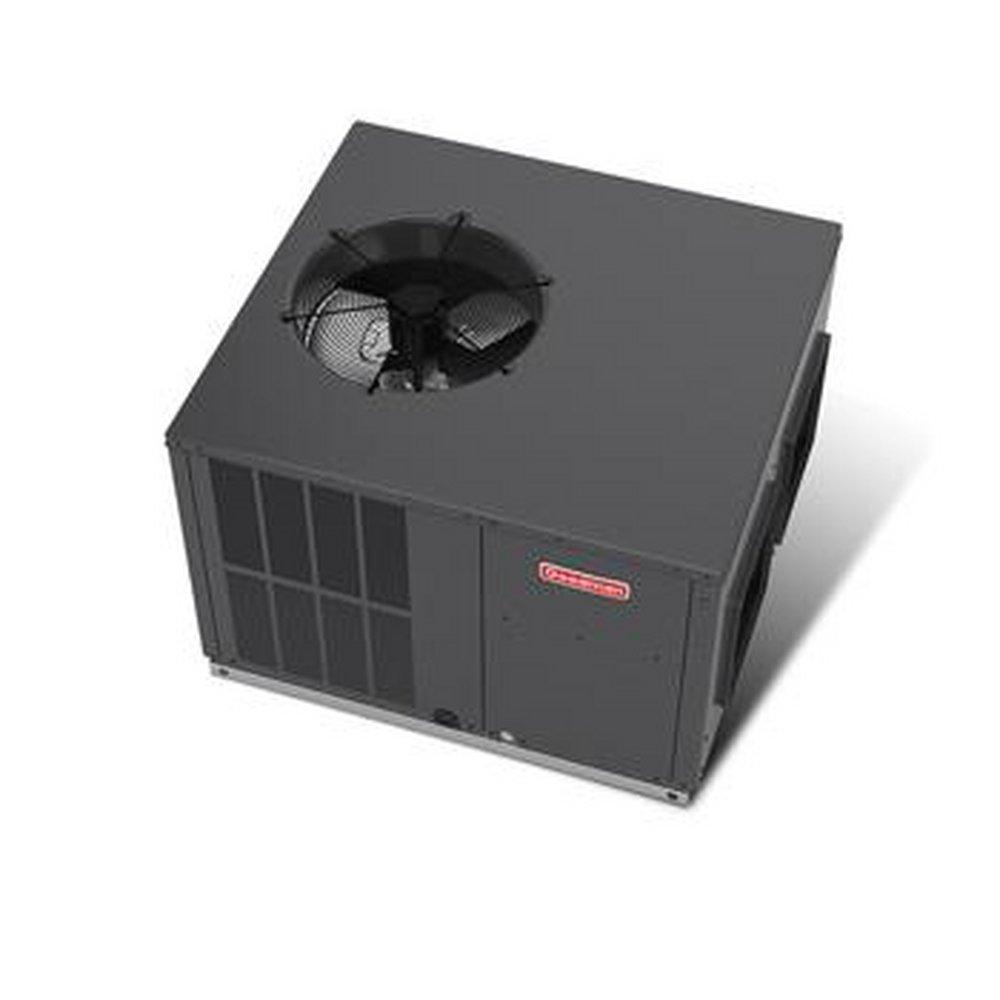

2.5 Ton - 13.4 SEER2 - 6.7 HSPF2 - Packaged Heat Pump

Goodman®

GPHM3 2.5 Ton - 13.4 SEER2 - 6.7 HSPF2 - Packaged Heat Pump

Brand image
Goodman®

GPHM3 2.5 Ton - 13.4 SEER2 - 6.7 HSPF2 - Packaged Heat Pump

  • Part #GGPHM33041
  • Item #9959654
  • Manufacturer Part #GPHM33041
5 out of 5 Customer Rating

Package Quantity Info:

EA: 1 IP: 1
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Meets the 2023 M1 test standards
  • Energy-efficient compressor with internal relief valve
  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area
  • Convertible airflow: Horizontal or downflow
  • Multi-speed ECM blower motor
  • Liquid-line filter drier
  • All-aluminum evaporator coil
  • Two-stage cooling on 5-ton units
  • Totally enclosed, permanently lubricated condenser fan motor
  • Copper tube/aluminum fin condenser coils

Specifications

AMP:
1.3, 14.1, 23, 3.8, 35, 73
Application:
Residential
BTU:
30000
BTU Cooling Rating:
28000 Btu/h
BTU Heat Rating:
27200 Btu/h
Blower Type:
ECM
Coil Type:
Evaporator
Collection:
GPHM3
Compressor Type:
Scroll
Configuration:
Multi-Position
Decibel Rating (dB):
76 dB
Depth:
51 in
EER2:
10.6
EER2 Range:
10.6 - 11.1
ETL Listed:
Yes
Energy Star Compliant:
No
HSPF2:
6.7
HSPF2 Range:
6.7 - 7.4
Height:
34-3/4 in
Horsepower:
1/2 hp
MBH:
30
Max CFM:
1050 cfm
Origin:
Domestic
Phase:
Single Phase
Power Source:
Electric
Refrigerant:
R-410A
Refrigeration Control Type:
Piston
SEER2:
13.4
SEER2 Range:
13.4 - 13.7
Stages:
Single
Tonnage:
2.5 Ton
Volts:
208/230V
Width:
47 in
