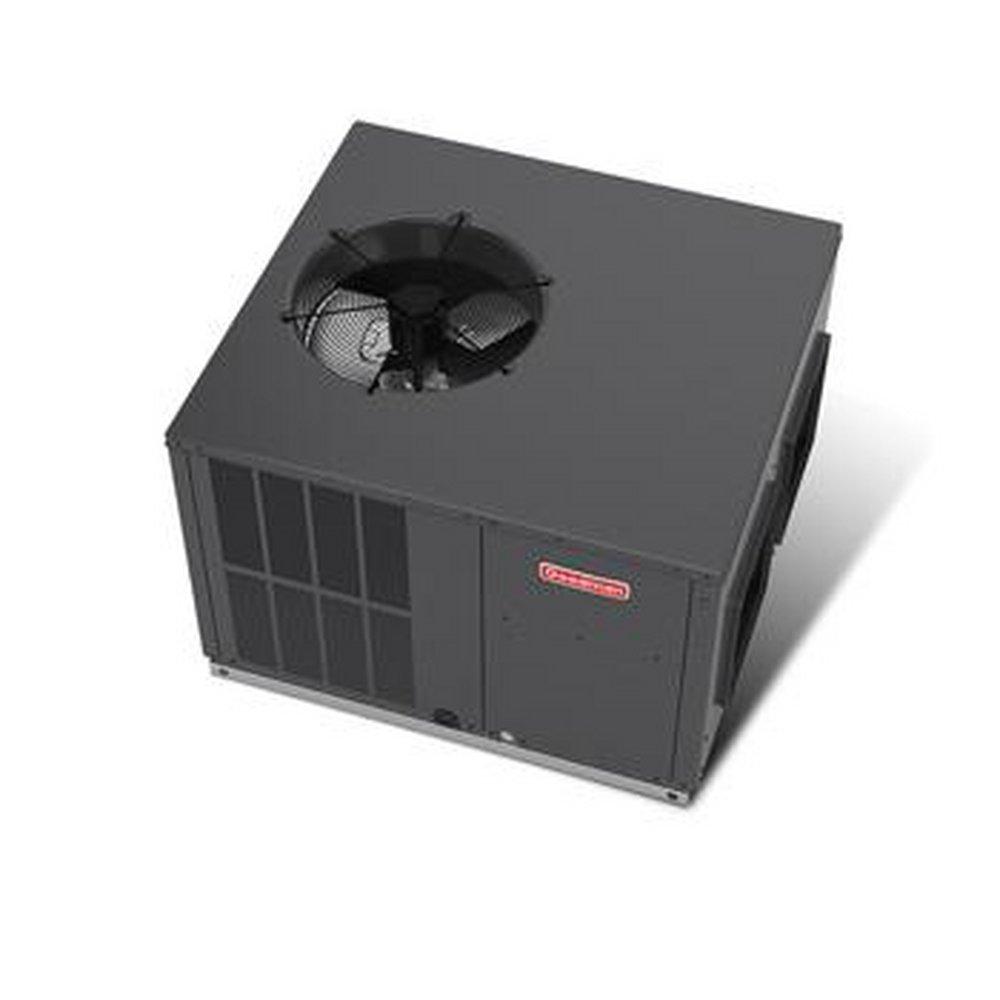

GPHM5 Series 3 Ton Packaged Heat Pump 15.2 SEER2 R-32 208/230V
Goodman®
GPHM5 GPHM5 Series 3 Ton Packaged Heat Pump 15.2 SEER2 R-32 208/230V
Points
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
Purchase history
Goodman®
GPHM5
GPHM5 Series 3 Ton Packaged Heat Pump 15.2 SEER2 R-32 208/230V
GPHM53641
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- High-efficiency two-stage scroll compressor
- Two-stage heating and cooling
- Multi-Speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coils
- All-aluminum evaporator coil on 2- to 4-ton units
- Aluminum-copper evaporator coil on 5-ton units
- Liquid-line filter drier
- Convertible airflow: horizontal or downflow
- Electric heat kit available as a field-installed option
Documents
Specifications
- A2L Compatible:
- No
- AMP:
- 22.8, 35
- Application:
- Residential
- BTU:
- 36000
- BTU Cooling Rating:
- 34000 Btu/h
- BTU Heat Rating:
- 33800 Btu/h
- Coil Type:
- Aluminum Fin
- Collection:
- GPHM5
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Multi-Position
- Decibel Rating (dB):
- 76 dB
- Depth:
- 51
- EER2:
- 11.4
- EER2 Range:
- 11.2 - 11.6
- ETL Listed:
- Yes
- Factory Std. Refrigerant Charge:
- 165
- HSPF2:
- 6.8
- HSPF2 Range:
- 6.7 - 7.4
- Height:
- 42-3/4
- Horsepower:
- 1/2 hp
- MBH:
- 36
- Max CFM:
- 1604
- Origin:
- Domestic
- Phase:
- Single Phase
- Refrigerant:
- R-410A
- Refrigerant Control:
- TXV
- Refrigeration Control Type:
- TXV
- SEER2:
- 15.2
- SEER2 Range:
- 15.2 - 40.0
- Tonnage:
- 3 Ton
- Volts:
- 208/230V
- Width:
- 47
