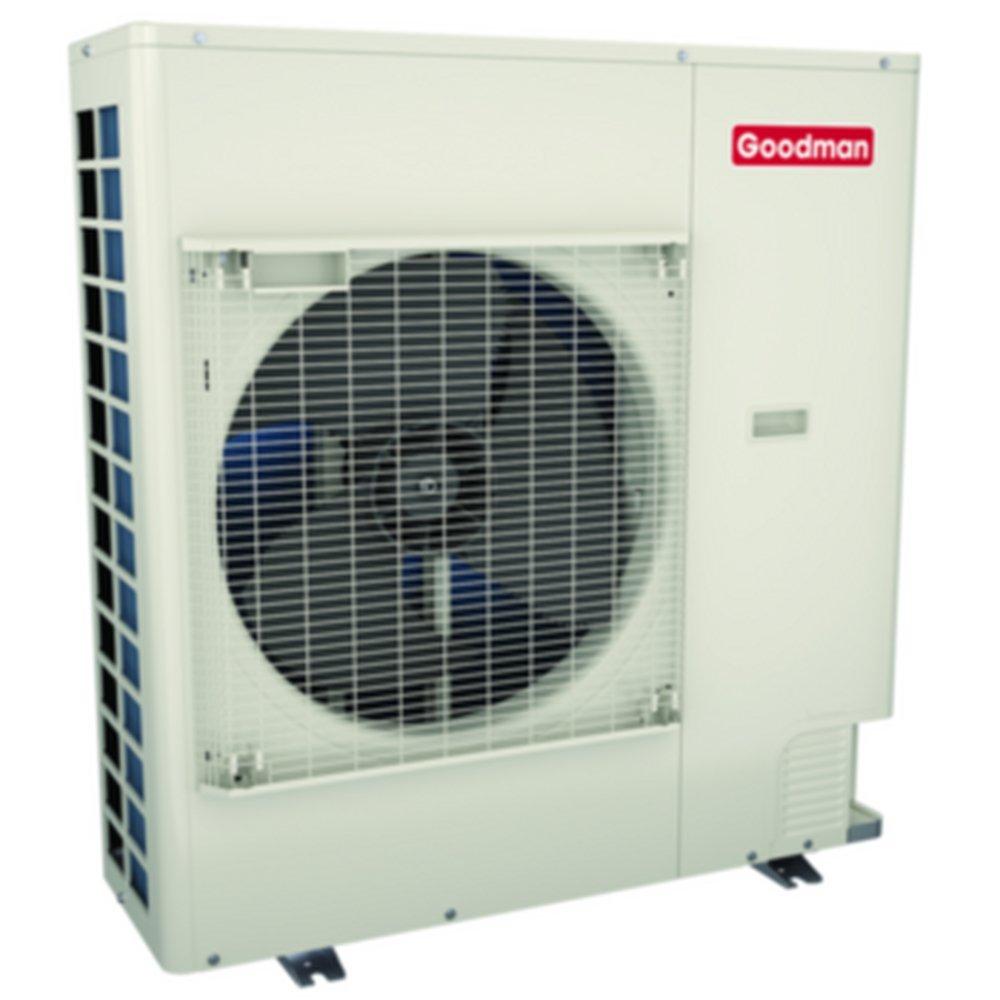

4 Ton - Up to 17.2 SEER2 / 8.5 HSPF2 - Side Discharge Split Heat Pump - Inverter Driven
Goodman®
GSZS6 4 Ton - Up to 17.2 SEER2 / 8.5 HSPF2 - Side Discharge Split Heat Pump - Inverter Driven
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Goodman®
GSZS6
4 Ton - Up to 17.2 SEER2 / 8.5 HSPF2 - Side Discharge Split Heat Pump - Inverter Driven
GSZS604810
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Variable speed swing compressors
- Quiet digitally commutated fan motor
- High density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
- Proprietary control algorithmic logic
- In communicating mode, only two low voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display and fault code storage
- Proprietary inside intelligence for diagnostics
- Quiet mode - provides enhanced acoustical comfort, up to three different sound levels
Specifications
- A2L Compatible:
- No
- AMP:
- 34.4
- BTU:
- 48000
- BTU Cooling Rating:
- 45000 Btu/h
- BTU Heat Rating:
- 45500 Btu/h
- Collection:
- GSZS6
- Communicating:
- Communicating
- Compressor Stages:
- Variable Speed
- Compressor Type:
- Swing
- Depth:
- 12-5/8 in
- EER2:
- 8.0
- ETL Listed:
- Yes
- Energy Star Compliant:
- No
- Factory Std. Refrigerant Charge:
- 118 oz
- HSPF2:
- 8.5
- Height:
- 39 in
- Horsepower:
- 9/25 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 48
- Max Fuse Size:
- 35
- Phase:
- Single Phase
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- EEV
- SEER:
- 16.2
- SEER2:
- 17.5
- Sound Blanket:
- Yes
- Suction Line (OD):
- 1-1/8 in
- Tonnage:
- 4 Ton
- Volts:
- 208/230V
- Weight:
- 168 lb
- Width:
- 37 in
