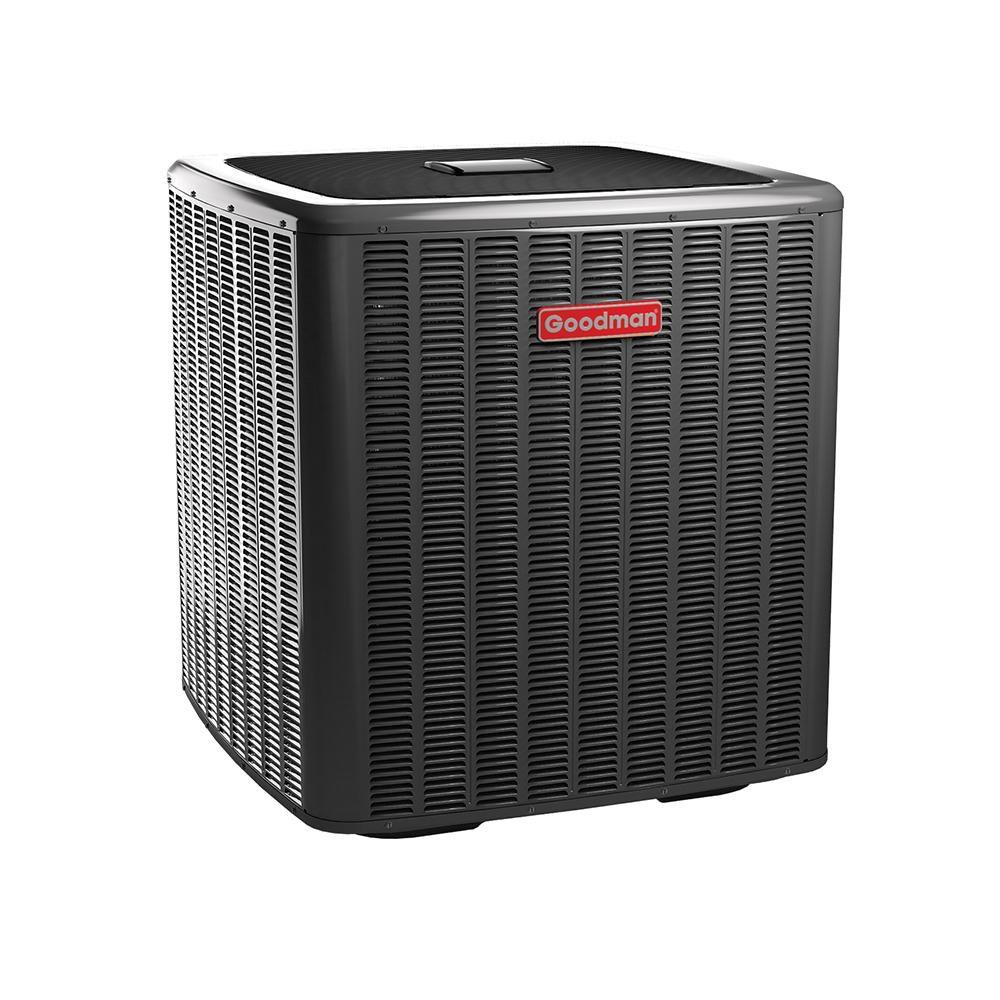

5 Ton - Up to 21 SEER / 10 HSPF - High Efficiency Heat Pump - R-410A
Goodman®
GVZC20 5 Ton - Up to 21 SEER / 10 HSPF - High Efficiency Heat Pump - R-410A
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Goodman®
GVZC20
5 Ton - Up to 21 SEER / 10 HSPF - High Efficiency Heat Pump - R-410A
GVZC200601
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Variable speed swing compressors
- High density compressor sound blanket
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
- Goodman control algorithmic logic
- In communicating mode, only two low voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Field selectable boost mode increases compressor speed during unusually high loads
- Quiet DC outdoor fan motor
-
Green
Specifications
- A2L Compatible:
- No
- AMP:
- 30.6
- Application:
- Commercial, Residential
- BTU:
- 60000
- BTU Cooling Rating:
- 52500 Btu/h
- BTU Heat Rating:
- 52000 Btu/h
- CEC Compliant:
- For Sale in CA
- CFM:
- 1630 ft3/min
- Collection:
- GVZC20
- Communicating:
- Communicating
- Compressor Stages:
- Variable Speed
- Compressor Type:
- Swing
- Decibel Rating (dB):
- 74.9 dB
- Depth:
- 35-1/2 in
- ETL Listed:
- Yes
- Energy Star Compliant:
- Yes
- Factory Std. Refrigerant Charge:
- 272 oz
- HSPF:
- 10.0
- HSPF2:
- 10.0
- Height:
- 41-1/4 in
- Horsepower:
- 1/2 hp
- Liquid Line (OD):
- 3/8 in
- MBH:
- 60
- Max Fuse Size:
- 35
- Phase:
- Single Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- SEER:
- 20.0
- Sound Blanket:
- Yes
- Suction Line (OD):
- 1-1/8 in
- Tonnage:
- 5 Ton
- UPC:
- 663051604643
- Volts:
- 208/230V
- Weight:
- 291 lb
- Width:
- 35-1/2 in
