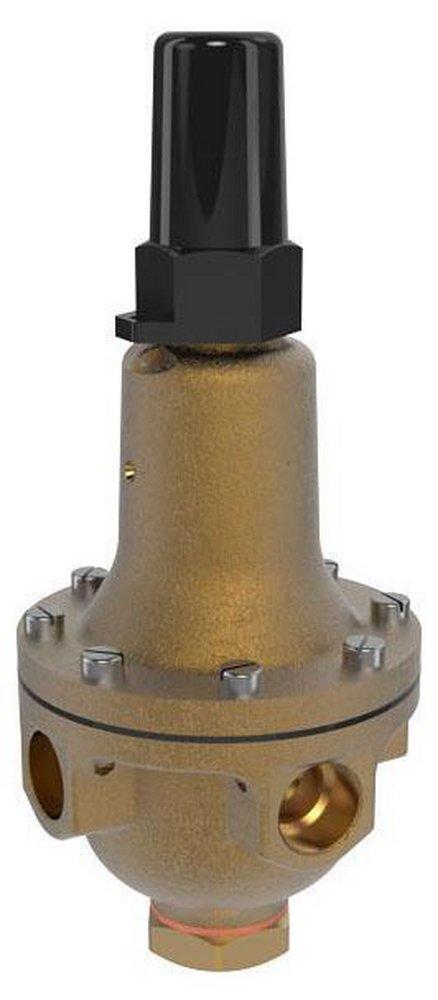

3/8 in. NPT Brass and Steel 75 psi Pressure Reducing Control Valve
Griswold Industries
3/8 in. NPT Brass and Steel 75 psi Pressure Reducing Control Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Griswold Industries
3/8 in. NPT Brass and Steel 75 psi Pressure Reducing Control Valve
7194303K
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Direct Acting
- Hydraulic or pneumatic operation
- Simplified design, easy adjustments
- Operates in any position
- Gauge connection port
- CRD Pressure Reducing Control automatically reduce a higher inlet pressure to a lower outlet pressure
- They are direct acting, spring loaded, diaphragm type control regulators that operate hydraulically or pneumatically
- These valves are held open by the force of the compression spring above the diaphragm, and close when the downstream pressure acting on the underside of the diaphragm exceeds the spring setting
- The CRD senses downstream pressure directly
Specifications
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- Height:
- 7-19/50 in
- IAPMO Listed:
- No
- Material:
- Stainless Steel
- Maximum Temperature:
- 180
- NSF Certified:
- No
- Pressure - Maximum:
- 400 psi
- Valve Body Material:
- Bronze
- Valve Body Style:
- Straight
- Valve Operator:
- Screw Handle
- Valve Seat Material:
- Steel
- Valve Size:
- 3/8 in
- Valve Type:
- Pressure Reducing Valve
