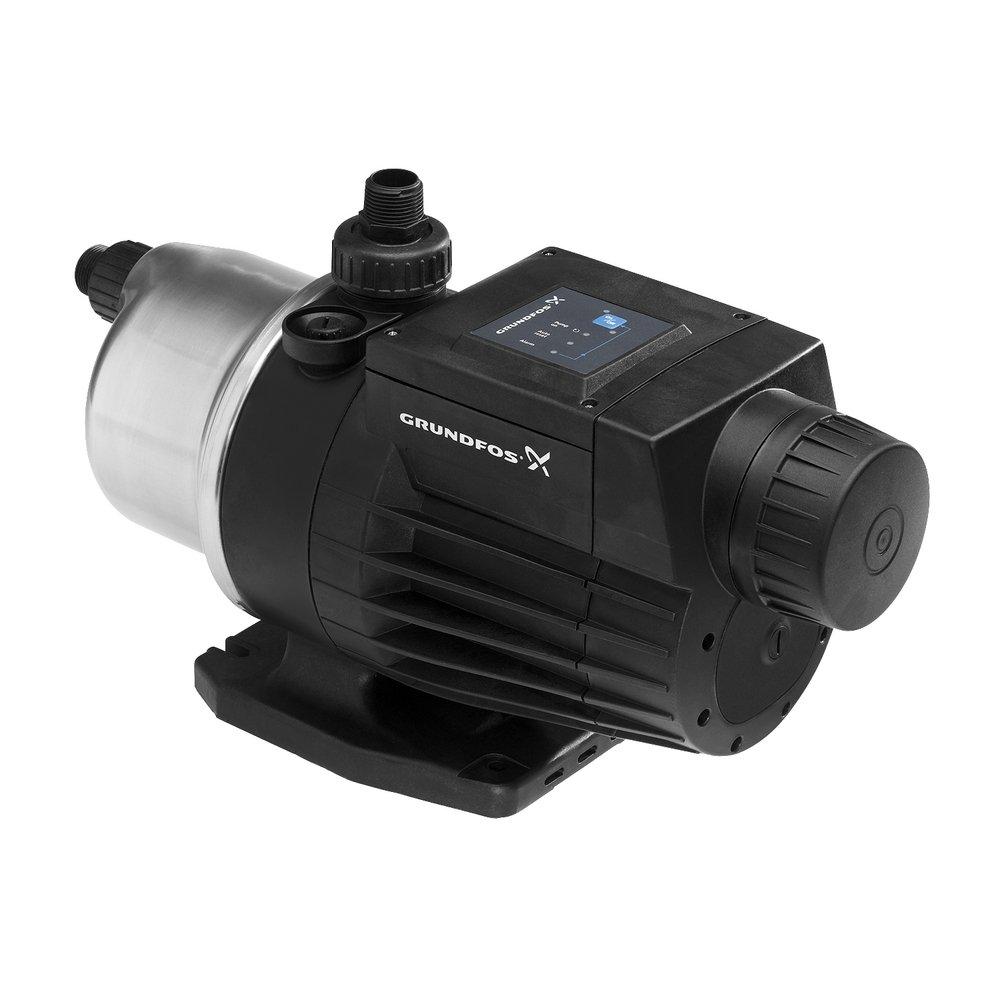

115V 1 hp Pressure Single Phase Booster Pump

This product has been replaced by

Grundfos Black 1 in. NPT Composite Booster Pump
Grundfos 5-55 115V Single Phase Booster Pump
Manufacturer Part #99631754
Grundfos

115V 1 hp Pressure Single Phase Booster Pump

  • Fast #
  • Part #G96860195
  • Item #3876691
  • Manufacturer Part #96860195
4.7 out of 5 Customer Rating
Brand image
Grundfos Black 115V Pressure Single Phase Booster Pump
Grundfos Black 115V Pressure Single Phase Booster Pump
Grundfos Black 115V Pressure Single Phase Booster Pump
Grundfos Black 115V Pressure Single Phase Booster Pump

This product has been replaced by

Grundfos Black 1 in. NPT Composite Booster Pump
Grundfos 5-55 115V Single Phase Booster Pump
Manufacturer Part #99631754
Grundfos

115V 1 hp Pressure Single Phase Booster Pump

  • Fast #
  • Part #G96860195
  • Item #3876691
  • Manufacturer Part #96860195
4.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 15
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Installation due to its compact design, the pump does not take up much space and is easy to install
  • No space around the pump is required
  • Simple operation the pump features a user-friendly control panel with ON/OFF button and indicator lights for indication of the operational state of the pump
  • Self-priming pump As it is self-priming, the MQ is able to pump water from a level below the pump
  • Automatic reset The pump features an automatic reset function
  • Lead-Free
  • Requires Certification

  • Lead Law Compliant

Specifications

AMP:
10
ASTM:
No
Application:
Domestic Water, Farm, Gardening, Home
Cord Length:
6.56 ft
Depth:
22-2/5 in
Diameter - Inside 1:
1 in
Discharge:
1 in
Discharge Pressure:
63
End Connection 1:
NPT
End Connection 2:
NPT
End Connections:
NPT
Flow Rate:
3 cu m/hr
Height:
12-3/4 in
Horsepower:
1 hp
Lead Law Compliance Level:
Lead Free Not Certified, Approved for Non-Potable Water Applications
Lead Law Compliant:
Yes
Length:
2 m
Maximum Feet of Head:
147.638
Maximum Temperature:
45
NSF:
NSF 61, NSF 372
NSF Certified:
Yes
Power Source:
Electric
Pressure - Maximum:
108.78 psi
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Application:
Pressure Booster
Pump Body Material:
Glass Fiber
Pump Mounting:
Horizontal
Pump Phase:
1
Pump Stage:
3
Suction Line (OD):
1 in
UL Listed:
No
Volts:
120V
Width:
8-5/8 in
