15-29 SF/T 115V Circulator Pump

Grundfos

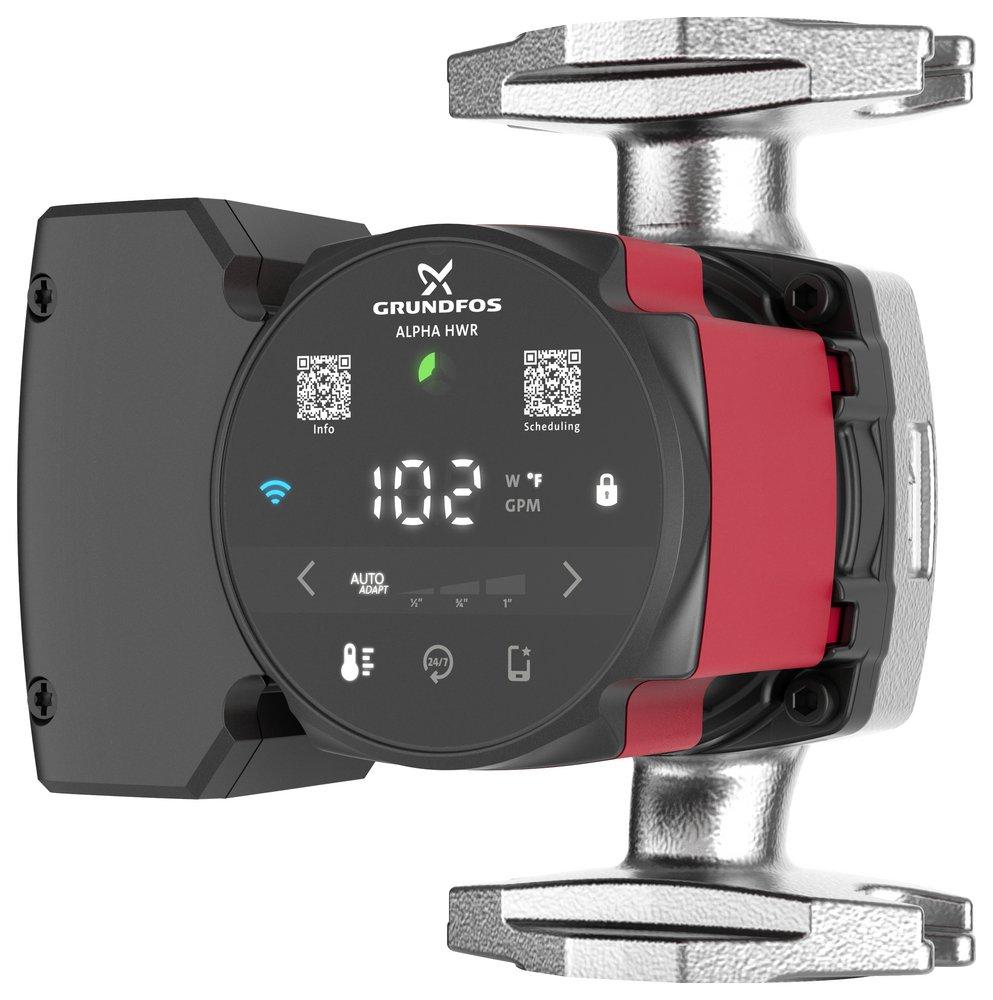

ALPHA HWR 15-29 SF/T 115V Circulator Pump

  • Fast #
  • Part #G92603112
  • Item #10399794
  • Manufacturer Part #92603112
3.7 out of 5 Customer Rating
Brand image
15-29 SF/T 115V Circulator Pump
15-29 SF/T 115V Circulator Pump
15-29 SF/T 115V Circulator Pump
15-29 SF/T 115V Circulator Pump
Grundfos

ALPHA HWR 15-29 SF/T 115V Circulator Pump

  • Fast #
  • Part #G92603112
  • Item #10399794
  • Manufacturer Part #92603112
3.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Circulator comes with built-in temperature control, eliminating the need for an external aquastat
  • Built-in digital timer makes it possible to schedule the pump's on/off hours, helping save energy when hot water is not required in the home.
  • Master the flow to reduce pinholes with FLOWSENSE™ technology
  • Dry run protection during set-up and normal operation monitoring to help from bearings and shaft seals being damaged
  • Self venting in any setting and mode to help achieve a low noise level
  • High efficiency hot water circulator for dedicated return lines that will help for a smoother installation while providing a safe and efficient solution
  • High efficiency platform with a permanent magnetmotor (ECM) that helps reduce energy consumption by up to 80 percent
  • AutoAdapt functionality to maintain temperature and prevent the pump from operating if return temperature is satisfied. Learning cycle adjusts flow rate to meet system
  • Maintains the highest Energy rating in the market (215) based on the Hydraulic Institute Energy Rating
  • Touchscreen with LED lights field indicators with numeric display (flow, temp, watts)
  • Requires Certification
Dimensions & Measurements
Discharge
1 in
End Connection 1
Flanged
End Connections
Flanged
Flow Rate
7.26 gpm
Height
5-31/100 in
Length
6.5 in
Maximum Feet of Head
9.51
Pressure - Maximum
174.92 psi
Weight
6 lb
Characteristics & Features
Collection
ALPHA HWR
Connection Type
Flanged
Pump Body Material
Stainless Steel
Electrical & Operational Information
AMP
0.41
Maximum Temperature
203
Minimum Temperature
36
Volts
115V
Watts
21 W
Warranty & Product Information
NSF Certified
No
Origin
Global
Product Type
Circulator Pump
Type
G92603112
UL Listed
Yes
