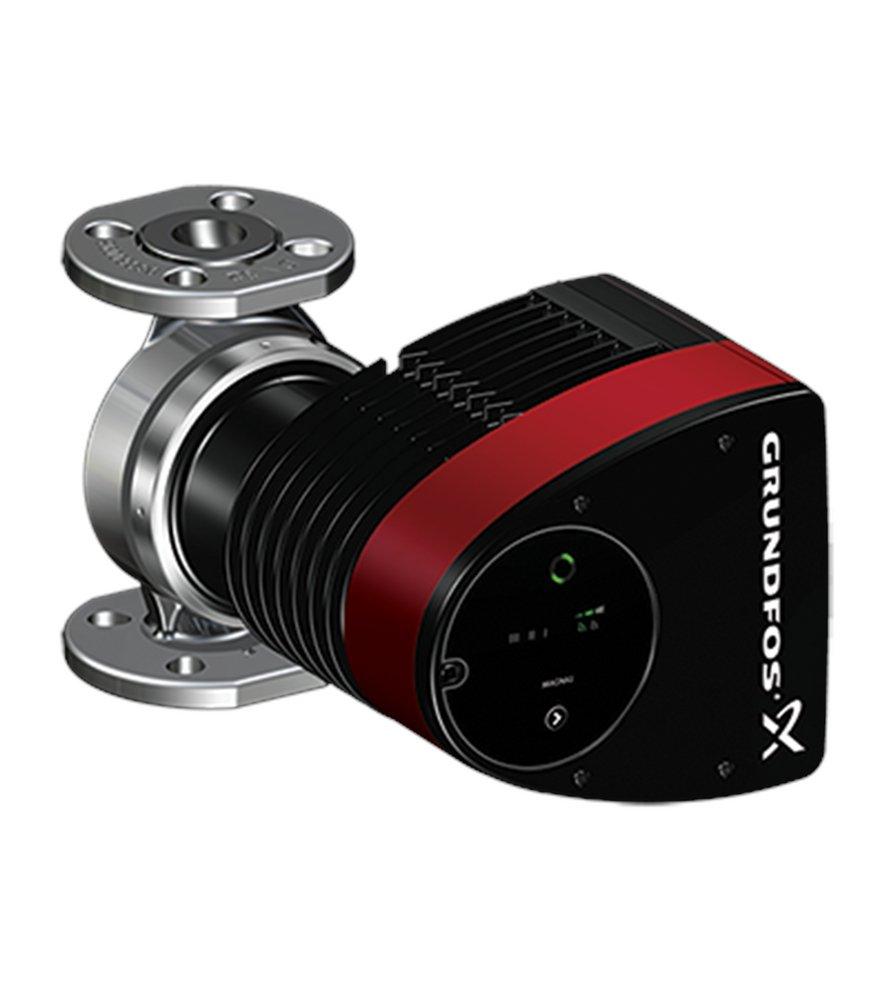

40-80GFN 1/3 HP 115V Stainless Steel Circulator Pump
You last purchased this on
Grundfos
Magna1 40-80GFN 1/3 HP 115V Stainless Steel Circulator Pump
Purchase history
Grundfos
Magna1
40-80GFN 1/3 HP 115V Stainless Steel Circulator Pump
98126801
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- Proportional pressure control
- Constant pressure control
- Constant curve
- Permanent magnet motor construction
- No external motor protection required
- Integrated frequency converter
- LED indication of the pump setting
- The Grundfos Eye indicator
- Wide temperature range
Specifications
- AMP:
- 2.52
- ASTM:
- ASTM 351 CF8
- Collection:
- Magna1
- Connection Size:
- 1-1/2
- Discharge Pressure:
- 12
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Flow Rate:
- 51.43 gpm

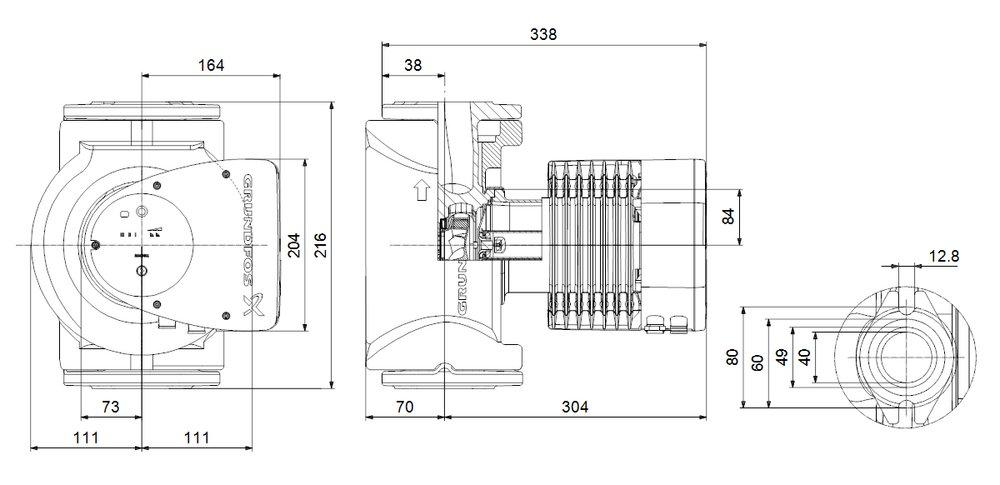

- Height:
- 14-5/7 in
- Horsepower:
- 3/8 hp
- Impeller:
- Composite;PES
- Length:
- 8-1/2 in
- Maximum Feet of Head:
- 26.25
- Maximum Immersible Depth:
- 0 ft
- Maximum Temperature:
- 230
- NSF Certified:
- No
- Origin:
- Domestic
- Power Source:
- Electric
- Pressure - Maximum:
- 175 psi
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Pump Application:
- Heating
- Pump Body Material:
- Stainless Steel
- Pump Motor Type:
- ECM-Permanent Magnetic
- Pump Mounting:
- Flanged
- Pump Phase:
- 1
- Pump Stage:
- 1
- UL Listed:
- No
- Volts:
- 115V
- Watts:
- 280000 W
- Weight:
- 32.291 lb
- Width:
- 10-5/6 in
