3-45 A 208-230V Single Phase Booster Pump

This product has been replaced by

3-45 208-230V 60HZ NEMA 6-15 PLG
Grundfos 3-45 208-230V Booster Pump with NEMA 6-15 Plug
Manufacturer Part #93013250
Grundfos

SCALA2 3-45 A 208-230V Single Phase Booster Pump

  • Fast #
  • Part #G98562817
  • Item #7107734
  • Manufacturer Part #98562817
5 out of 5 Customer Rating
Brand image

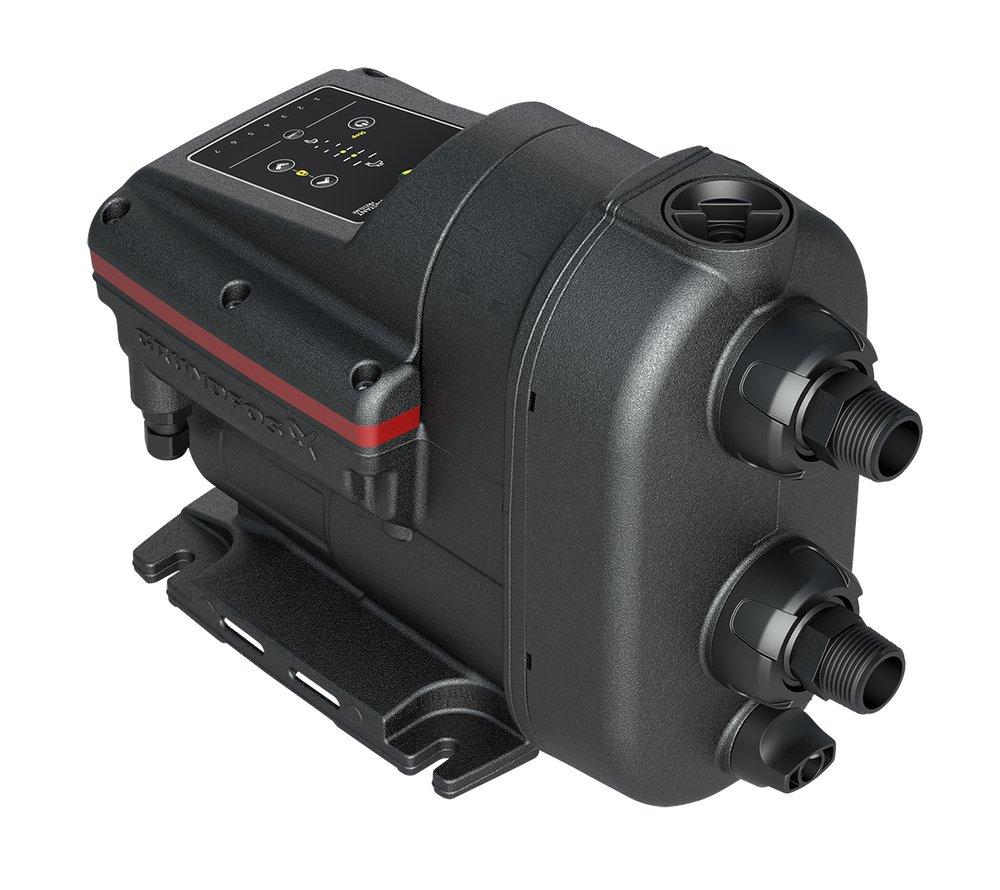

Grundfos Black Booster Pump
Grundfos Black Booster Pump
Grundfos Black Booster Pump
Grundfos Black Booster Pump

This product has been replaced by

3-45 208-230V 60HZ NEMA 6-15 PLG
Grundfos 3-45 208-230V Booster Pump with NEMA 6-15 Plug
Manufacturer Part #93013250
Grundfos

SCALA2 3-45 A 208-230V Single Phase Booster Pump

  • Fast #
  • Part #G98562817
  • Item #7107734
  • Manufacturer Part #98562817
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Secaucus, NJ
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • The pump features an automatic reset function
  • If exposed to dry running, water shortage or excessive temperature, blocked pump, for example in case of seizure or overload, the pump will stop automatically, thus preventing a motor burnout
  • The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, causing less wear on the pump
  • Easy installation and self-priming
  • Robust and reliable
  • Dry running protection
  • User-friendly control panel
  • Outdoor-ready
  • Thermal overload protection: Built-in thermal protection
  • All-in-one solution including pump, motor, tank, pressure sensor and check valve, and controller
  • Requires Certification

Specifications

AMP:
2.8
ANSI:
ANSI 61, ANSI 372
Application:
Residential
Collection:
SCALA2
Cord Length:
6.56 ft
Depth:
15-9/10 in
Diameter - Inside 1:
1 in
Discharge:
1 in
Discharge Pressure:
63.928125
End Connection 1:
MPT
Flow Rate:
13 gpm
Height:
12 in
Horsepower:
3/4 hp
Impeller:
Composite
Length:
16 in
Material:
Composite
Maximum Feet of Head:
147
Maximum Temperature:
45
NEMA:
NEMA 6-15
NSF:
NSF 61, NSF 372
NSF Certified:
Yes
Power Source:
Manual
Pressure - Maximum:
145 psi
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Pump Application:
Pressure Booster
Pump Body Material:
Composite
Pump Motor Type:
Permanent Magnetic
Pump Mounting:
Horizontal
Pump Phase:
1
Pump Stage:
4
RPM:
5200
Suction Line (OD):
1 in
UL Listed:
Yes
Volts:
230V
Width:
7-3/5 in
