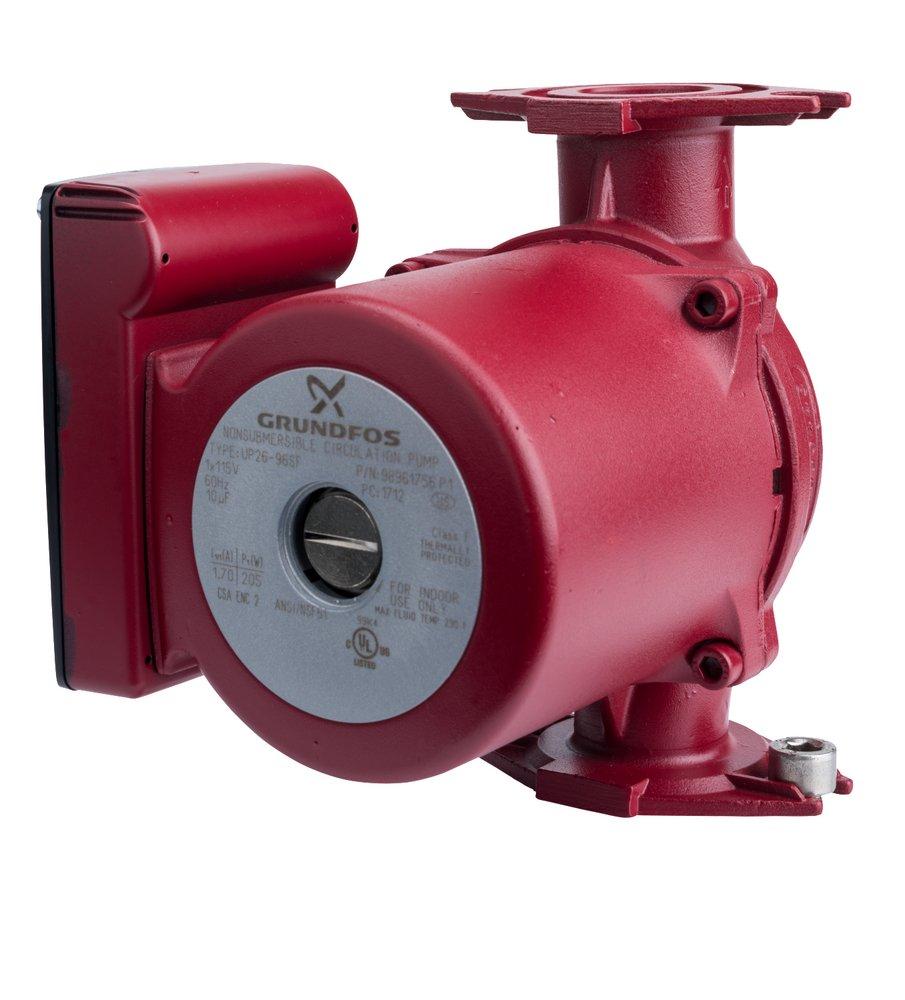

1/6 hp 230V 60Hz 9H Stainless Steel Circulator Pump
UP Series 1/6 hp 230V 60Hz 9H Stainless Steel Circulator Pump
-
Pick Up: Not available
-
Shipping: Not available
Product Details
- Built-in thermal overload switch
- Maintenance-free
- Stainless steel pump housing suitable for underfloor heating systems
- Single-speed
- Corrosion resistant impeller
- Quiet operation
-
Lead Law Compliant
Specifications
- AMP:
- 1.07
- Collection:
- UP Series
- Depth:
- 6-1/2 in
- Discharge:
- 1 in
- Discharge Pressure:
- 10
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connection 3:
- Flanged
- End Connections:
- Flanged
- Energy Star Compliant:
- No
- FM Approved:
- No
- Fitting Size 1:
- 3/4 in
- Fitting Size 2:
- 1-1/4 in
- Fitting Size 3:
- 1-1/2 in
- Fitting Sizes:
- 3/4 in x 1-1/4 in x 1-1/2 in
- Flow Rate:
- 33.90 gpm
- Height:
- 6-3/8 in
- Horsepower:
- 1/6 hp
- IAPMO Listed -:
- No
- Impeller:
- Composite
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 6-1/2 in
- Material:
- Stainless Steel
- Maximum Feet of Head:
- 32
- Maximum Temperature:
- 230
- NSF Certified:
- No
- Origin:
- Domestic
- Phase:
- Single Phase
- Power Source:
- Electric
- Pressure - Maximum:
- 145 psi
- Pump Application -:
- Heating
- Pump Motor Type:
- Asynchronous Squirrel Cage
- Pump Mounting:
- Free Standing
- Pump Phase:
- 1
- Pump Stage:
- 1
- RPM:
- 3000
- Temperature Range:
- 36 to 230 Deg F
- UL Listed:
- Yes
- Volts:
- 230V
- Watts:
- 245 W
- Width:
- 4-1/8 in
