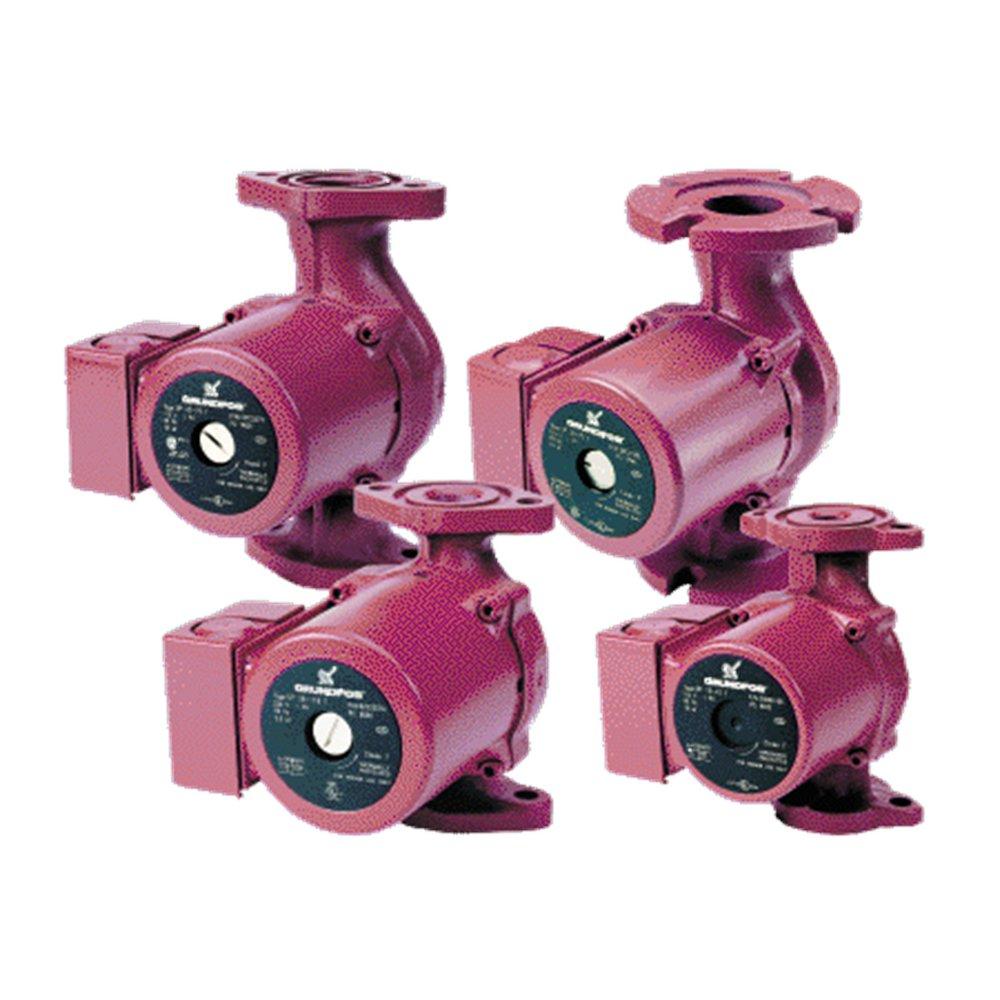

UP15-10B5/TLC 1/25 HP 115V Bronze Circulator Pump
This product has been replaced by
Grundfos UP15-10B5/TLC 1/25 HP 115V Bronze Circulator Pump
Manufacturer Part #99452454
Manufacturer Part #99452454
Grundfos
UP15-10 UP15-10B5/TLC 1/25 HP 115V Bronze Circulator Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 150
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Grundfos
UP15-10
UP15-10B5/TLC 1/25 HP 115V Bronze Circulator Pump
59896215
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Corrosion resistant impeller
- Wet runner technology
- Low energy usage
- Does not require motor protection
- Low noise
- Maximum Fluid Temperature: 150.8 F
- Minimum Fluid Temperature: 35.6 F
- Frequency: 60 Hz
- Parts Warranty: 2 Years
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- AMP:
- 0.22
- ANSI:
- ANSI 61
- Blower Type:
- 1 Speed
- Collection:
- UP15-10
- Depth:
- 5 in
- Discharge Pressure:
- 10
- End Connection 1:
- Sweat
- End Connection 2:
- Sweat
- End Connections:
- Sweat
- Flow Rate:
- 8.37 gpm
- Height:
- 6-5/16 in
- Horsepower:
- 1/25 hp
- Impeller:
- Composite
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 5 in
- Material:
- Bronze
- Maximum Feet of Head:
- 6.2
- Maximum Temperature:
- 220
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- Power Source:
- Manual
- Pressure - Maximum:
- 145 psi
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Pump Application:
- Heating
- Pump Body Material:
- Bronze
- Pump Motor Type:
- Asynchronous Squirrel Cage
- Pump Phase:
- 1
- UL Listed:
- Yes
- UPC:
- 632514001756
- Volts:
- 115V
- Watts:
- 25 W
- Width:
- 5-1/2 in
