4 in. Rust Inhibiting Painted Grooved Ductile Iron Coupling

Gruvlok

Fig 7001 4 in. Rust Inhibiting Painted Grooved Ductile Iron Coupling

  • Fast #
  • Part #G0390003085
  • Item #841732
  • Manufacturer Part #0390003085
4.4 out of 5 Customer Rating
Brand image

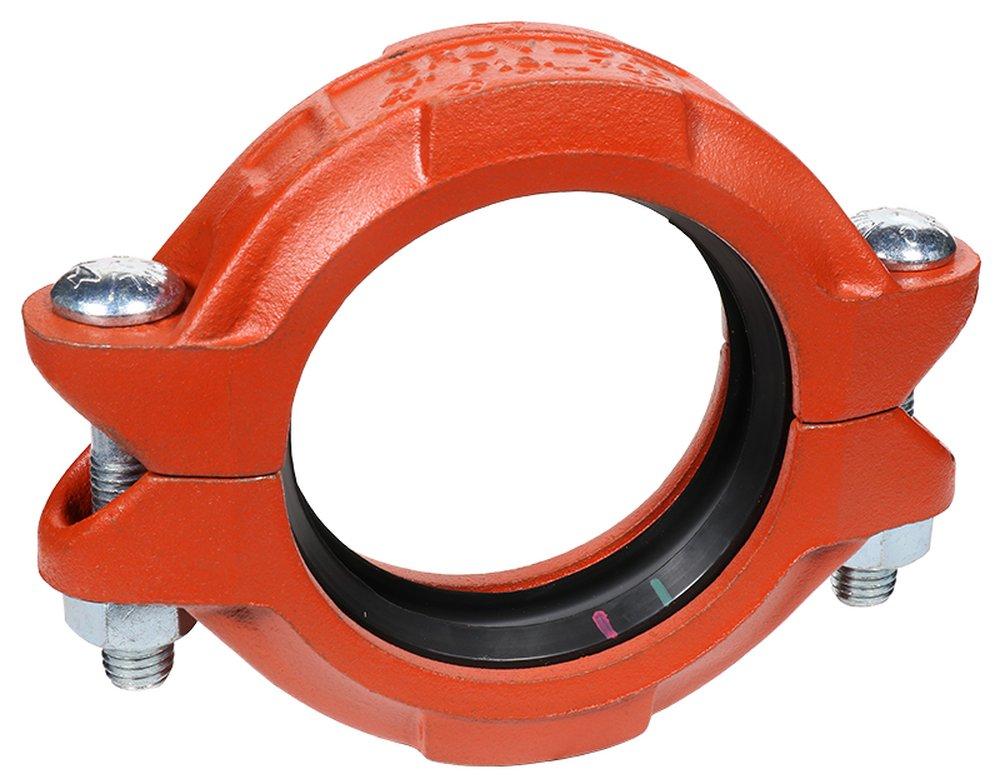

Gruvlok Rust Inhibiting Painted Grooved Ductile Iron Coupling
Gruvlok Rust Inhibiting Painted Grooved Ductile Iron Coupling
Gruvlok

Fig 7001 4 in. Rust Inhibiting Painted Grooved Ductile Iron Coupling

  • Fast #
  • Part #G0390003085
  • Item #841732
  • Manufacturer Part #0390003085
4.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

View All Sizes

Package Quantity Info:

Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

All Sizes

Product Details

Product Details

  • The Gruvlok® Fig. 7001 Coupling forms a flexible grooved end pipe joint connection with the versatility for a wide range of applications
  • Services include mechanical and plumbing, process piping, mining and oil field piping, and many others
  • The coupling design supplies optimum strength for working pressures to 1000 PSl (69 bar) without excessive casting weight
  • The flexible design eases pipe and equipment installation while providing the designed-in benefit of reducing pipeline noise and vibration transmission without the addition of special components
  • To ease coupling handling and assembly and to assure consistent quality
  • Sizes 1 in. through 14 in. couplings have two 180° segment housings, 16 in. have three 120° segment housings
  • 18 in. through 24 in. sizes have four 90° segment housings, while the 28 in. O.D. and 30 in. O.D
  • Couplings have six 60° segment housings
  • The 28 in. O.D. and 30 in. O.D. are weld-ring couplings
  • Requires Certification

Specifications

ASTM:
ASTM A-193 Grade B8, ASTM A-194 Grade 8, ASTM A-536, ASTM A-536 Grade 65-45-12, ASTM D-2000
Application:
Diluted Acid, Mechanical, Mining, Plumbing
Coating:
Rust Inhibiting Painted
Collection:
Fig 7001
End Connection 1:
Grooved
End Connection 2:
Grooved
End Connections:
Grooved
FM Approved:
Yes
Fitting Size 1:
4 in
Fitting Size 2:
4 in
Fitting Sizes:
4 in
Fitting Type:
Coupling
ISO:
ISO 898-1 Class 8.8
Length:
2 in
Material:
Ductile Iron, Rubber
Material Type:
EPDM
Maximum Temperature:
350
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
1000
Pressure - Maximum:
1000 psi
Range (in):
0.00 in - 0.09375 in
Schedule Class:
40
UL Listed:
Yes
UPC:
690291104879
Weight:
6.8 lb
