5 x 4 in. Rust Inhibiting Painted Gasket Ductile Iron Reducing Coupling

Gruvlok

Fig 7010 5 x 4 in. Rust Inhibiting Painted Gasket Ductile Iron Reducing Coupling

  • Fast #
  • Part #G0390008944
  • Item #9282140
  • Manufacturer Part #0390008944
5 out of 5 Customer Rating
Brand image

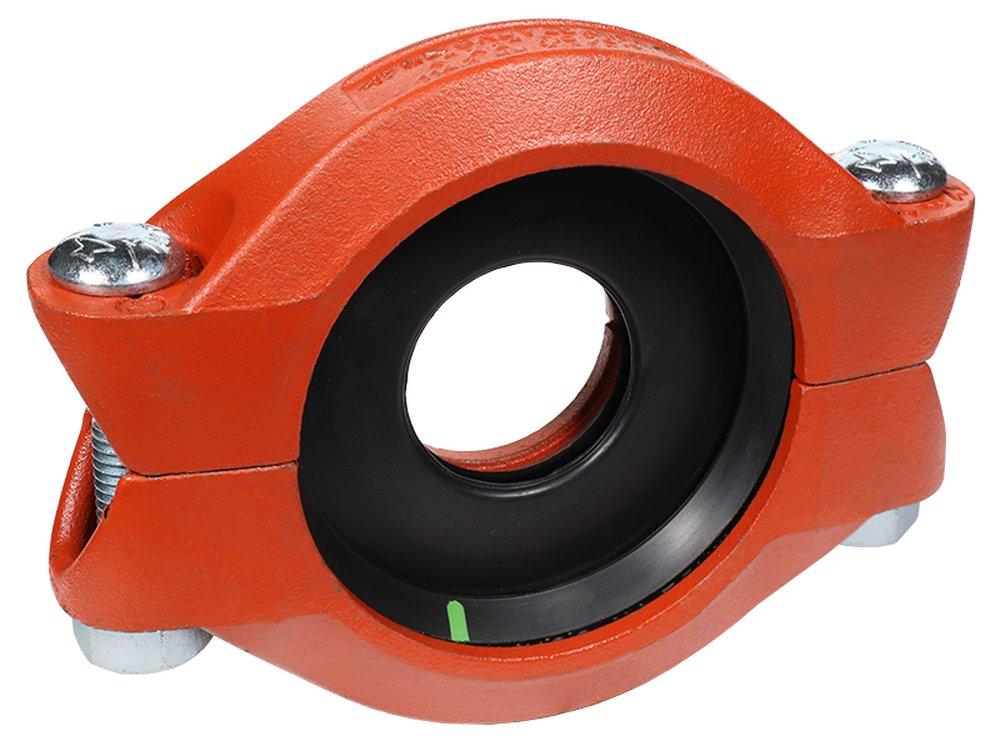

Gruvlok Orange Rust Inhibiting Painted Gasket Ductile Iron Reducing Coupling
Gruvlok Orange Rust Inhibiting Painted Gasket Ductile Iron Reducing Coupling
Gruvlok

Fig 7010 5 x 4 in. Rust Inhibiting Painted Gasket Ductile Iron Reducing Coupling

  • Fast #
  • Part #G0390008944
  • Item #9282140
  • Manufacturer Part #0390008944
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

View All Sizes

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in OH

All Sizes

Product Details

Product Details

  • The Fig. 7010 reducing coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting
  • The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly
  • Fig. 7010 reducing coupling allows for working pressure ratings up to 500 psi (34.5 bar)
  • Not recommended for vacuum applications
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 61
ASTM:
ASTM A-183, ASTM A-193 Grade B8, ASTM A-194 Grade 8, ASTM A-536 Grade 65-45-12, ASTM A-563 Grade A, ASTM B-633, ASTM D-2000
Application:
Air, Oil, Petroleum
Coating:
Rust Inhibiting Painted
Collection:
Fig 7010
End Connection 1:
Gasket
End Connection 2:
Gasket
End Connections:
Gasket
FM Approved:
Yes
Fitting Size 1:
5
Fitting Size 2:
4
Fitting Sizes:
5 in x 4 in
Fitting Type:
Coupling
ISO:
ISO 898-1 Class 8.8, ISO 898-2 Class 8.8
Length:
2-1/8
Material:
Ductile Iron, Rubber, Stainless Steel, Zinc Plated
Material Type:
304, Nitrile
Maximum Temperature:
230
NSF:
NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
500
Pressure - Maximum:
500 psi
UL Listed:
Yes
UPC:
690291105609
Weight:
11.4
