2-1/2 in. Grooved x Flanged 300 psi Rust Inhibiting Painted Ductile Iron Coupling Adapter

Gruvlok

Fig 7012 2-1/2 in. Grooved x Flanged 300 psi Rust Inhibiting Painted Ductile Iron Coupling Adapter

  • Fast #
  • Part #G0390201028
  • Item #841579
  • Manufacturer Part #0390201028
4.3 out of 5 Customer Rating
Brand image

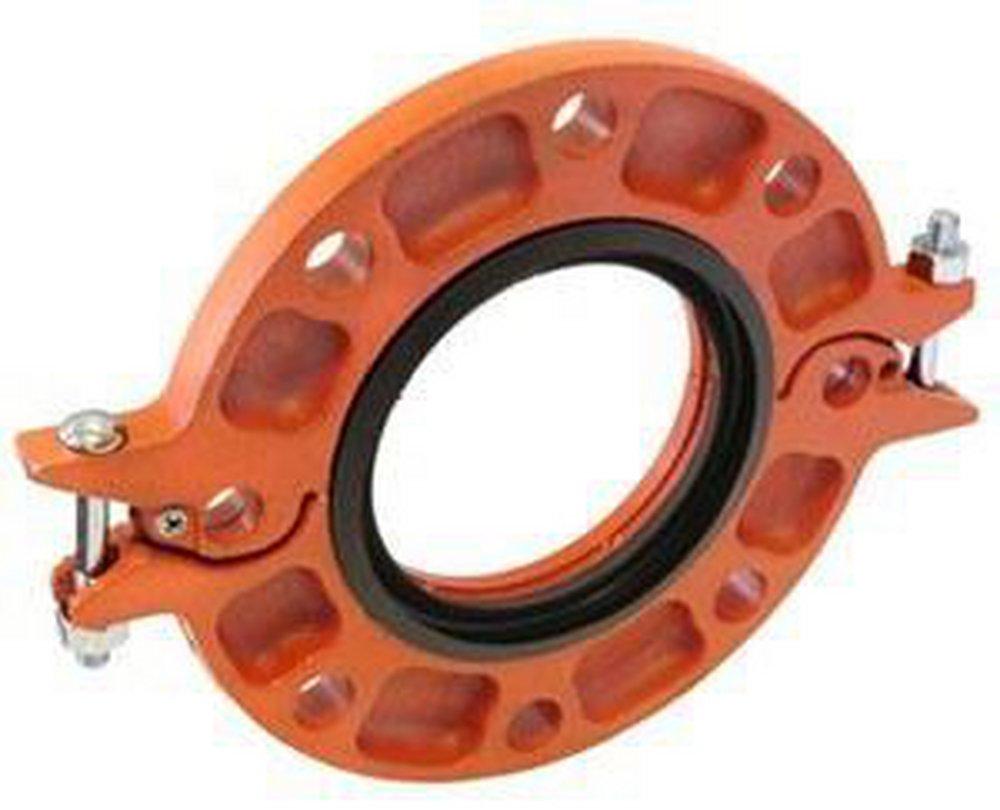

Gruvlok Orange Grooved x Flanged 300 psi Rust Inhibiting Painted Ductile Iron Coupling Adapter
Gruvlok Orange Grooved x Flanged 300 psi Rust Inhibiting Painted Ductile Iron Coupling Adapter
Gruvlok

Fig 7012 2-1/2 in. Grooved x Flanged 300 psi Rust Inhibiting Painted Ductile Iron Coupling Adapter

  • Fast #
  • Part #G0390201028
  • Item #841579
  • Manufacturer Part #0390201028
4.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

View All Sizes

Package Quantity Info:

Each: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available Nearby
    0  in  Hilliard, OH
    Available in 1 store nearby
  • Shipping Available
    Available for immediate shipment

All Sizes

Product Details

Product Details

  • The Gruvlok® Fig. 7012 flange allows direct connection of class 125 or class 150 flanged components to a grooved piping system
  • The two interlocking halves of the 2 in. thru 12 in. sizes of the Gruvlok flange are hinged for ease of handling, and are drawn together by a latch bolt, which eases assembly on the pipe
  • Precision machined bolt holes, key and mating surfaces assure concentricity and flatness to provide exact fit-up with flanged, lug, and wafer styles of pipe system equipment
  • A specially designed gasket provides a leak-tight seal on both the pipe and the mating flange face
  • All Gruvlok Fig. 7012 flanges have designed-in anti-rotation tines which bite into and grip the sides of the pipe grooves to provide a secure, rigid connection
  • The Gruvlok Fig. 7012 Flange requires the use of a steel adapter insert when used against rubber faced surfaces, wafer/lug design valves and serrated or irregular sealing surfaces
  • In copper systems a phenolic adapter insert is required, in place of the steel adapter insert
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 125, ANSI 150, ANSI 61
ASME:
ASME B16.5
ASTM:
ASTM A-536, ASTM A-536 Grade 65-45-12, ASTM D-2000
Application:
Alkalies Solutions, Chemical Services, Diluted Acid, Oil-Free Air, Water Service
Coating:
Rust Inhibiting Painted
Collection:
Fig 7012
End Connection 1:
Grooved
End Connection 2:
Flanged
End Connections:
Grooved x Flanged
FM Approved:
Yes
Fitting Size 1:
2-1/2 in
Fitting Size 2:
2-1/2 in
Fitting Sizes:
2-1/2 in
Fitting Type:
Coupling Adapter, Straight, Gasket
Length:
9-1/2 in
Material:
Ductile Iron, Rubber
Material Type:
EPDM
NSF:
NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure - Maximum:
1948 psi
UL Listed:
Yes
UPC:
690291114625
