2-1/2 x 2-1/2 in. Threaded Malleable Iron Clamp-T with FTP Branch

Gruvlok

Fig 7045 2-1/2 x 2-1/2 in. Threaded Malleable Iron Clamp-T with FTP Branch

  • Fast #
  • Part #G0390171064
  • Item #9293545
  • Manufacturer Part #0390171064
4.4 out of 5 Customer Rating
Brand image

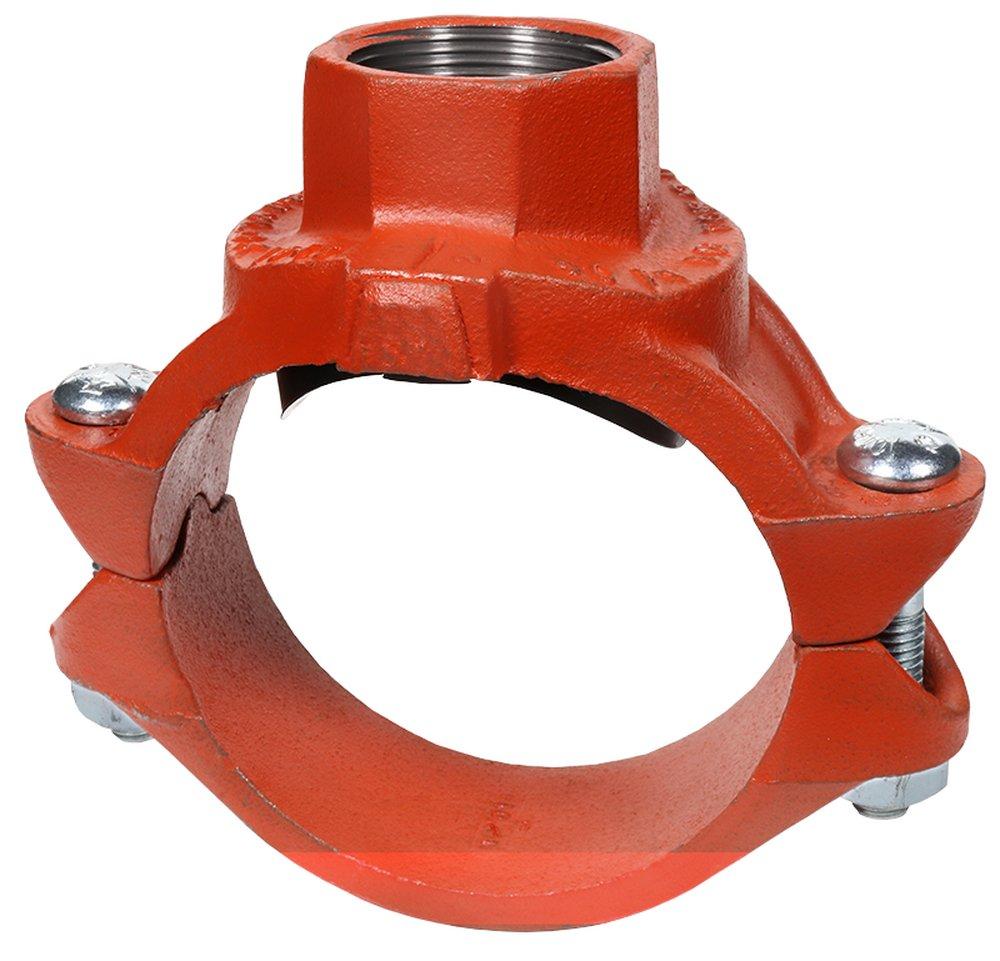

Gruvlok Orange 5-1/4 in. FPT Rust Inhibiting Painted Ductile Iron Tee
Gruvlok Orange 5-1/4 in. FPT Rust Inhibiting Painted Ductile Iron Tee
Gruvlok

Fig 7045 2-1/2 x 2-1/2 in. Threaded Malleable Iron Clamp-T with FTP Branch

  • Fast #
  • Part #G0390171064
  • Item #9293545
  • Manufacturer Part #0390171064
4.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

View All Sizes

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

All Sizes

Product Details

Product Details

  • The Gruvlok clamp-t provides a quick and easy outlet at any location along the pipe
  • The full, smooth outlet area provides for optimum flow characteristics
  • The clamp-t housing is specially engineered to conform to the pipe O.D. and the clamp-t gasket providing a leak tight reliable seal in both positive pressure and vacuum conditions
  • The maximum working pressure for all sizes is 500 psi (34.5 bar) when assembled on standard wall steel pipe
  • The Gruvlok clamp-t provides for a branch or cross connection in light wall or standard wall steel pipe
  • The fig. 7045 clamp-t female pipe thread branch is available with NPT or ISO 7/1 connection
  • Clamp-t cross connections are available in various sizes allowing greater versatility in piping design
  • A hole drilled or cut in the pipe to receive the locating collar of the clamp-T is all that is required
  • Requires Certification

Specifications

ANSI:
ANSI 61
ASTM:
ASTM A-536 Grade 65-45-12, ASTM A-563 Grade A, ASTM D-2000
Application:
Alkalies Solutions, Chemical Services, Diluted Acid, Oil-Free Air, Water Service
Coating:
Rust Inhibiting Painted
Collection:
Fig 7045
Color Finish Name:
Orange
End Connection 1:
FNPT
End Connections:
FNPT
FM Approved:
Yes
Fits Pipe Size:
2-1/2 in
Fitting Size 1:
1/2 in
Fitting Sizes:
1/2 in
Fitting Type:
Clamp Tee
IAPMO Listed:
Yes
ISO:
ISO 7/1, ISO 898-1 Class 8.8, ISO 898-2 Class 8.8
Length:
3 in
Material:
Ductile Iron, Rubber
Material Type:
EPDM
NSF:
NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure Class:
500#
Schedule Class:
40
Temperature Range:
-40 to 230 Deg F (-40 to 110 Deg C)
UL Listed:
Yes
UPC:
690291113178
Width:
5-1/2 in
