4 in. Hot Dipped Galvanized Gasket Ductile Iron Coupling

Gruvlok

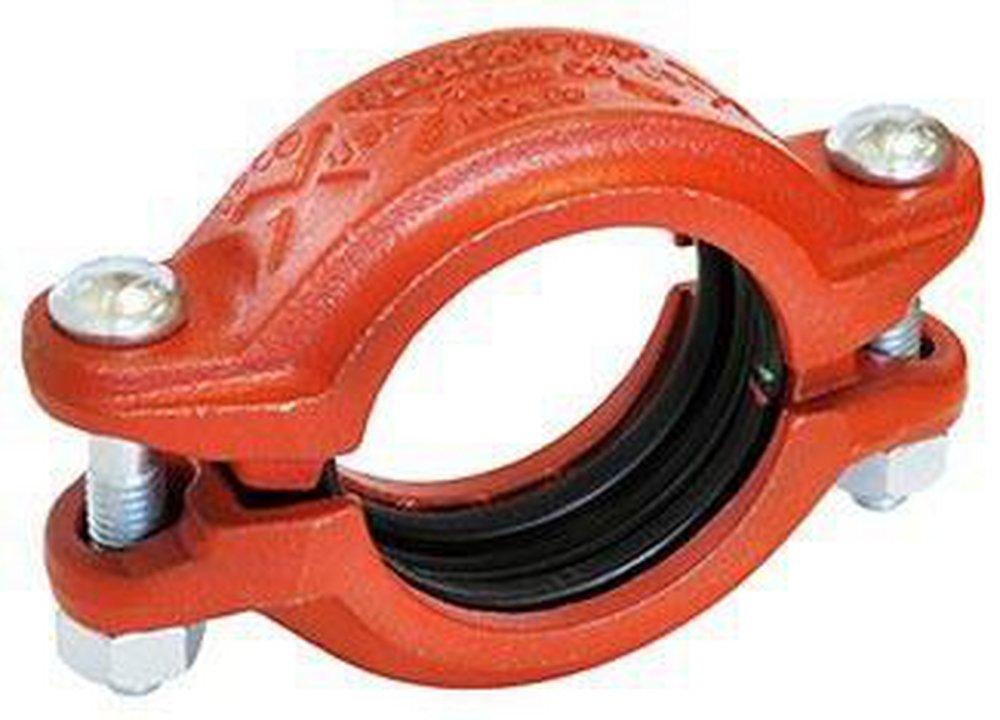

Fig 74 SlideLOK® 4 in. Hot Dipped Galvanized Gasket Ductile Iron Coupling

  • Fast #
  • Part #G0390113066
  • Item #9293524
  • Manufacturer Part #0390113066
4.1 out of 5 Customer Rating
Brand image
Gruvlok Hot Dipped Galvanized Gasket Ductile Iron Coupling
Gruvlok Hot Dipped Galvanized Gasket Ductile Iron Coupling
Gruvlok

Fig 74 SlideLOK® 4 in. Hot Dipped Galvanized Gasket Ductile Iron Coupling

  • Fast #
  • Part #G0390113066
  • Item #9293524
  • Manufacturer Part #0390113066
4.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

View All Sizes

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 10 Pallet: 270
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Available Nearby
    0  in  Abilene, TX
    Available in 1 store nearby
    Pick Up  Not Available
    Not available in TX
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in TX

All Sizes

Product Details

Product Details

  • The SlideLOK coupling is the most rigid ready for installation coupling designed to reduce installation time
  • The SlideLOK coupling is designed to be used with roll groove or cut groove steel pipe, grooved light wall pipe, Gruvlok grooved-end fittings, and valves
  • The SlideLOK coupling allows for pressures between full vacuum and 750 psi on roll or cut grooved carbon steel standard wall pipe
  • The SlideLOK coupling provides a rigid connection allowing pipe hanging practices per ASME B31 pipe codes
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 61-G
ASME:
ASME B31
ASTM:
ASTM A-183, ASTM A-193 Grade B8, ASTM A-194 Grade 8, ASTM A-536 Grade 65-45-12, ASTM A-563 Grade A, ASTM B-633, ASTM D-2000
Application:
Chemical, Diluted Acid, Water Service
Coating:
Hot Dipped Galvanized, Zinc Plated
Collection:
Fig 74 SlideLOK®
End Connection 1:
Gasket
End Connection 2:
Gasket
End Connections:
Gasket
FM Approved:
No
Fitting Size 1:
4 in
Fitting Size 2:
4 in
Fitting Sizes:
4 in
Fitting Type:
Coupling
Length:
2 in
Material:
Ductile Iron, Rubber, Stainless Steel
Material Type:
304, EPDM
Maximum Temperature:
250
NSF:
NSF 61-G
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
750
Pressure - Maximum:
750 psi
Range (in):
0.00 in - 0.09375 in
UL Listed:
No
UPC:
662428007872
Weight:
4.9 lb
