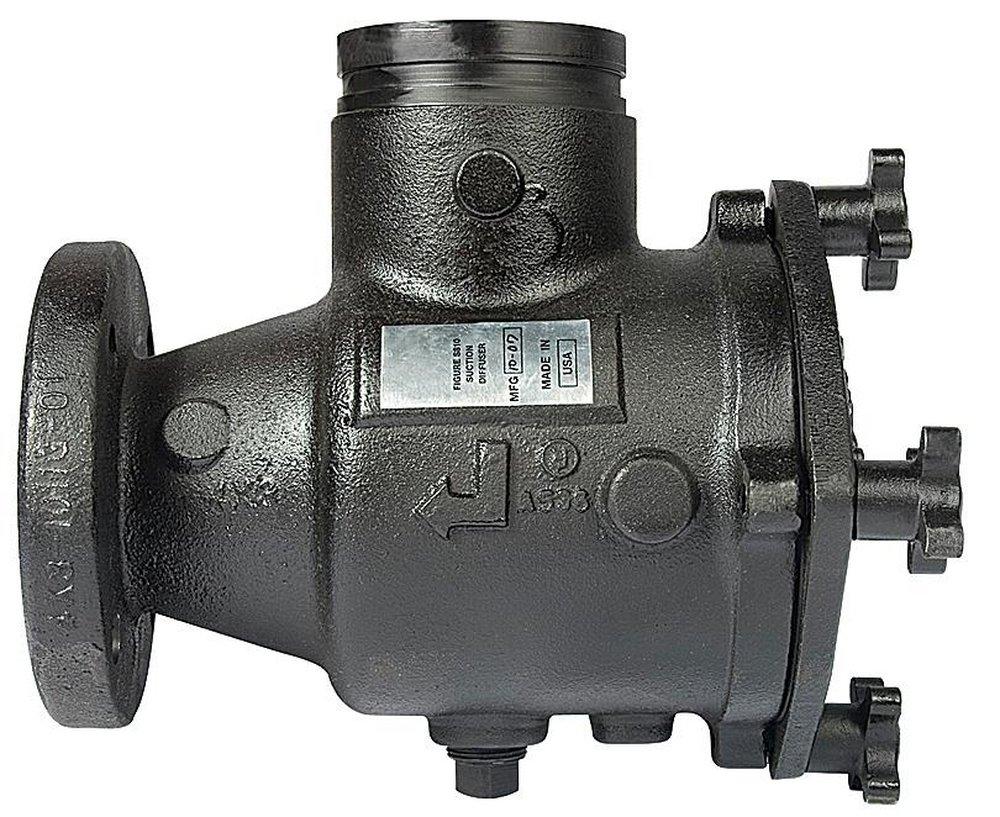

12 x 10 in. Grooved x Flanged Ductile Iron Suction Diffuser

Gruvlok

Fig S810 12 x 10 in. Grooved x Flanged Ductile Iron Suction Diffuser

  • Fast #
  • Part #G1330026810
  • Item #9288579
  • Manufacturer Part #1330026810
3.5 out of 5 Customer Rating
Brand image
12 x 10 in. Grooved x Flanged Ductile Iron Suction Diffuser
12 x 10 in. Grooved x Flanged Ductile Iron Suction Diffuser
Gruvlok

Fig S810 12 x 10 in. Grooved x Flanged Ductile Iron Suction Diffuser

  • Fast #
  • Part #G1330026810
  • Item #9288579
  • Manufacturer Part #1330026810
3.5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • The Figure S810 suction diffuser is compact and rugged for direct mounting to the suction side of a pump in either a horizontal or vertical position
  • In addition to removing foreign particles, the Figure S810 also provides proper flow conditions to the pump
  • Where space is limited, the Figure S810 can be used to replace the straight pipe normally required to reduce turbulence
  • The Figure S810 suction diffuser can be used for primary or additional strainer protection, especially for controls, meters and other rotating equipment
  • The Figure S810 suction diffuser’s permanent perforated stainless steel screen helps remove foreign particles. The inlet end is suitable for installation with Gruvlok couplings
  • The outlet end is provided with a Class 150 ANSI flat face flange
  • The large 5 to 1 open area ratio and the blow-off mean minimum servicing with easy draining and flushing
  • Quick opening knobs minimize down time on sizes 3 in. x 2 in. thru 10 in. x 8 in. (larger sizes are provided with stud/nut arrangement)
  • Sealing between body and cover is accomplished by using an EPDM O-ring
  • Straightening vanes in the diffuser outlet reduce turbulence so that stress and erosion on the pump is minimized
  • Requires Certification

Specifications

Bore Size:
12
Brand Model Compatibility:
GMS810
CSA Certified:
No
Collection:
Fig S810
Color Finish Name:
Black
Discharge:
12 in
End Connection 1:
Grooved
End Connection 2:
Flanged
End Connections:
Grooved x Flanged
Fitting Size 1:
12 in
Fitting Size 2:
10 in
Fitting Sizes:
12 in x 10 in
Length:
26-19/50 in
Material:
Carbon Steel, Ductile Iron, Rubber, Stainless Steel
Material Type:
304, EPDM
NSF Certified:
No
UL Listed:
No
UPC:
662428977151
