2 in. Stainless Steel Grooved EPDM 10 Position Locking Lever Handle Butterfly Valve

Gruvlok

Model B480 2 in. Stainless Steel Grooved EPDM 10 Position Locking Lever Handle Butterfly Valve

  • Fast #
  • Part #G1330025935
  • Item #9288641
  • Manufacturer Part #1330025935
5 out of 5 Customer Rating
Brand image

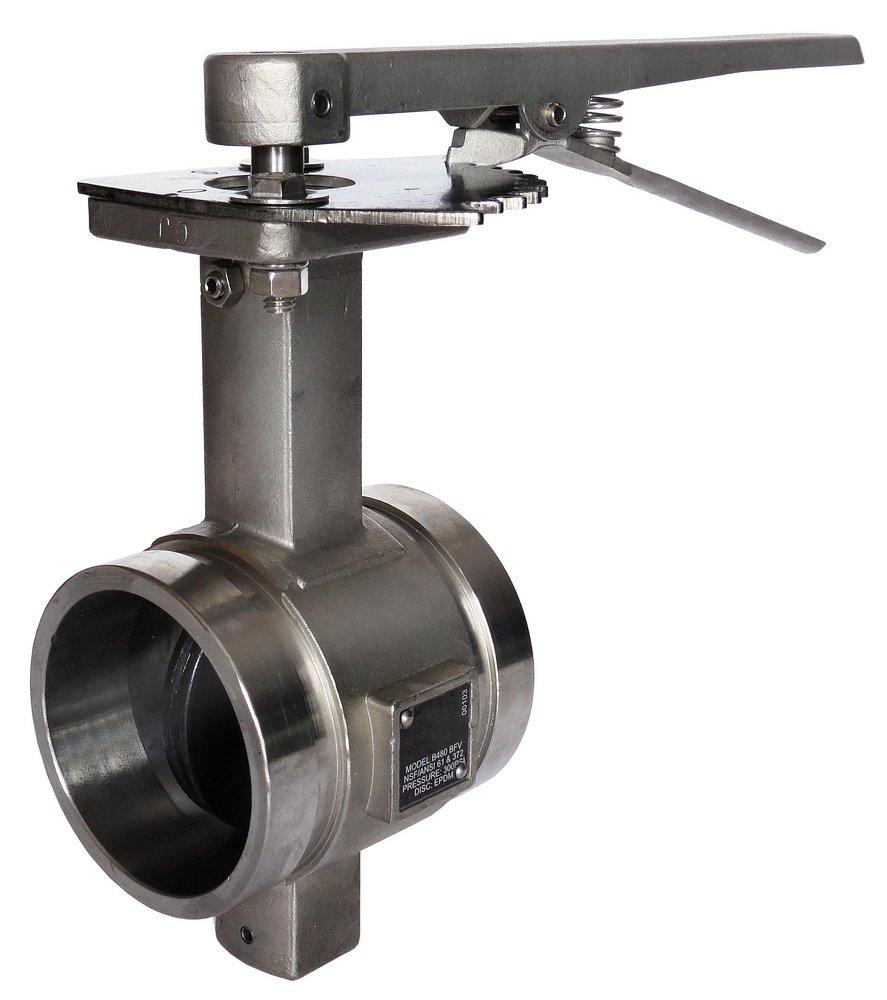

Gruvlok Stainless Steel Grooved EPDM 10 Position Locking Lever Handle Butterfly Valve
Gruvlok Stainless Steel Grooved EPDM 10 Position Locking Lever Handle Butterfly Valve
Gruvlok

Model B480 2 in. Stainless Steel Grooved EPDM 10 Position Locking Lever Handle Butterfly Valve

  • Fast #
  • Part #G1330025935
  • Item #9288641
  • Manufacturer Part #1330025935
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • The model B480 grooved end stainless steel butterfly valve with lever handle
  • Stainless steel butterfly valve designed for 300 psi service, supplied with a 10-position locking lever handle
  • The end-to-end dimensions conform to MSS SP-67
  • The body is investment cast in grade CF8M (type 316) to ASTM A743 with integral neck and ISO mounting top flange
  • The neck height allows for pipe insulation up to two inches thick
  • The model B480 stainless steel butterfly valves with standard disc and grade "EN” EPDM seat are UL classified to ANSI/NSF 61 and ANSI/NSF 372
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 372, ANSI 61
ASTM:
ASTM A351, ASTM A582, ASTM A743, ASTM A744
CSA Certified:
No
Clean Bagged:
No
Collection:
Model B480
End Connection 1:
Grooved
End Connection 2:
Grooved
End Connections:
Grooved
FM Approved:
No
IAPMO Listed:
Yes
Length:
3-19/100 in
MSS:
MSS SP-67
Material:
Stainless Steel, Rubber
Material Type:
316, EPDM
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Global
Pressure - High:
300
Recommended Valve Application:
Acid, Alkali, Chemical, Oil-Free Air, Water
UL Listed:
Yes
UPC:
662428975409
Valve Body Material:
Stainless Steel
Valve Body Style:
Grooved
Valve Disc Material:
Stainless Steel
Valve Operator:
Lever Handle
Valve Seat Material:
EPDM
Valve Size:
2 in
Valve Stem:
Blowout-proof
Valve Type:
Butterfly Valve
Width:
2-3/4 in
