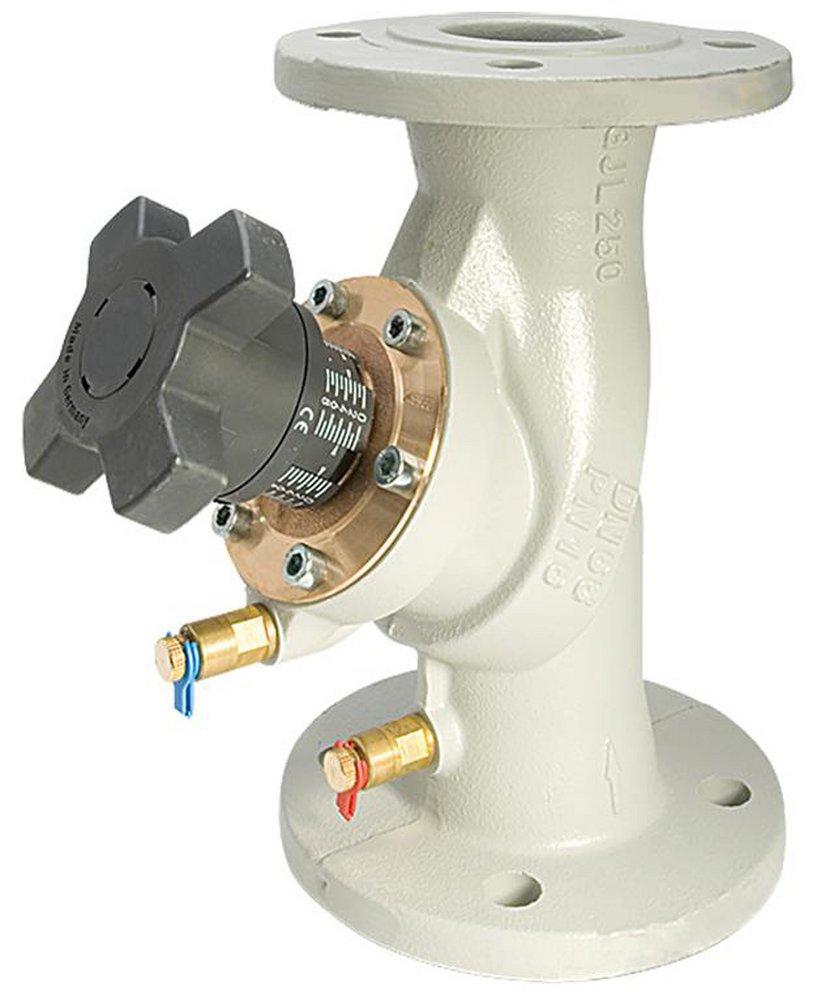

10 in. Flanged Hydronic Pressure Regulating Valve Cast Iron, Brass and Rubber

Gruvlok

Model CB800 10 in. Flanged Hydronic Pressure Regulating Valve Cast Iron, Brass and Rubber

  • Fast #
  • Part #G1330026395
  • Item #9317847
  • Manufacturer Part #1330026395
3.6 out of 5 Customer Rating
Brand image
10 in. Flanged Hydronic Pressure Regulating Valve Cast Iron, Brass and Rubber
10 in. Flanged Hydronic Pressure Regulating Valve Cast Iron, Brass and Rubber
Gruvlok

Model CB800 10 in. Flanged Hydronic Pressure Regulating Valve Cast Iron, Brass and Rubber

  • Fast #
  • Part #G1330026395
  • Item #9317847
  • Manufacturer Part #1330026395
3.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment
Looking for compatible parts?

Product Details

Product Details

  • Model CB800 circuit balancing valves are designed to achieve accurate and efficient balancing of hydronic heating or cooling systems
  • Circuit balancing valves provide superior accuracy in measuring flows rather than ball type circuit setters
  • The CB800 valve serves 5 functions: Throttling, measuring differential pressure, draining, filling and positive shutoff
  • These valves are rated at 300 psi (20.7 bar) at 300° F (150 ° C)
  • Flanged (125#) and grooved connections are available for sizes 2-1/2 in. – 12 in. (65mm – 300mm) with cast iron bodies
  • The Y-pattern style provides low pressure drop
  • The globe style valve allows for precise throttling
  • The easy-to-adjust digital/vernier handwheel provides a minimum of 70 unique handwheel positions
  • The handwheel and test ports are located on one side for easy access
  • A built-in memory stop ensures the setting can be returned to a balanced position after shutoff
  • Requires Certification

Documents

WARRANTY

Specifications

ANSI:
ANSI Class 125
Brand Model Compatibility:
GMCB800
CSA Certified:
No
Collection:
Model CB800
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
Energy Star Most Efficient:
No
Flow Rate:
1298 gpm
IAPMO Listed:
No
Length:
28-3/4 in
Material:
Cast Iron, Brass, Rubber
NSF Certified:
No
Origin:
Global
Pressure Class:
125#
UPC:
662428976321
Valve Body Material:
Cast Iron
Valve Body Style:
Y Pattern
Valve Disc Material:
Bronze
Valve Operator:
Hand Wheel
Valve Seat Material:
EPDM
Valve Size:
10 in
Valve Type:
Circuit Balancing Valve
