2-1/2 in. Rust Inhibiting Painted Grooved 0.00 - 0.13 in. Coupling

You last purchased this on

Gruvlok

SlideFLEX™ Fig 70 2-1/2 in. Rust Inhibiting Painted Grooved 0.00 - 0.13 in. Coupling

  • Fast #
  • Part #G0390010402
  • Item #10158752
  • Manufacturer Part #0390010402
5 out of 5 Customer Rating
Brand image
14 PTD R-LOK RGD GRV COUP E 7401
You last purchased this on

Gruvlok

SlideFLEX™ Fig 70 2-1/2 in. Rust Inhibiting Painted Grooved 0.00 - 0.13 in. Coupling

  • Fast #
  • Part #G0390010402
  • Item #10158752
  • Manufacturer Part #0390010402
5 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
View All Sizes

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

All Sizes

Frequently Purchased Together

Product Details

Product Details

  • The fig 7401 Rigidlok coupling utilizes a technologically advanced housing design that conforms to and grips the pipe
  • Coupling installation is fast and easy, remove only one nut and swing the housing over the gasket and into the grooves. The exclusive Guidelok feature automatically separates the grooved pipe ends and guides the coupling into position as the bolts are tightened
  • Precisely sized and oriented tines in the housing key section firmly grip the pipe. The combination of these designed in features produce a secure, rigid pipe joint connection

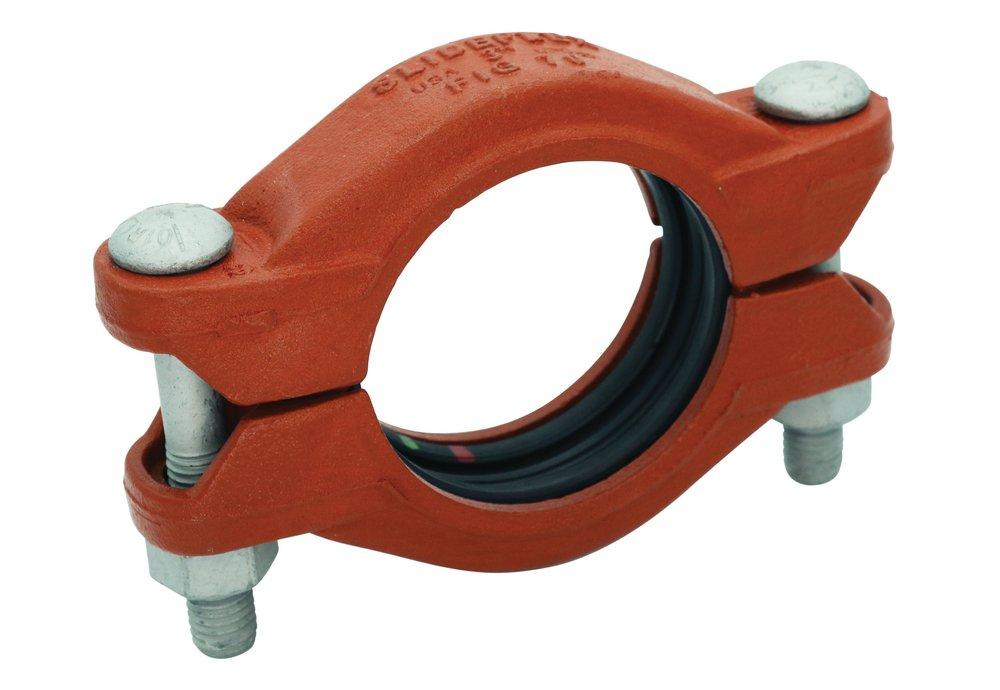

  • Fig. 70 Gruvlok SlideFLEX coupling is a lightweight, high-performance, ready-for-installation coupling
  • The slide action eases assembly time and effort and the patented gasket provides four separate sealing surfaces for added protection
  • The SlideFLEX fig 70 coupling is designed to be used with roll groove or cut groove steel pipe, grooved light wall pipe, Gruvlok grooved-end fittings, and valves
  • It allows for pressures between full vacuum up to 1000 psi on roll or cut grooved carbon steel standard wall pipe
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 372, ANSI 61
ASME:
ASME B36.10
ASTM:
ASTM A-536 Grade 65-45-12, ASTM A-563, ASTM D-2000
Coating:
Rust Inhibiting Painted
Collection:
SlideFLEX™ Fig 70
End Connection 1:
Grooved
End Connection 2:
Grooved
End Connections:
Grooved
Fitting Size 1:
2-1/2 in
Fitting Size 2:
2-1/2 in
Fitting Sizes:
2-1/2 in
Fitting Type:
Coupling, Straight
Length:
7-3/20 in
Material:
Ductile Iron, Rubber
Material Type:
EPDM
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
1000
Pressure - Maximum:
750 psi
Range (in):
0.00 in - 0.13 in
Schedule Class:
10, 40
Weight:
4.15 lb
