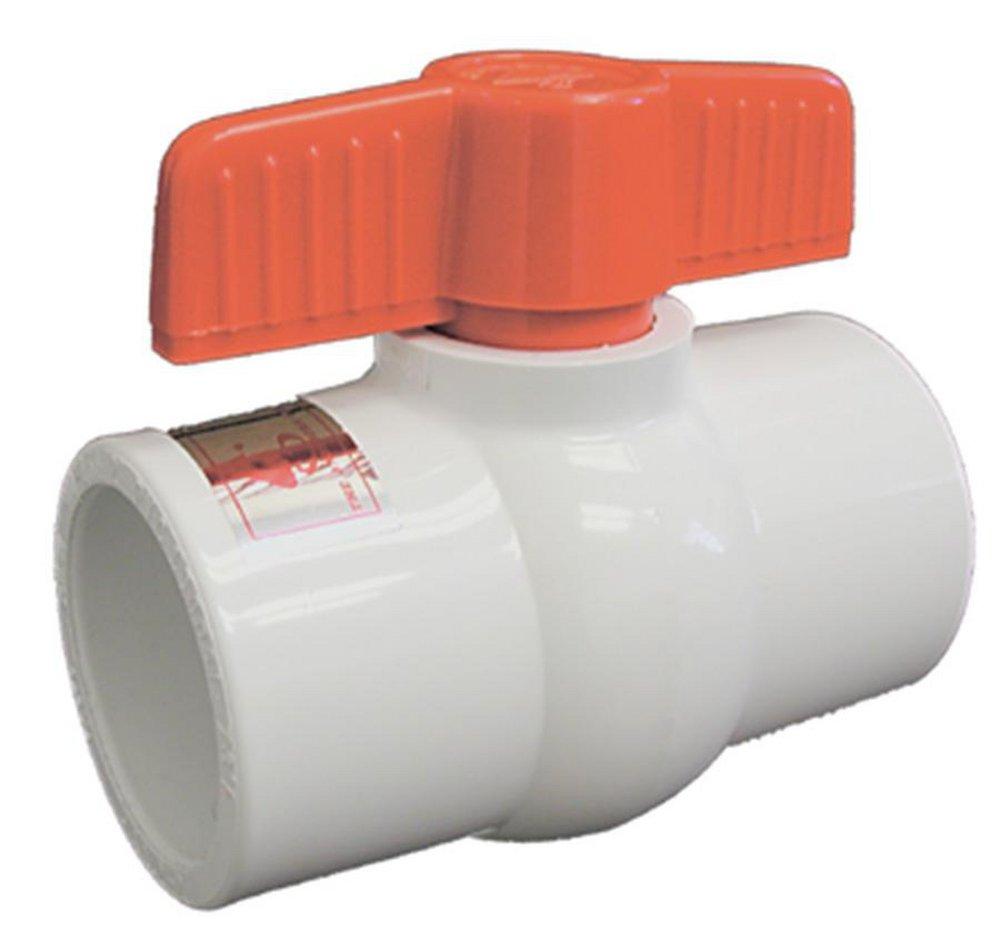

3/4 in. Plastic Slip Ball Valve
Harvard
3/4 in. Plastic Slip Ball Valve
Package Quantity Info:
Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Harvard
3/4 in. Plastic Slip Ball Valve
CMIP75C
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Made with Flo Guard Gold CPVC material
- Heavy duty thermoplastic CPVC construction for hot water use
- NSF listed
- Meets ASTM 2467 schedule 80
- CTS slip x slip - cream body, orange handle
- PTFE seats providing excellent chemical resistance
- EPDM O-ring stem seal
- Maintenance free compact design
- Severe shock loads & misalignment stress are absorbed by the valve body, not the ball & seat, minimizing the chance of uneven wear & leakage
- Individually cartoned
Documents
Specifications
- ANSI:
- ANSI 372
- ASTM:
- ASTM 2467
- Clean Bagged:
- No
- Color Finish Name:
- White, Red
- End Connection 1:
- Slip
- End Connection 2:
- Slip
- End Connections:
- Slip
- FM Approved:
- No
- Fire Suppression System Rated:
- No
- Handle Material:
- ABS
- Height:
- 2-21/50 in
- IAPMO Listed:
- No
- ISO:
- ISO 9002
- Length:
- 3-6/25 in
- MA Approved:
- No
- Material:
- Plastic
- Material Type:
- CPVC
- NSF:
- NSF 372
- NSF Certified:
- Yes
- Pressure - High:
- 75
- Schedule Class:
- 80S
- UL Listed:
- No
- UPC:
- 642026001427
- Valve Seat Material:
- PTFE
- Valve Size:
- 3/4 in
- Valve Type:
- Ball Valve
- Weight:
- 0.2 lb
- Width:
- 1-12/25 in
- cUPC Certified:
- No
