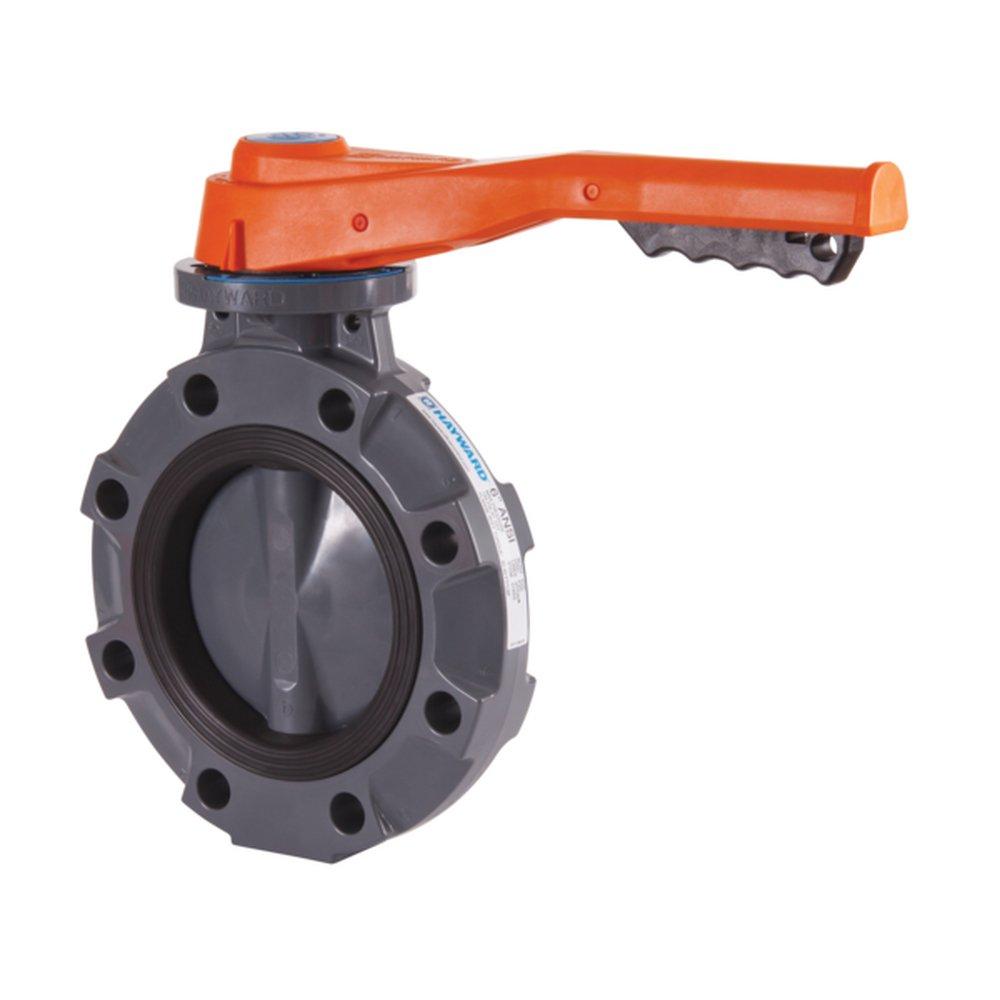

2 in. Plastic Flanged EPDM Locking Lever Handle Butterfly Valve
Hayward
BYV Series 2 in. Plastic Flanged EPDM Locking Lever Handle Butterfly Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Hayward
BYV Series
2 in. Plastic Flanged EPDM Locking Lever Handle Butterfly Valve
BYV11020A0EL00
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- One piece injection molded PVC, CPVC or GFPP body
- PVC, CPVC, GFPP or PVDF disc materials
- Hand lever with 19 lockable stop positions & 360° interlocking splines
- External disc position and flow indication
- Hydro-dynamic centric disc for increased flow performance
- Over-sized liner face maximizes surface contact with flanges
- 1-piece 316 stainless steel stem with threaded retaining gland
- Stem bearing and seal retainer for absolute stem position and seal
- ISO 5211 top flange and stem drive
- All sizes meet ANSI B16.10 / ISO 5752 narrow face-to-face dimensions
Specifications
- ANSI:
- ANSI 372, ANSI 61, ANSI B16.10
- ASME:
- ASME B16.10 Class 150, ASME B16.5 Class 150
- ASTM:
- ASTM D1784
- Collection:
- BYV Series
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Height:
- 7-53/100 in
- ISO:
- ISO 5211, ISO 5752
- Material:
- Plastic, Rubber
- Material Type:
- EPDM, PVC
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure Class:
- 150#
- Valve Body Material:
- PVC
- Valve Body Style:
- 1 piece
- Valve Operator:
- Locking Lever Handle
- Valve Seat Material:
- EPDM
- Valve Size:
- 2 in
- Valve Type:
- Butterfly Valve
