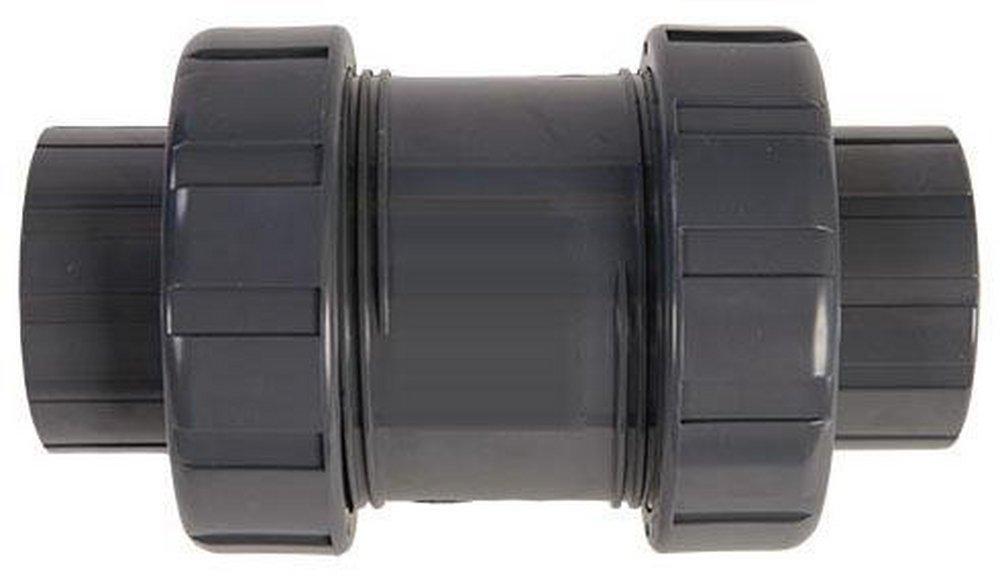

1 in. Plastic FNPT x Socket Weld Ball Check Valve
Hayward
TC Series 1 in. Plastic FNPT x Socket Weld Ball Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Hayward
TC Series
1 in. Plastic FNPT x Socket Weld Ball Check Valve
TC10100STE
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- True union, Full Port
- Easily converts to foot valve and strainer
- All PVC construction means no corrosion, no jamming or sticking
- Hayward ball check valves feature a unique square-cut PTFE seat to seal at low backpressure (2 psi) and they can be mounted either vertically or horizontally except down flow
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
Socket Weld
End Connections
FPT x Socket Weld
Height
3 in
Length
5-1/4 in
Pressure Class
235#
Valve Size
1 in
Weight
1.25 lb
Characteristics & Features
Collection
TC Series
Installation Type
Horizontal Mount, Vertical Mount
Material
Plastic, Rubber
Material Type
EPDM, PVC
Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Valve Body Material
PVC
Valve Body Style
Inline
Valve Port Opening
Full Port
Valve Seat Material
EPDM
Valve Type
Ball Check Valve
Electrical & Operational Information
Maximum Temperature
140
Minimum Temperature
40
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASTM
ASTM D-1784, ASTM D-4101, ASTM F-2389
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Water
UL Listed
No
UPC
610377166256
