Threaded Hydronic Zone Valve 120 psi 200F 0.32 Amp Hydronics and Zoning
Honeywell Home

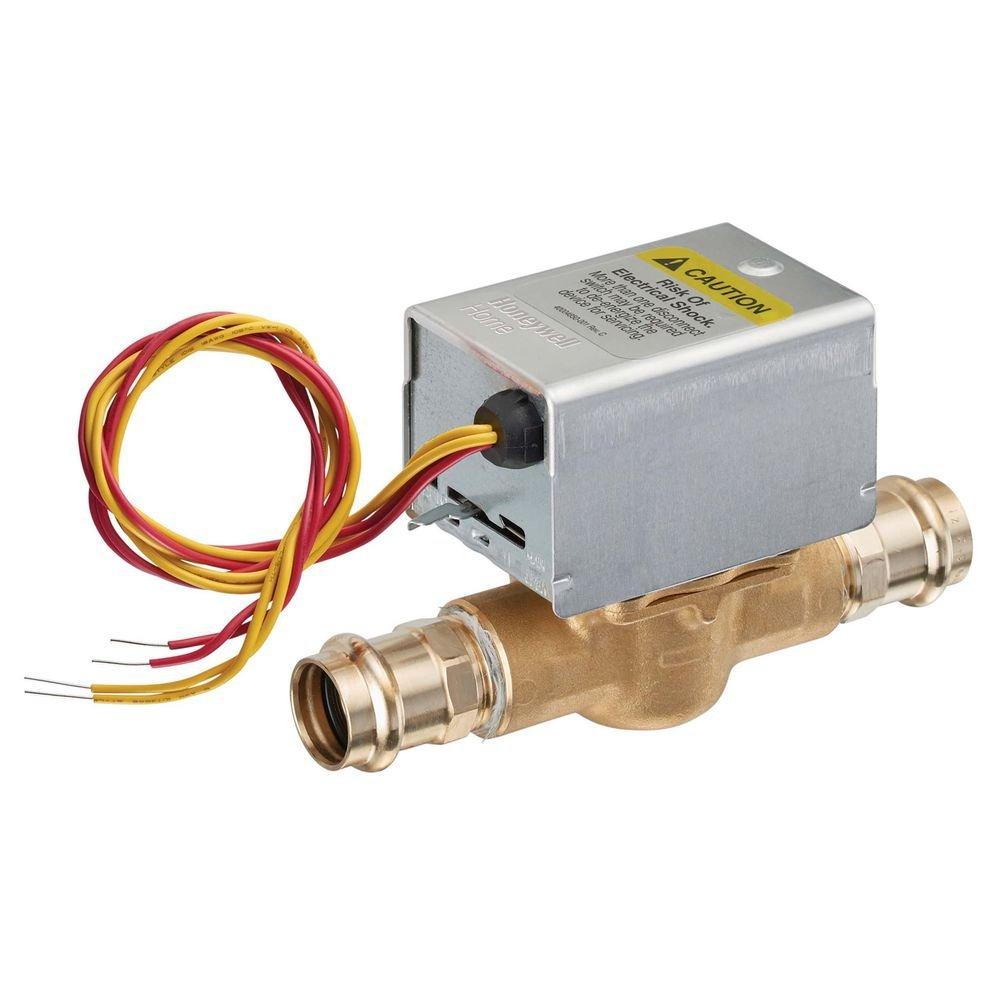

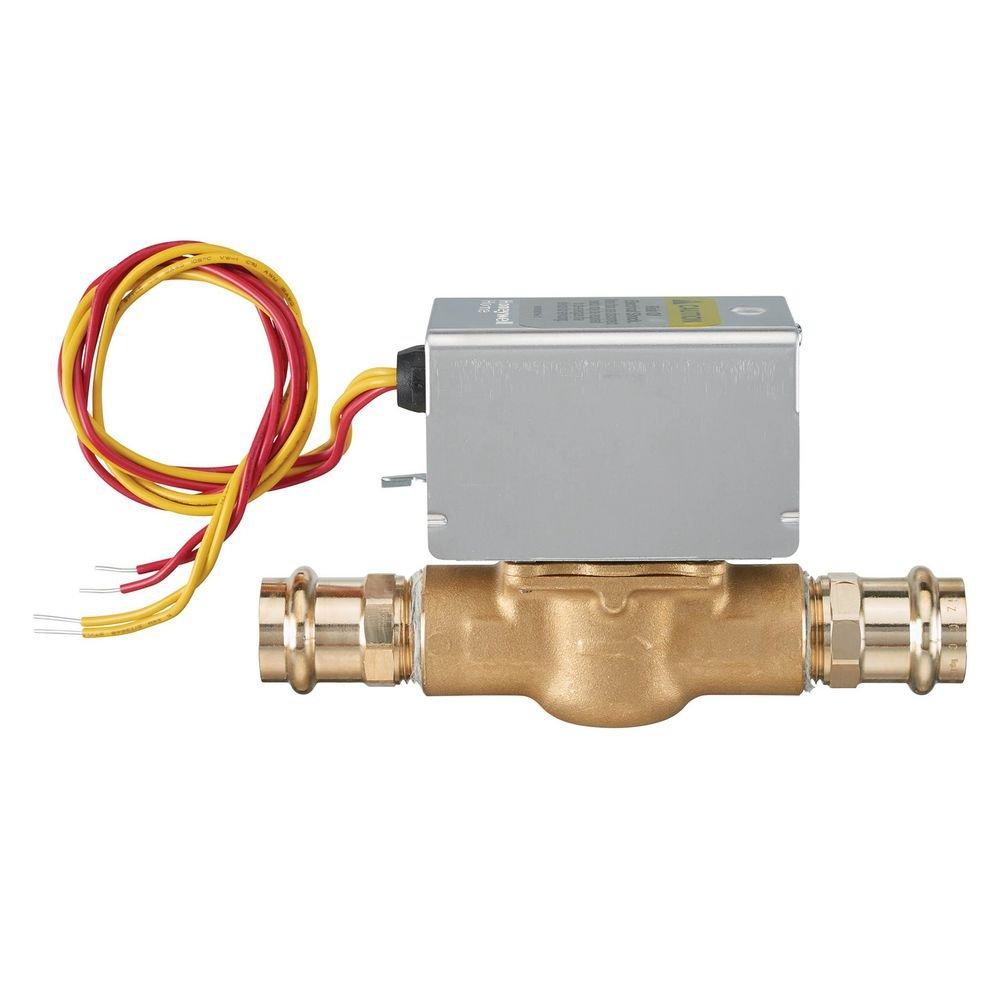

V8043E Threaded Hydronic Zone Valve 120 psi 200F 0.32 Amp Hydronics and Zoning
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 10 Pallet: 450Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Honeywell Home
V8043E
Threaded Hydronic Zone Valve 120 psi 200F 0.32 Amp Hydronics and Zoning
V8043E1411/U
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
Dimensions & Measurements
Depth
6-7/8 in
End Connection 1
Press
End Connection 2
Threaded
End Connections
Press x Threaded
Height
4 in
Length
6-5/12 in
Pressure - Maximum
120 psi
Valve Size
1/2 in
Width
2-1/3 in
Characteristics & Features
Collection
V8043E
Material
Brass, Rubber, Stainless Steel
Valve Body Material
Brass
Valve Body Style
2-way
Valve Material
Brass
Valve Seat Material
Brass
Electrical & Operational Information
AMP
0.32
Maximum Temperature
125
Minimum Temperature
40
Volts
24V
Warranty & Product Information
ANSI
UL Listed: File MH11826, CSA Certified: File 1322
CSA Certified
CSA 1322
FM Approved
Yes
IAPMO Listed
Yes
Origin
Global
Recommended Valve Application
Water, Steam
Type
U6X2510CG
UL Listed
Yes
UPC
085267836906
