This product requires certification to purchase.

1/2 in. Stainless Steel Full Port NPT 2000# Fire-Tite Vall Valve w/PTFE Seats

Jamesbury

Eliminator™ 1/2 in. Stainless Steel Full Port NPT 2000# Fire-Tite Vall Valve w/PTFE Seats

  • Fast #
  • Part #J9FB3600TT28D
  • Item #4926300
  • Manufacturer Part #MA0003699
3.1 out of 5 Customer Rating
Brand image

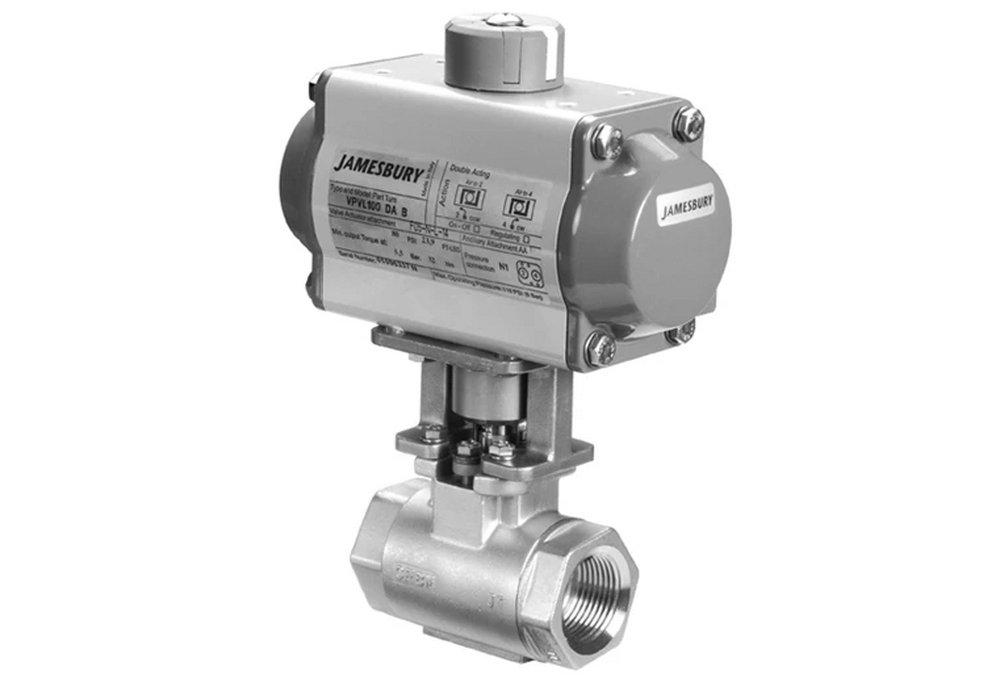

Jamesbury Stainless Steel Standard Port NPT 2000# Ball Valve
Jamesbury Stainless Steel Standard Port NPT 2000# Ball Valve
Jamesbury

Eliminator™ 1/2 in. Stainless Steel Full Port NPT 2000# Fire-Tite Vall Valve w/PTFE Seats

  • Fast #
  • Part #J9FB3600TT28D
  • Item #4926300
  • Manufacturer Part #MA0003699
3.1 out of 5 Customer Rating
X Points

Call for Pricing
Call for Pricing

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Xtreme seats provide longer life and expanded performance boundaries and greater value
  • Polymeric flexible lip-seat design offers tight shutoff in either direction and extended cycle life with minimum maintenance
  • Available to meet ASME class 600 standards per B16.34, B31.1, B31.3, B31.4 and API 608
  • Fire-Tite™ valves meet API 607 requirements
  • ASME class valves meet API 598 requirements
  • Patented stem seal system is live loaded and engineered to assure long seating life
  • ISO 5211 bonnet for Global conformity
  • Robust engineering design
  • Self relieving seat technology
  • High quality
  • Requires Certification

Specifications

ANSI:
ANSI Class 600
API:
API 598, API 607, API 608
ASME:
ASME B1.20.1, ASME B16.11, ASME B16.34, ASME B31.4, ASME Class 600
ASTM:
ASTM A-351 Grade CF8M
Clean Bagged:
No
Collection:
Eliminator™
End Connection 1:
NPT
End Connection 2:
NPT
End Connections:
NPT
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Stainless Steel
IAPMO Listed:
No
ISO:
ISO 5211
Length:
2-31/50 in
MA Approved:
No
MSS:
MSS SP-25
Material:
Stainless Steel
Material Type:
CF8M
NSF Certified:
No
Pressure Class:
2000#
Recommended Valve Application:
Fire Protection, Water
Temperature Range:
Up to 500 Deg F
UL Listed:
No
Valve Body Material:
316 Stainless Steel
Valve Body Style:
2 piece
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1/2 in
Valve Type:
Ball Valve
Volts:
120V
Weight:
1 lb
cUPC Certified:
No
