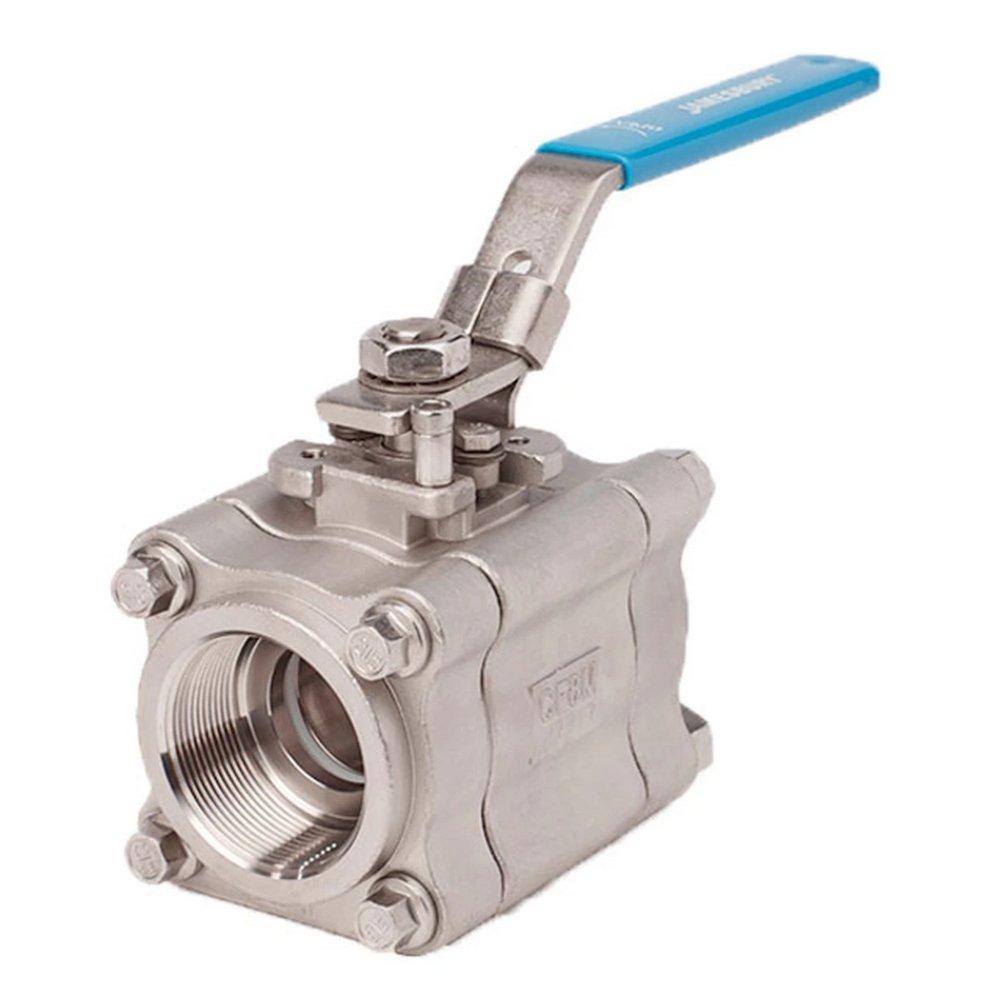

1/2 in. Stainless Steel Full Port Socket Weld CL800 Fire-Tite Ball Valve w/Xtreme Seats

Jamesbury

Series 4000 1/2 in. Stainless Steel Full Port Socket Weld CL800 Fire-Tite Ball Valve w/Xtreme Seats

  • Fast #
  • Part #J4DBTG3600XT2D
  • Item #7025670
  • Manufacturer Part #MA0129107
3.4 out of 5 Customer Rating
Brand image
1/2 SS CL800 SW FP XT BV TG
1/2 SS CL800 SW FP XT BV TG
Jamesbury

Series 4000 1/2 in. Stainless Steel Full Port Socket Weld CL800 Fire-Tite Ball Valve w/Xtreme Seats

  • Fast #
  • Part #J4DBTG3600XT2D
  • Item #7025670
  • Manufacturer Part #MA0129107
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Discontinued
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in OH

Product Details

Product Details

  • Robust engineering design
  • Self relieving seat technology
  • Patented stem seal technology
  • ISO compliant bonnet
  • Multiple end connections (threaded, socket weld, butt weld, custom)
  • High quality
  • Requires Certification

Documents

SPECIFICATION

Specifications

ASME:
ASME B16.34
ASTM:
ASTM A-193 Grade B8
Collection:
Series 4000
End Connection 1:
Socket Weld
End Connection 2:
Socket Weld
End Connections:
Socket Weld
ISO:
ISO 5211
Material:
Stainless Steel, Plastic
Material Type:
316, Xtreme
Pressure Class:
800#
Valve Body Material:
316 Stainless Steel
Valve Body Style:
3 piece
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Xtreme
Valve Size:
1/2 in
Valve Type:
Ball Valve
