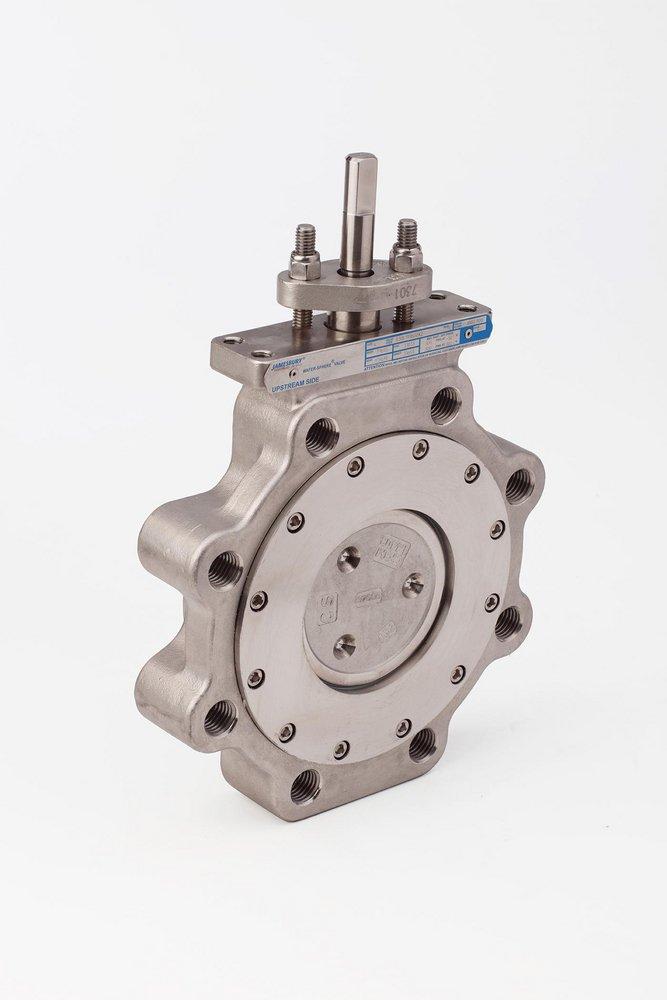

8 in. Carbon Steel 300# High Performance Lug Butterfly Valve w/ Xtreme seat
Jamesbury
Series 830 8 in. Carbon Steel 300# High Performance Lug Butterfly Valve w/ Xtreme seat
Points
Package Quantity Info:
Each: 1 Inner Pack: 1Purchase history
Jamesbury
Series 830
8 in. Carbon Steel 300# High Performance Lug Butterfly Valve w/ Xtreme seat
MA0023006
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
Specifications
- ANSI:
- ANSI B16.10, ANSI B16.34, ANSI B16.47, ANSI B16.5, ANSI B31.1, ANSI B31.3, ANSI 3000
- API:
- API 607, API 609
- ASME:
- ASME B16.10, ASME B16.34, ASME B16.47, ASME B16.5, ASME B31.1, ASME B31.3
- ASTM:
- ASTM A216 WCB
- Clean Bagged:
- No
- Collection:
- Series 830
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- IAPMO Listed:
- No
- ISO:
- ISO 10497-5:2004, ISO 9001-2000
- MSS:
- MSS SP-25, MSS SP-44, MSS SP-55, MSS SP-61, MSS SP-96
- Material:
- Carbon Steel, Stainless Steel
- Maximum Temperature:
- 500
- Minimum Temperature:
- 260
- NSF:
- NSF 61-G
- NSF Certified:
- Yes
- Pressure - Maximum:
- 30 psi
- Pressure Class:
- 300#
- Recommended Valve Application:
- Water
- UL Listed:
- No
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- Lug
- Valve Disc Material:
- 316 Stainless Steel
- Valve Operator:
- Lever Handle;Gear Operator
- Valve Seat Material:
- Xtreme
- Valve Size:
- 8 in
- Valve Type:
- Butterfly Valve
