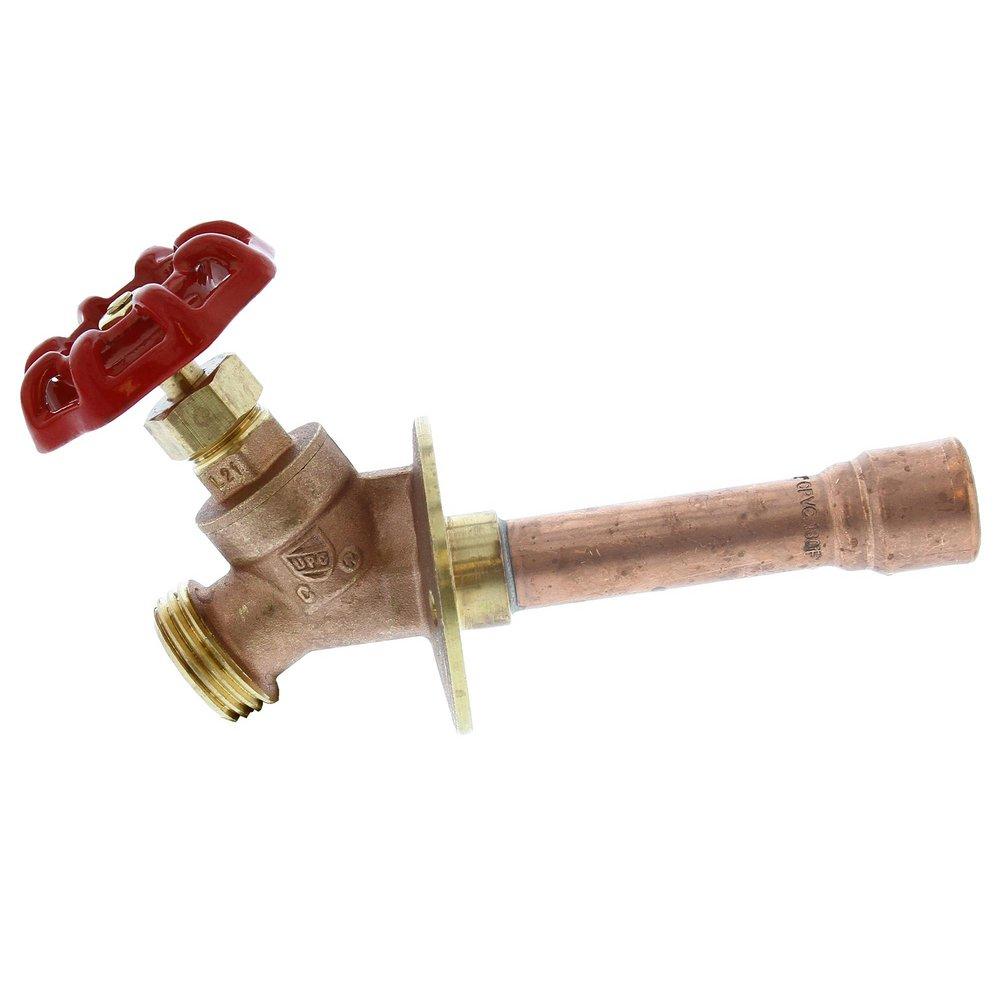

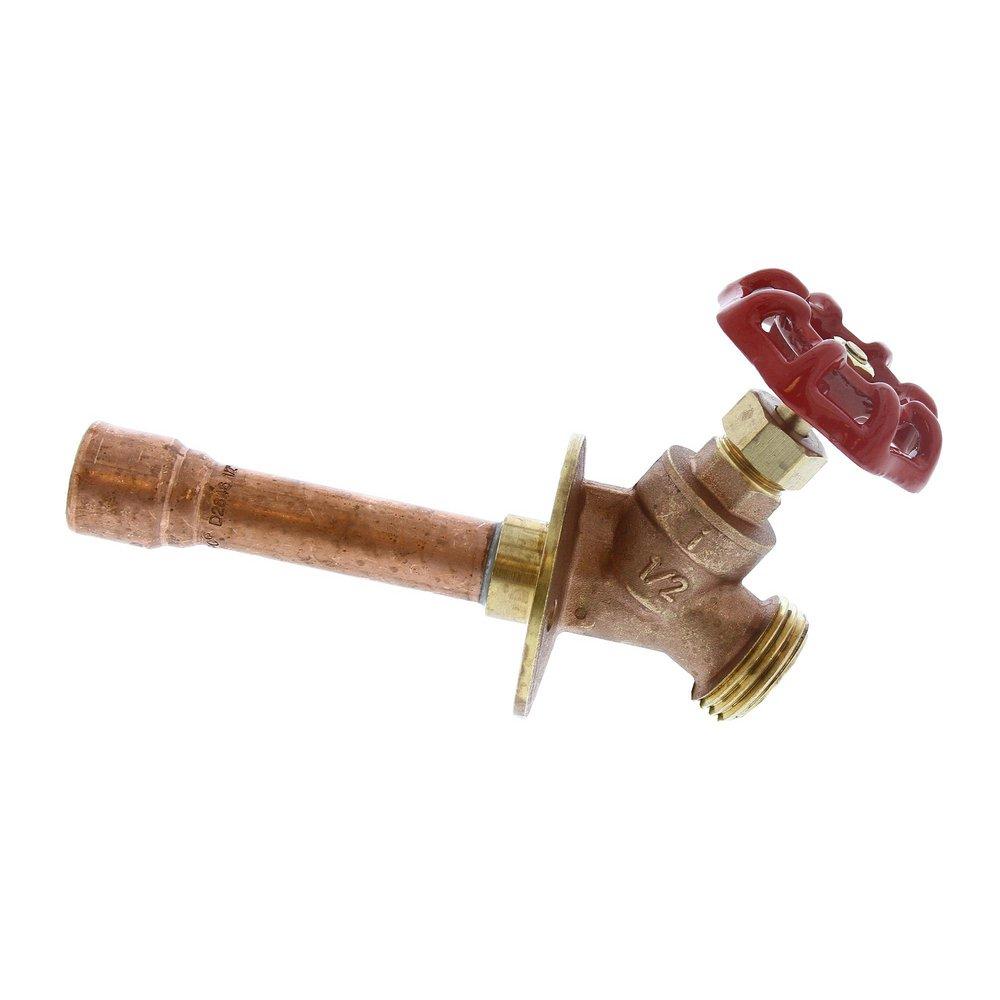

1/2 in. Sillcock with CPVC Connection, 3-5/16 in. Long
You last purchased this on
Jones Stephens
1/2 in. Sillcock with CPVC Connection, 3-5/16 in. Long
Purchase history
Jones Stephens
1/2 in. Sillcock with CPVC Connection, 3-5/16 in. Long
B59201
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
- Forged valve body
- Convenient CPVC socket connection
- Rugged brass sillcock connects directly to CPVC piping system
- Certified by IAPMO to NSF/ANSI 14-2012
- Certified by IAPMO to ASME A112.18.1-2018 / CSA B125.1-18
- Standard 3/4" garden hose connection
- 3-5/16" long extension for double thickness sills
Documents
Specifications
- ANSI:
- ANSI 61, ANSI 372
- ASME:
- ASME A112.18.1-2018
- Automatic Shut-Off:
- No
- BAA Compliant:
- No
- CARB OTC LEED Compliant:
- No
- Color Finish Category:
- Brass Tones
- Color Finish Name:
- Brass
- EPA Compliant:
- No
- ETL Listed:
- No
- End Connection 1:
- Solvent Weld
- End Connection 2:
- GHT
- End Connections:
- Solvent Weld x GHT
- Energy Star Compliant:
- No
- FM Approved:
- No
- Fits Pipe Size:
- 1/2 in
- Fitting Size 1:
- 1/2 in
- Fitting Sizes:
- 1/2 in
- GSA Approved:
- No
- Height:
- 2-1/2 in
- IAPMO Listed -:
- Yes
- Length:
- 7 in
- MA Approved -:
- Yes
- Material:
- Brass
- Maximum Temperature:
- 180
- NSF:
- NSF 14-2012
- NSF Certified:
- No
- Number of Handles:
- Single Handle
- PipeTubing Size:
- 1/2 in
- Pressure - Maximum:
- 100 psi
- Size:
- 1/2 in
- Supply Pipe Connection Size:
- 1/2 in
- Temperature Range:
- 32 to 180 Deg F
- UL Listed:
- No
- Valve Body Material:
- Brass
- Valve Size:
- 1/2 in
- Valve Type:
- Gate Valve
- Weight:
- 0.705479239 lb
- Width:
- 4-1/2 in
