1/2 in. Push On Ball Valve

Jones Stephens

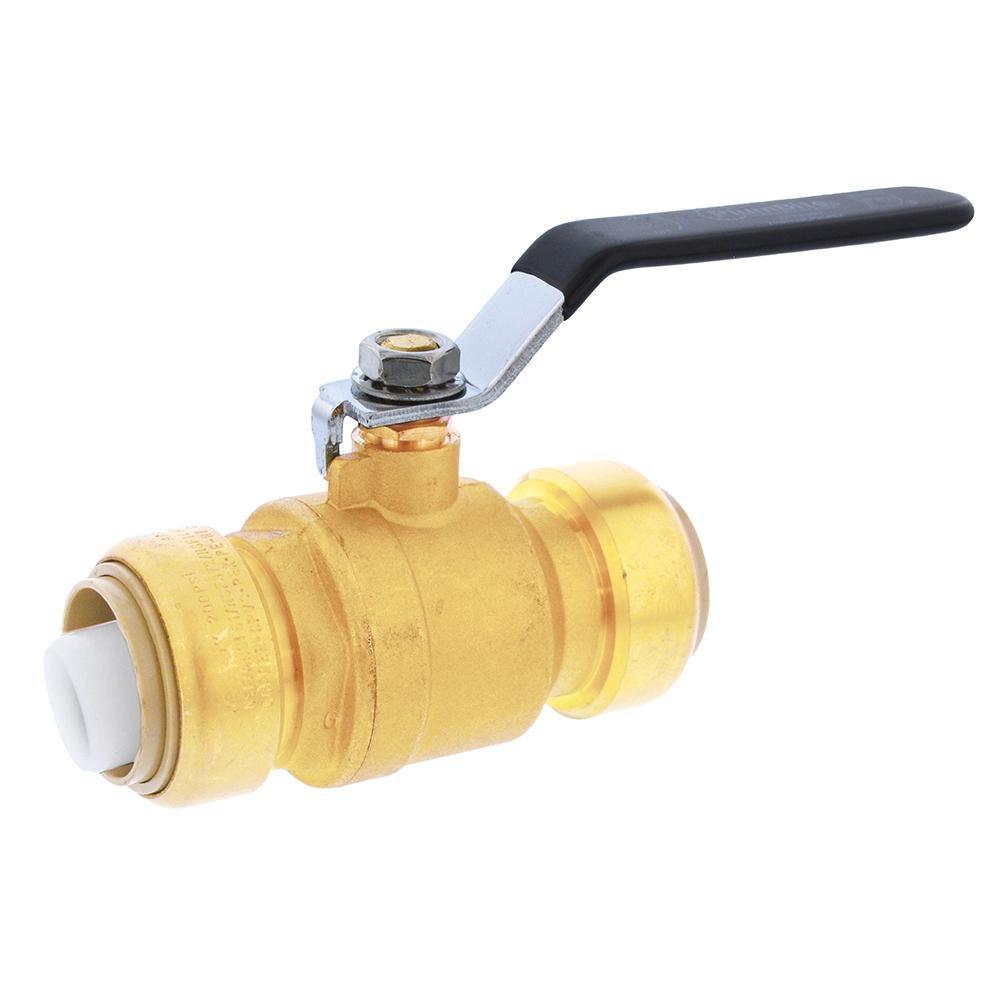

Plumbite® 1/2 in. Push On Ball Valve

  • Fast #
  • Part #JC76561LF
  • Item #5055980
  • Manufacturer Part #C76561LF
5 out of 5 Customer Rating
Brand image
Jones Stephens Rough Brass Brass Push On 200# Ball Valve
Jones Stephens Rough Brass Brass Push On 200# Ball Valve
null
Jones Stephens

Plumbite® 1/2 in. Push On Ball Valve

  • Fast #
  • Part #JC76561LF
  • Item #5055980
  • Manufacturer Part #C76561LF
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 10 Case: 100.00
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
  • No soldering, glue, heat or tools required to join the pipe
  • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
  • Maximum temperature of 180°F and maximum pressure of 200 PSI
  • Can be disassembled and re-used using the disassembly tool (sold separately)
  • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, IAPMO/ANSI Z1157-2014e1, UPC, cUPC by IAPMO
  • Lead Free
  • 2 year warranty
  • PlumBite fittings are designed and certified to join PEX tubing. In order to make an effective joint with PEX tube, the included tube liner must be used. Do not substitute any other manufacturer's liner
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 372-2022, ANSI 61-2021, ANSI 14-2010a, ANSI Z1157-2014e1
ASME:
ASSE 1061-2020
ASSE Standards:
ASSE 1061-2020
Clean Bagged:
No
Collection:
Plumbite®
End Connection 1:
Push
End Connection 2:
Push
End Connections:
Push
FM Approved:
No
Fire Suppression System Rated:
No
Height:
2-8/25 in
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
5-61/100 in
MA Approved:
Yes
Material:
Brass
Maximum Temperature:
180
NSF:
NSF 372-2022
NSF Certified:
No
Origin:
Global
Pressure - Maximum:
200 psi
Pressure Class:
200#
Proposition 65:
WARNING: This product can expose you to chemicals including lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Potable Water
UL Listed:
No
UPC:
717510170337
Valve Body Material:
Brass
Valve Body Style:
Ball
Valve Operator:
Lever Handle
Valve Size:
3/4 in
Valve Type:
Ball Valve
Weight:
.45 lb
Width:
1-1/10 in
