1-1/2 in. Brass Push 90° Elbow

Jones Stephens

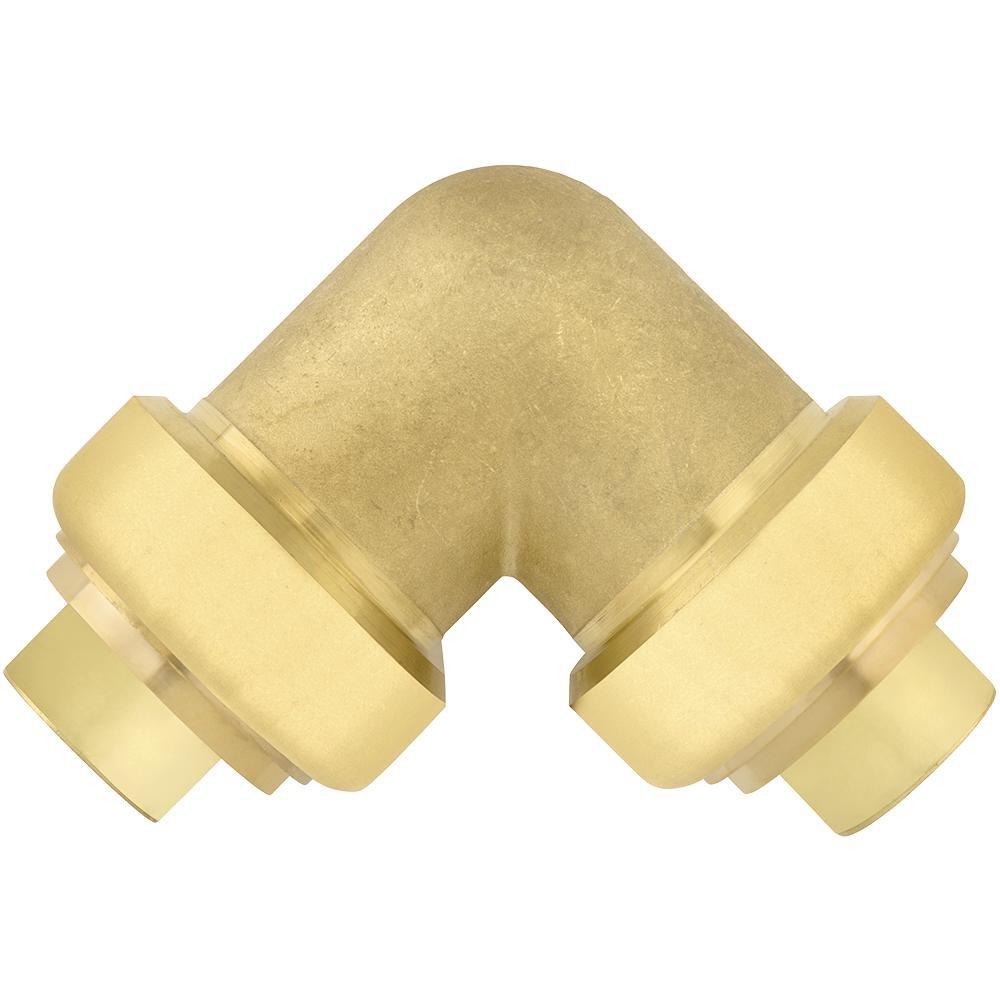

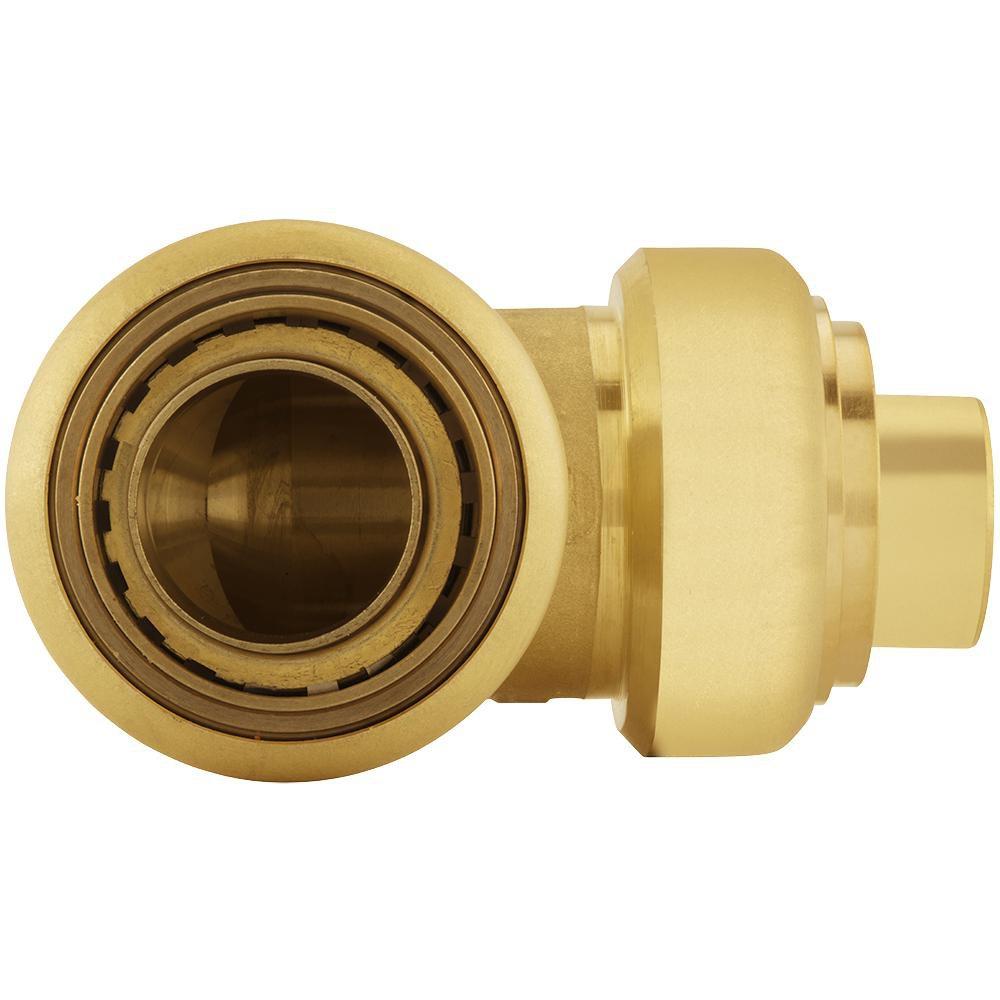

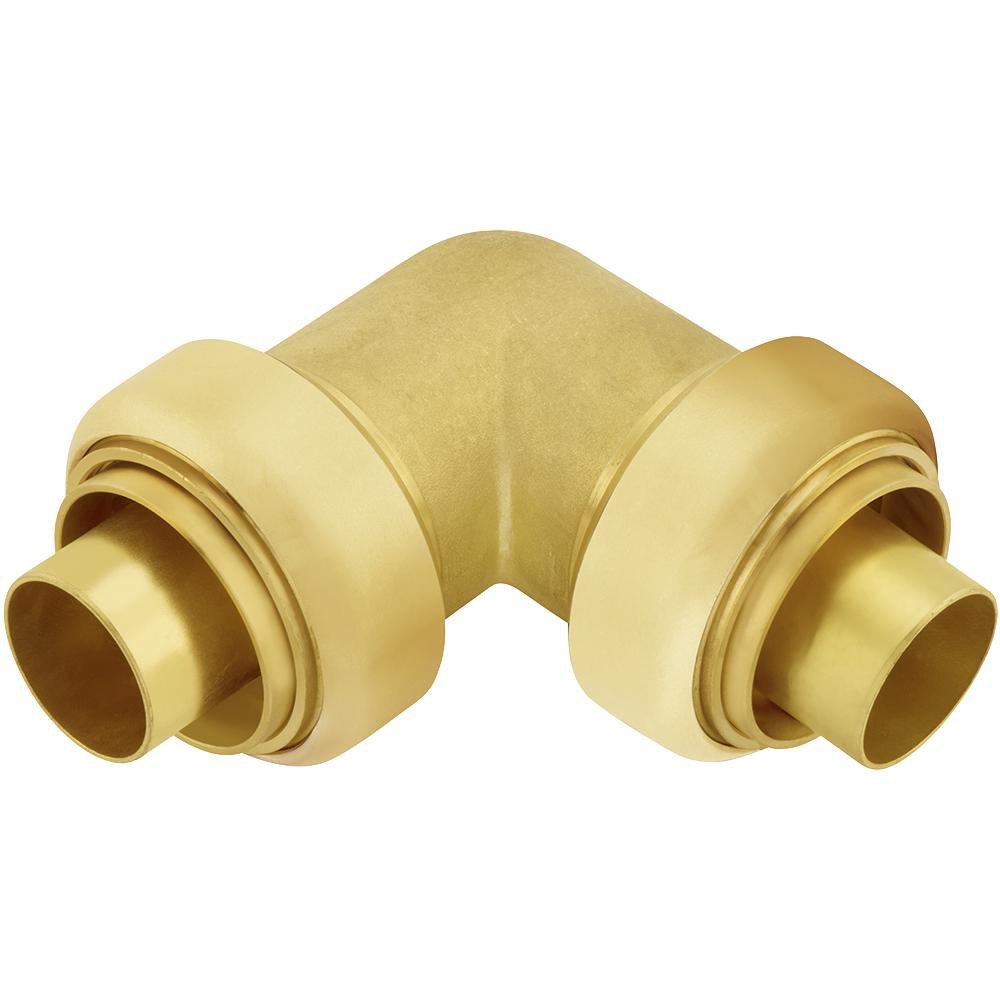

Plumbite® 1-1/2 in. Brass Push 90° Elbow

Brand image
Jones Stephens

Plumbite® 1-1/2 in. Brass Push 90° Elbow

  • Part #JC77429LF
  • Item #7793013
  • Manufacturer Part #C77429LF
3.7 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 5 CA: 20
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up:
  • Shipping: Available for immediate shipment

All Sizes

Product Details

  • No soldering, glue, heat or tools required to join the pipe
  • Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
  • Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
  • 25 year warranty
  • Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, ASSE 1061, UPC, cUPC by IAPMO
  • Lead Free
  • Can be disassembled and re-used using the disassembly tool (sold separately)
  • Maximum temperature of 180°F and maximum pressure of 200 PSI
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372-2016
ASSE Standards:
ASSE 1061-2020
Application:
Potable Water
Automatic Shut-Off:
No
BAA Compliant:
No
CARB OTC LEED Compliant:
No
Clean Bagged:
No
Collection:
Plumbite®
Color Finish Category:
Brass Tones
Color Finish Name:
Rough Brass
EPA Compliant:
No
ETL Listed:
No
Elbow Degree:
90 DD
End Connection 1:
Push
End Connection 2:
Push
End Connections:
Push
Energy Star Compliant:
No
FM Approved:
No
Fits Pipe Size:
1-1/2 in
Fitting Size 1:
1-1/2 in
Fitting Size 2:
1-1/2 in
Fitting Sizes:
1-1/2 in
Fitting Type:
Elbow
GSA Approved:
No
Height:
3-81496063/100000000 in
IAPMO Listed -:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
8-583/1000 in
MA Approved -:
Yes
Material:
Brass
Maximum Temperature:
180
NSF:
NSF 372-2022
NSF Certified:
No
Origin:
Global
Pressure - Maximum:
200 psi
Product Type:
Push On
Size:
1-1/2 in
Type:
Push On
UL Listed:
No
Valve Operator:
Lever Handle
WaterSense Labeled:
No
Weight:
2.04907999999999 lb
Width:
2-6003937/12500000 in
