3/4 in. Brass Push-to-Connect 200# Ball Valve
Jones Stephens

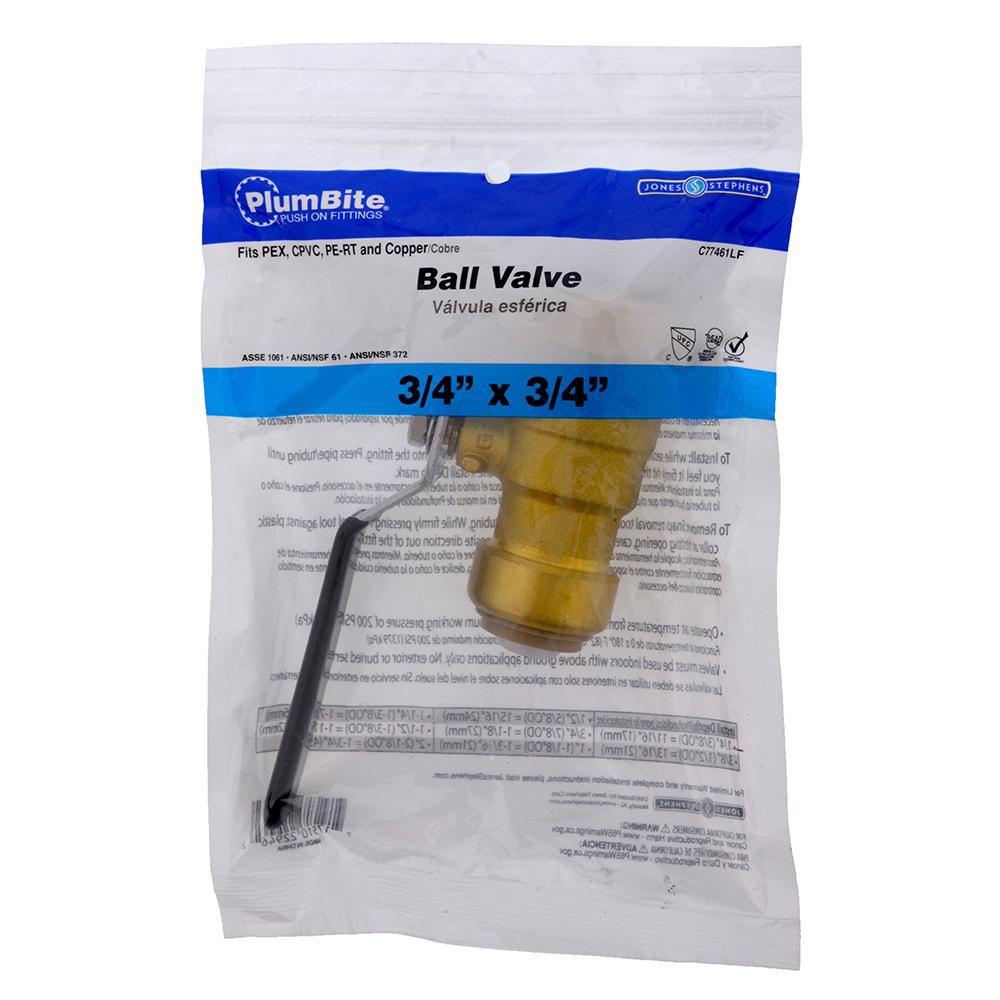

Plumbite® 3/4 in. Brass Push-to-Connect 200# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 100Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Jones Stephens
Plumbite®
3/4 in. Brass Push-to-Connect 200# Ball Valve
C77461LF
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
- No soldering, glue, heat or tools required to join the pipe
- Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
- Maximum temperature of 180°F and maximum pressure of 200 PSI
- Can be disassembled and re-used using the disassembly tool (sold separately)
- Standards/Certifications: NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, NSF/ANSI 14, IAPMO/ANSI Z1157-2014e1, UPC, cUPC by IAPMO
- Lead Free
- 2 year warranty
- Individually packaged
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Push
End Connection 2
Push
End Connections
Push
Height
2-63/100 in
Length
5-41/50 in
Pressure Class
200#
Pressure - Maximum
200 psi
Valve Size
3/4 in
Weight
.65 lb
Width
1-2/5 in
Characteristics & Features
Clean Bagged
No
Collection
Plumbite®
Handle Material
Chrome Plated Steel
Material
Brass
Valve Body Material
Brass
Valve Operator
Lever Handle
Valve Seat Material
PTFE
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
180
Warranty & Product Information
ANSI
ANSI 372-2022, ANSI 61-2021, ANSI 14-2010a, ANSI Z1157-2014e1
ASSE Standards
ASSE 1061
BAA Compliant
No
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
NSF
NSF 372-2022
NSF Certified
No
Origin
Global
Recommended Valve Application
Potable Water
UL Listed
No
UPC
717510229462
