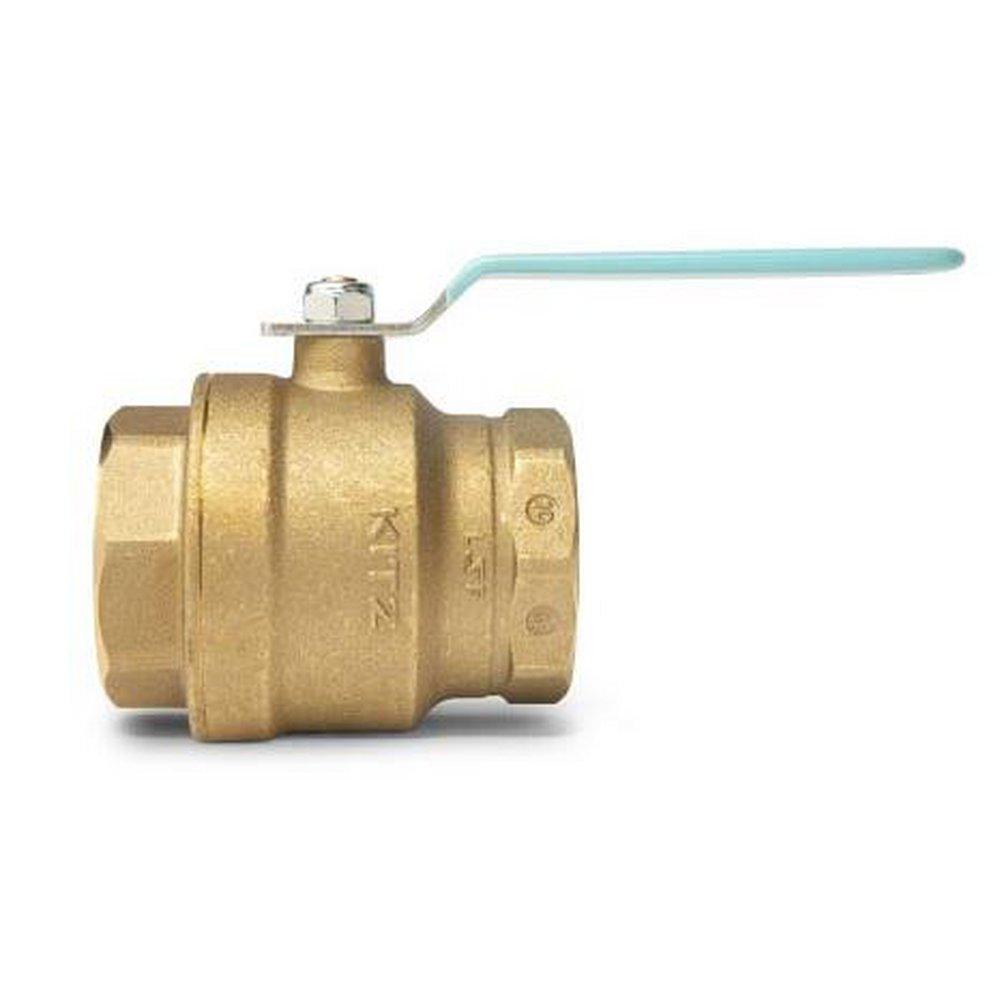

1/2 in. Forged Brass Full Port FNPT 600# Ball Valve
Kitz
1/2 in. Forged Brass Full Port FNPT 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Kitz
1/2 in. Forged Brass Full Port FNPT 600# Ball Valve
68-012
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- 2 piece body
- Full port
- Blow-out proof stem
- Chrome plated ball
- PTFE seats and seals
Documents
Specifications
- ANSI:
- ANSI B1.20.1
- ASME:
- ASME B16.33, ASME B16.44
- ASTM:
- ASTM B-16, ASTM B-283 C37700, ASTM B-584 C84400
- Clean Bagged:
- No
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- FM Approved:
- Yes
- Fire Suppression System Rated:
- No
- IAPMO Listed:
- No
- ISO:
- ISO 5211
- Length:
- 2-9/100 in
- MA Approved:
- No
- MSS:
- MSS SP-110
- Material:
- Forged Brass
- Maximum Temperature:
- 366
- NSF Certified:
- No
- Pressure - High:
- 150, 600
- Pressure Class:
- 600#
- Recommended Valve Application:
- Gas, Oil, Water
- UL Listed:
- UL 125/UL 258/UL 842/UL 1769
- UPC:
- 747066004930
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 52 lb
- cUPC Certified:
- No
